Summary of Contents for Capital Weld Cleaners CW110

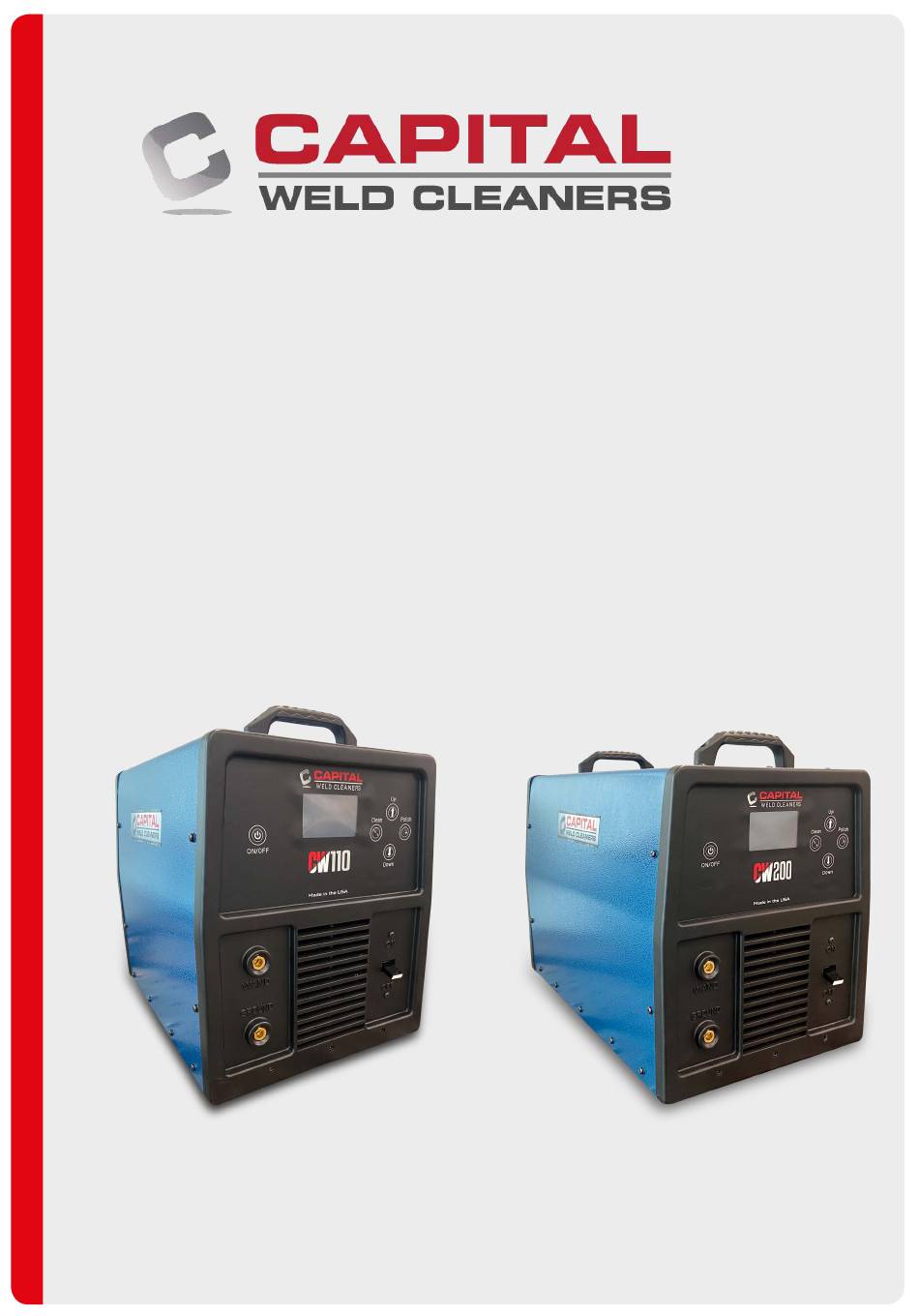

- Page 1 Capital Weld Cleaners Operating instructions www.capitalweldcleaners.com (480) 967-0016 Models: CW110 CW200...
-
Page 2: Safety Notices
Safety Notices Explanation of DANGER! safety notices Indicates immediate danger. ▶ If not avoided, death or serious injury will result. WARNING! Indicates a potentially hazardous situation. ▶ If not avoided, death or serious injury may result. CAUTION! Indicates a situation where damage or injury could occur. ▶... - Page 3 The machine is designed to be used in industrial and workshop environ- ments. The manufacturer shall not be liable for any damage resulting from use of the machine in residential premises. Likewise Capital Weld Cleaners will accept no liability for defective or faulty work results. Environmental...
- Page 4 Relative humidity: up to 50% at 40 °C (104 °F) up to 90% at 20 °C (68 °F) The surrounding air must be free from dust, acids, corrosive gases or sub- stances, etc. Can be used at altitudes of up to 2000 m (6561 ft. 8.16 in.) Obligations of the The operating company undertakes to allow only such people to work with operating com-...
- Page 5 Anybody working on the workpiece during cleaning must wear suitable protective clothing with the following characteristics: resistant against acids and chemicals isolating and dry Protective clothing” also includes: wearing a pair of appropriate regulation goggles (with sideguards) wearing stout footwear that will also insulate even in wet conditions wearing protective gloves (hand protection), impermeable, resistant against acids and chemicals wearing protective apron (e.g.
- Page 6 After contact with eyes rinse eyes several minutes under running water with eyelid open (eye shower) and see a doctor. Storage / safekeeping Use only containers especially approved for cleaning solutions Keep container closed tightly Don’t store together with alkali (lyes) and metals Store in a cool and dry place Provide for acid-proof floor Keep under lock and key and out the reach of children...
- Page 7 For safety inspections, follow the appropriate national and international standards and directives. Further details on safety inspection and calibration can be obtained from Capital Weld Cleaners. They will provide you on request with any documents you may require.
- Page 8 Safety precau- Only operate the machine if all of its protective features are fully functional. tions in normal If any of the protective features are not fully functional, this endangers: operation the life and well-being of the operator or other persons the equipment and other tangible assets belonging to the owner/oper- ator efficient working with the equipment.
-
Page 9: Technical Data
Technical data CW110 Unit suitable for use in confined spaces Mains voltage -15%/+10% ~110 V / 50-60 Hz 20 A slow Main fuse 5 - 110A Output current Output voltage 2 - 12 V 1320 W Output power Open-circuit voltage... -
Page 10: Controls, Connections And Mechanical Components
Controls, connections and mechanical components Safety WARNING! Danger from incorrect operation. Possible serious injury and damage to property. ▶ Do not use the functions described here until you have fully read and understood all of the Operating Instructions for the system components, in particular the safety rules! Button Controls: ON/OFF:... - Page 11 Operating Instructions General Setup WARNING! Instructions Danger from incorrect operation. Operating the equipment incorrectly can cause serious injury and damage. ▶ Do not use the functions described here until you have read and completely under- stood all of the following documents: ▶...
- Page 12 Cleaning - Polishing Operation • Connect power cord to properly sized power source. • Connect ground cable to the bottom port on the front of the machine, twist the connector clockwise until secure. • Connect wand cable to the upper port on the front of the machine, twist the connector clockwise until secure.
- Page 13 Removal of Weld cleaning solution and metal residues lectrochemical cleaning leaves electrolyte and metal residues on the workpiece surface. Such residues may cause deposits on the workpiece and affect corrosion resistance. • After weld cleaning is complete, Rinse or wipe off excess solution off the workpiece.
-
Page 14: Care, Maintenance And Disposal
Care, maintenance and disposal General remarks Under normal operating conditions the Weld Cleaner requires only a minimum of care and maintenance. However, it is important to follow some points to ensure the operationality of the machine for many years. WARNING! Danger from electric current.
