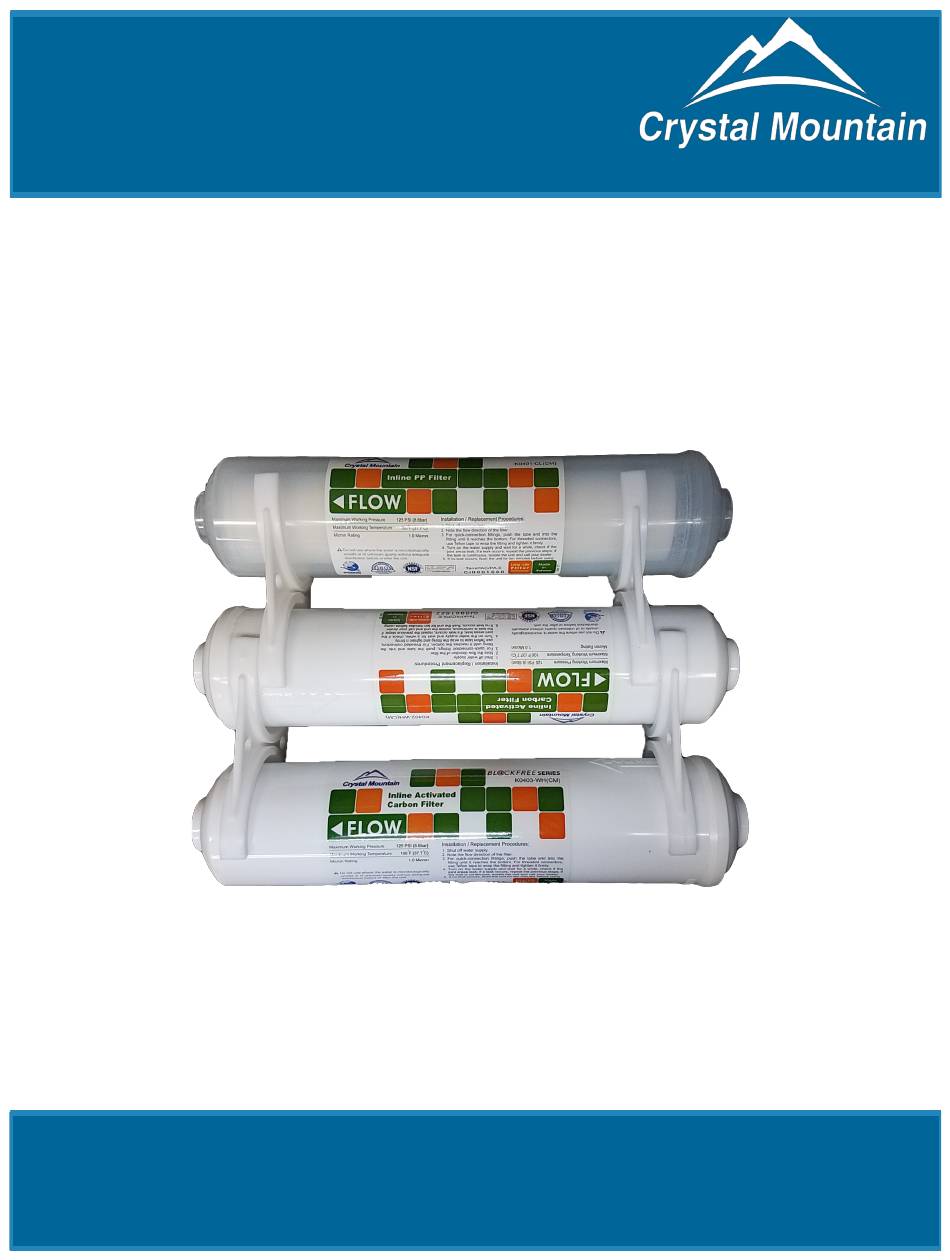

- Page 1 Installation Instructions Three stage Filtration System Part# FIL-W300005 Form 1611003 Crystal Mountain Products, Inc · 1000H Taylor Station Rd · Gahanna OH 43230 614.454.1618 · www.crystalcoolers.com © 2016 Crystal Mountain Products Inc.
- Page 2 Your FIL-W300005 kit includes a Three Stage Filtration System with installation hardware. Crystal Mountain Products Inc. is not responsible for any damage that may occur during the installation of this kit. These instructions are for informational purposes only and the kit should only be installed by a qualified technician.
- Page 3 Installation Instructions: Three Stage Filtration System FIL-W300005 1. Unpack both the Crystal Pro Water Dispenser and the filtration kit. Remove the filter access door on the Crystal Pro by pulling on the release handle located just below the drip tray.
- Page 4 Installation Instructions: Three Stage Filtration System FIL-W300005 3. Assemble the elbow fittings included with your kit. Be careful not to over tighten these fittings. Note that the pre-filter and the post carbon filter fittings are 90⁰ from each other as shown below. This will help to prevent side loading on the fitting during the product water connection step of these instructions.
- Page 5 Installation Instructions: Three Stage Filtration System FIL-W300005 5. After all tubing, fittings, connections, and flow directions are verified on the filter kit, inspect for damage before attaching the product water tubing to the filter kit as shown below. Be sure to follow the inlet and outlet direction as outlined in these instructions. Install filter set to the filter clips inside the Crystal Pro as shown below.
- Page 6 Mountain assumes no warranty liability in connection with the Reverse Osmosis or Filtration system other than specified herein. Crystal Mountain will not be liable for any consequential damages of any kind or na- ture due to use of Crystal Mountain products.
