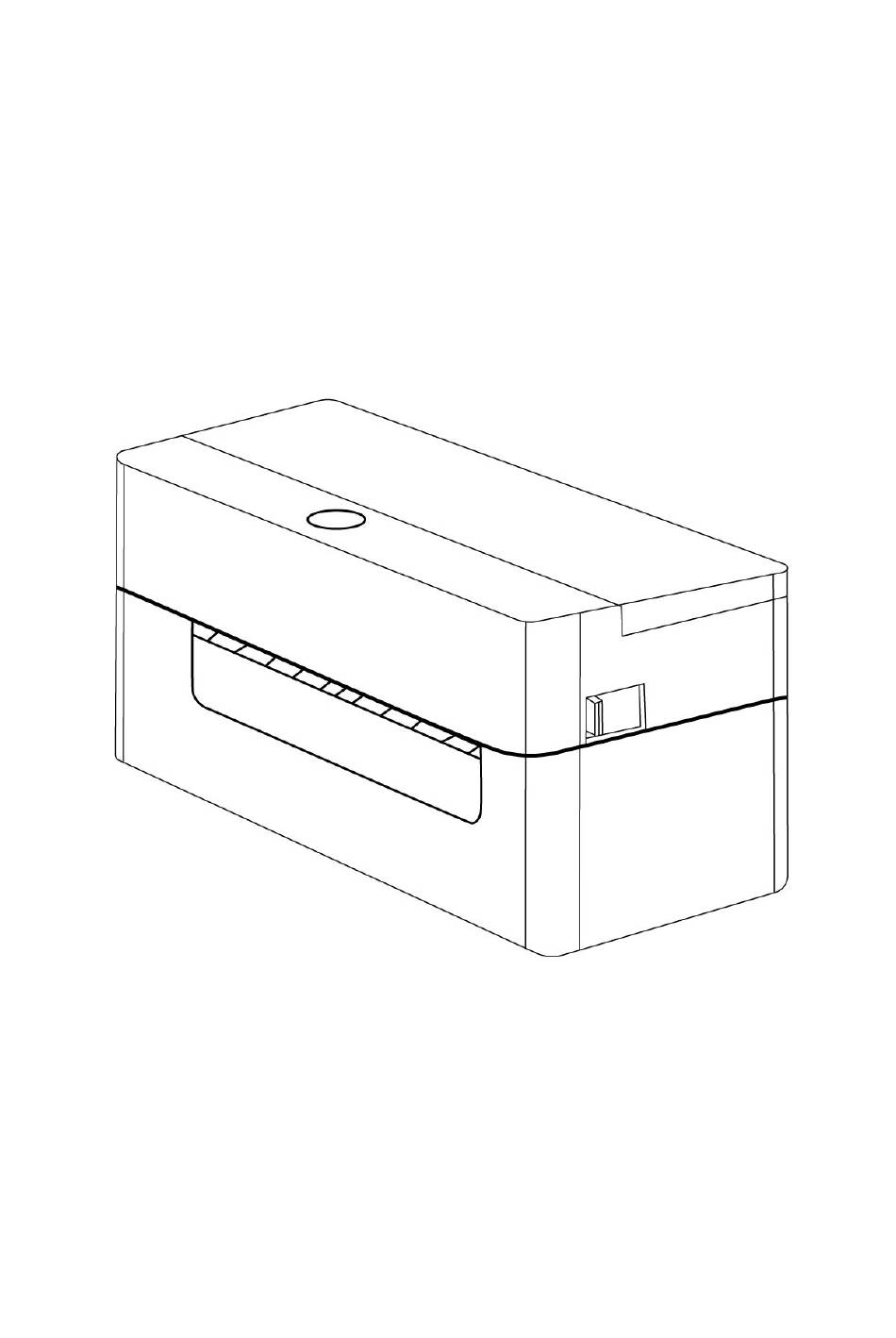

- Page 1 TECOR TR-D465E Desktop Thermal Printer User Guide...
-
Page 2: Printer Accessories
Introduction TR-D465E is a small, highly efficient desktop printer with a 300dpi direct thermal head with the capability of handling 108mm (4.25") wide media. The default speed is set to 152 mm/s with a smart media size detection feature, so you don’t need to manually set the media size when you loading a different media. -
Page 3: General Specifications
1.2. General Specifications Printer Model TR-D465E Printing Features Resolution 300 DPI Printing method Direct Thermal Max.print speed 152 mm (6") / s Max.print width 108mm (4.25") Max.print length 1778 mm (70") Media Media type Continuous, gap, black mark, fan-fold and punched hole Media width 25.4 mm ~ 116 mm... - Page 4 Printer Model TR-D465E Printing Features Resolution 300 DPI Printing method Direct Thermal Max.print speed 152 mm (6") / s Reliability Print head life 30 km Software Driver Windows/Linux/Mac Windows/Linux/iOS Power supply Input：AC 100-240V,1.8A, 50-60Hz Output：DC 24V, 2.5A, 60W Environmental Conditions Operation 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing...
-
Page 5: Installation
Installation 2.1 Printer Setup 1. Please ensure the printer is on a flat surface and the power switch is off. 2. Plug the power cord into the ower jack connector at the rear of the printer then plus the power plug into an outlet. 2.2 Loading Label 1. - Page 6 2.3 Single label loading In ready status, put a single label into the inlet (back of the printer), the label will then auto-load.
-
Page 7: Feeding Paper
LED and FEED key 3.1 LED status indicator light Color Description Blue Ready for printing Flickering Blue Downloading data or printing paused. Purple Cleaning data Cover is opened Flickering Red Error. no paper, jam or other errors. 3.2 Functions of the FEED key 1. -
Page 8: Boot Options
3.3 Boot options There are four boot options while turning on the printer. Light color Blue Purple flickering flickering flickering Blue Function Purple Blue 1. Run gap detection Keep pressing FEED release key while turning on the power 2. Run gap detection Keep pressing FEED key while release then print self test... -
Page 9: Dump Mode
Dump mode After the self-test is printed, the printer system enters the debugging mode. In the debugging mode, all the volume labels will be printed as machine code. The ASCII strings on the left are the data received by the system. The data on the right are printed from the strings on the left, in hexadecimal values. - Page 10 3.3.3 Initialise the printer. Initialise will recover the default settings and remove user files in DRAM. Please run it carefully. Default settings in the below table Setting Default value Speed 152.0 mm/sec (6 ips) (203DPI) Density Paper Width 3” (76 mm) Paper High 5.11”...
- Page 11 Printer Diagnostic Tool Diagnostic Tool is an easy-to-use window-type utility program that allows you to check the current status and settings of the printer, download graphic files, programs, font files, etc., and complete firmware updates. It also supports creating and downloading of dot-matrix fonts, transmission of commands or files and so on.
-
Page 12: Printer Settings
4.2 Printer settings 1. Select the connection interface between your computer and the printer. The default communication interface of this printer diagnostic tool program USB, so if the computer is connected through USB cable for transmission, no changes need to be made to the settings 2. -
Page 13: Maintenance And Adjustment
Maintenance and Adjustment 5.1 Thermal Print Head Cleaning Unclear printouts may be caused by dusty print head or label liner adhesive. Therefore when printing, it’s necessary to keep the top cover closed to ensure high print quality and prolonged print head life. Print head cleaning instructions are as follows: 1. -
Page 14: Troubleshooting
Troubleshooting Problem Possible cause Solution The power * The AC socket plug and * Check the power connector, and indicator is off the power supply plug are make sure that the AC socket and the not properly connected to power supply plug are properly the socket of the printer connected to the printer *The printer power is not... - Page 15 Problem Possible cause Solution The print * The label sensor * Re-calibrate the label sensor position is not setting is incorrect * Set the correct roll label size and roll label correct when * The label size setting gap size printing small is incorrect * If BarTender software is used use the below...
Need help?
Do you have a question about the TR-D465E and is the answer not in the manual?
Questions and answers

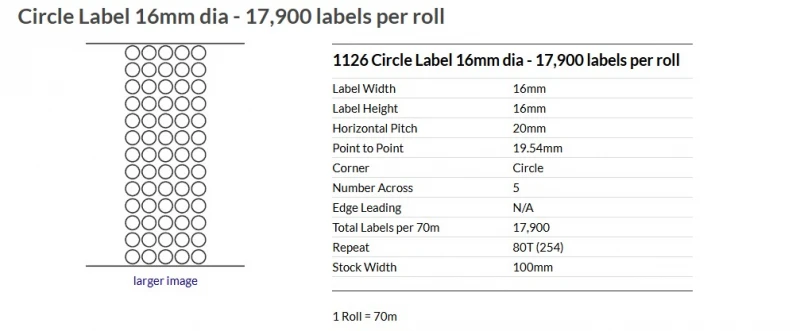

Hi. Is the TR-465 capable of printing to circles. The circles are 16mm in diameter and 5 across. I have send a snapshot of the details. I send a thank you in advance if you can answer this for me please.
The TECOR TR-D465E can print labels with a length between 10 mm and 1778 mm. There is no specific restriction mentioned about label shapes like circles. As long as the labels are properly spaced and aligned for the sensors (gap sensor, black mark sensor), and the print area fits within the printer's specifications, it should be able to print on circular labels with a 16 mm diameter and 5 labels across. Proper label setup and sensor adjustment would be necessary.
This answer is automatically generated
