Summary of Contents for Sea Catch TR3

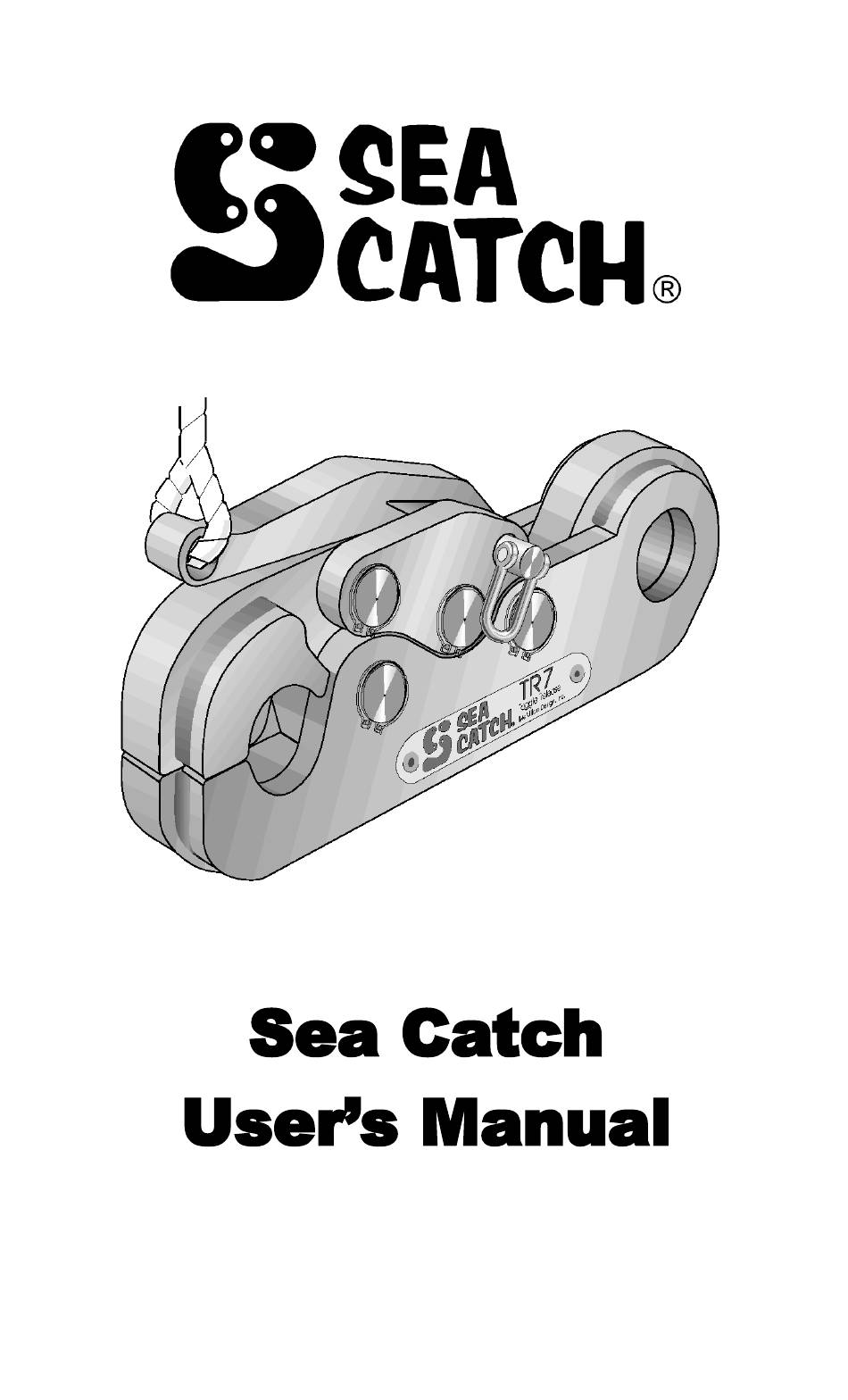

- Page 1 Sea Catch User’s Manual Before operating the Sea Catch device, please carefully read and understand this document for your safety and the safety of others. September 23, 2015...
- Page 2 Sea Catch: General Specifications Mod. Shackle SW Load Break Ld. Weight Size (in) in(mm) lb (sh ton) lb (sh ton) lb (kg) 2.85 1.96 1,302 6,510 (11.93) (7.87) (10.41) (73.39) (4,57) (9.39) (49.78) (.65) (3.2) (.14) 7/16 3.13 3,323 16,618 (19.05)
- Page 3 The shackle is now held firmly locked even with no load on the device. The hitch pin can be reinserted to prevent inadvertent release. The Sea Catch is now ready to be loaded. Once the hitch pin is removed, the Sea Catch is armed and ready to be released.
- Page 4 ● Do not side load. Side loading may cause permanent damage to the unit. While in its loaded position, do not obstruct the Sea Catch from following the ● line of the load. Misalignment may prevent release due to binding.
- Page 5 Additional User Tips Sea Catch Hitch Pin Securement To prevent the loss of the hitch pin, two methods of securing it to the release line are suggested: FIG. 1. The first option is to tie the hitch pin to the outer end of the release line.
- Page 6 Sea Catch Toggle Release Alternative Configurations. Sea Catch RAM units Standard models may be fitted with hydraulic cylinders and fired hydraulically. Above the cylinder is a plunger which activates the release from below. Cylinders are rated at 5,000 psi and provide larger capacity units the necessary means for activation.
- Page 7 Sea Catch TR7S Skiff Release A standard TR7 is securely mounted to a stainless steel dish. This stable base allows the unit to function dependably above seine gear during purse seine skiff release applications. Low kick-back, quiet operation, and a safe hitch pin securement are key elements for skiff...
- Page 8 MD, it is the obligation of the owner and/or the equipment operator to carefully read and understand the Sea Catch User’s Manual and determine the correct and safe selection and settings and conditions of use of the equipment and products.
