S45-1755P
P/N:
Best Practice
Termination Instructions
Simply45™ ProSeries Pass Through
Shielded RJ45 Modular Plugs
(patent pending)

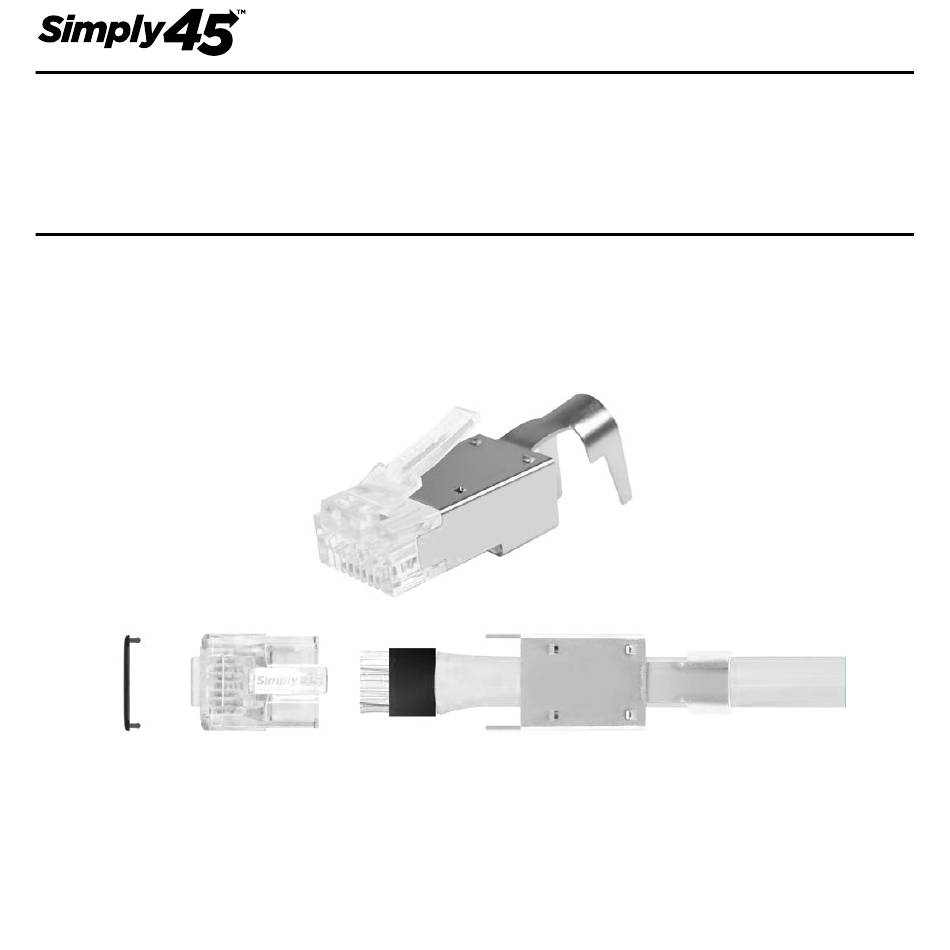

Congratulations on purchasing the Simply45™ S45-1755P
ProSeries Pass Through Shielded External Ground RJ45 Modular
Plugs for 10G Shielded and other large diameter shielded
LAN cables. Our ProSeries Pass Through RJ45 plugs include the
uniquely designed and patent pending Cap45™.
Advertisement
Table of Contents
Summary of Contents for Simply45 Pro Series
- Page 1 Simply45™ ProSeries Pass Through Shielded RJ45 Modular Plugs (patent pending) Congratulations on purchasing the Simply45™ S45-1755P ProSeries Pass Through Shielded External Ground RJ45 Modular Plugs for 10G Shielded and other large diameter shielded LAN cables. Our ProSeries Pass Through RJ45 plugs include the...
- Page 2 Trim all cable shielding (AL foil, metal braid) back to the cable jacket. We recommend using the Simply45 5” Angled Flush Cutter (S45-801). Do not cut off the drain wire. Fold the drain wire straight back about 1” (2.5cm) over the cable jacket. If there is a center spline/pair separator cut it off as close to the jacket as possible without nicking the wire conductors.
- Page 3 GR BL STEP 4 Untwist and straighten the wire conductors. We recommend using the Simply45 Adjustable LAN Cable Stripper (S45-S01BL/YL) that has a wire straightener comb on the top. Next, align the wires in the correct alignment pattern (Type A or B).
- Page 4 STEP 7 STEP 8 Then insert the 4 solid wires. Next, using the S45-801 Flush Cutter, trim the wires flush to the load bar but leave at least 1”(2.5cm) of wire. fig. 1 fig. 2 STEP 9 Insert the cable with the BarS45 into the plug (fig 1). Then push the wires to come out through the front the plug as shown above (fig.
- Page 5 STEP 11 STEP 12 Insert the loaded plug into the Simply45 Compress the crimper handles all the Heavy Duty RJ45 Crimp Tool (S45-C100/ way down with one swift and firm S45-C101).
- Page 6 2 holes on the front of the plug. Push the posts into the plug until the Cap45 is snug to the plug body. You can view these instructions online and learn more Best Practices at www.simply45.com Simply45™, Cap45™, and BarS45™ are trademarks of Simply45 LLC © All rights reserved.
