REDZ KMK 118 Instructions Manual

KMK
118

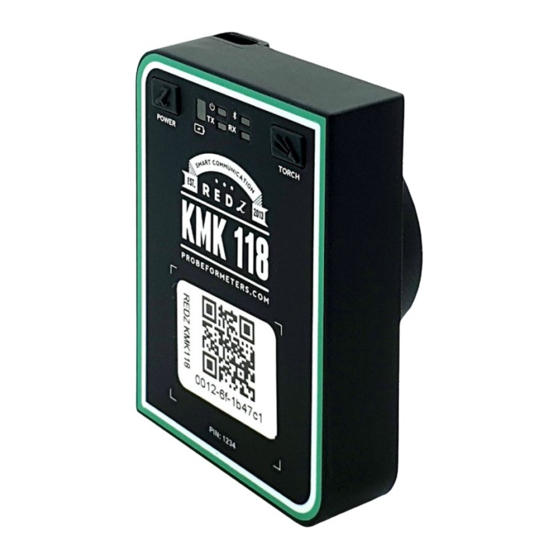

REDZ KMK118 optical probe is designed in
IEC 62056-21 standard and it is compatible with
all brands and types of IEC meters. The probe has
wireless Bluetooth connection thus it can easily
be used with any Android or Windows based
device with Bluetooth connection support. This is
a smart Bluetooth optical probe that can detect
IEC62056-21 or DLMS / COSEM protocol and
makes baud changeovers automatically. Thus it
is possible to use with software that works with
existing cable versions of probes and there will
be no additional need for integration.
It also supports different operating modes such
as command mode and firmware can be changed
easily over Bluetooth.
INFO@PROBEFORMETERS.COM
PROBEFORMETERS.COM
S M A R T C O M M U N I C A T I O N
BLUETOOTH
OPTICAL PROBE
SMART WIRELESS
AUTO PROTOCOLS
DETECTION PROBE
MECHANICAL SPECIFICATIONS
Diameter: 32 mm
Width: ~ 40 mm
Height: ~ 55 mm
Depth: ~ 21 mm
Magnetic Force: N38
Torch LED: 3 mm White LED
PROBE SPECIFICATIONS
IEC 62056-21
Standard:
(former IEC 1107)
Data Communication
Max 38400 baud
Speed:
BLUETOOTH SPECIFICATIONS
Ver. 2.0 + EDR compliant,
Standard:
Max. 4 dBm (Class2)
• IEC 62056-21 Auto Detection,
• DLMS/Cosem Auto Detection,
• 9600 baud 8N1 fixed,
Operating Modes: • Command mode, etc. Operating
modes can be changed instantly
by easily upload firmware over
Bluetooth connection
~ 10 hours (more than 2200
Operating Hours:
nonstop readings)
Body and Back
ABS
Cover Material:
Transparent Parts: Transparent Poly Carbonate
Weight: ~ 70 gr
TORCH FEATURE
3,3 V (Rechargeable battery
Operating Voltage:
powered through micro USB)
Wavelength: ~ 900 nm
Programmatically changeable
Receiver Sensitivity:
on Command Mode
LEDs Charge, Power, BT Link, TX, RX
600 mAh rechargeable
battery powered. Battery can
Battery:
be charged over Micro USB
connector
Operating
Max 15 meters
Distance:
