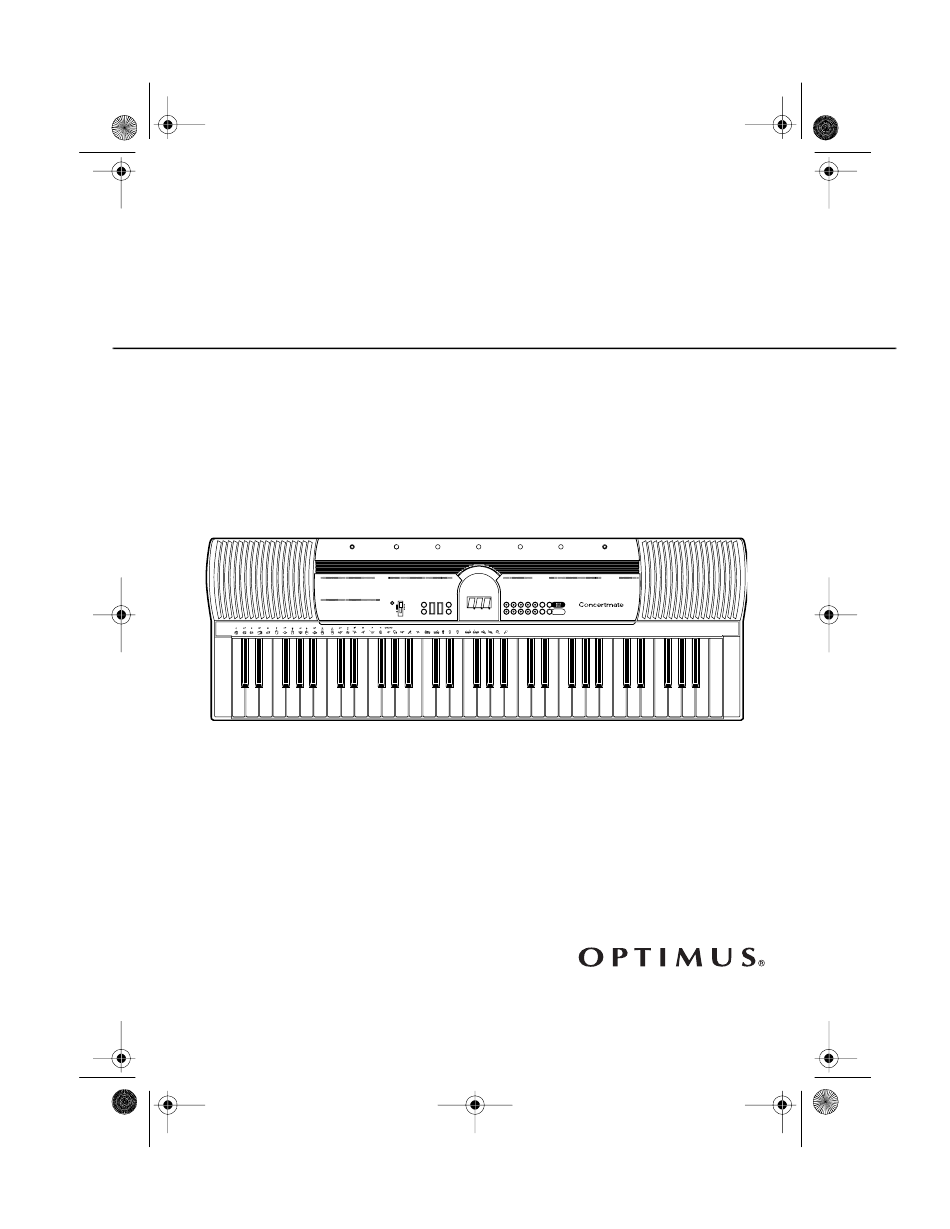

42-4032.fm Page 1 Wednesday, August 11, 1999 4:45 PM
OWNER'S MANUAL
Please read before using this equipment.
Great user manuals database on
Portable Electronic Keyboard
100 SOUNDS
PIANO
ORGAN
GUITAR/BASS
STRINGS/ENSEMBLE
BRASS
REED/PIPE
SYNTH-SOUND 1
00 PIANO 1
10 ELEC ORGAN 1
20 GUT GUITAR
30 VIOLIN
40 TRUMPET
50 SOPRANO SAX
60 SYNTH-LEAD 1
01 PIANO 2
11 ELEC ORGAN 2
21 ACOUS GUITAR
31 CELLO
41 TUBA
51 ALTO SAX
61 SYNTH-LEAD 2
02 HONKY-TONK
12 ELEC ORGAN 3
22 JAZZ GUITAR
32 HARP
42 BRASS SECTION
52 TENOR SAX
62 SYNTH-LEAD 3
03 STUDIO PIANO
13 ELEC ORGAN 4
23 ELEC GUITAR
33 STRINGS 1
43 FRENCH HORN 1
53 OBOE
63 SYNTH-CALLIOPE
04 ELEC PIANO 1
14 CHURCH ORGAN
24 MUTE GUITAR
34 STRINGS 2
44 FRENCH HORN 2
54 CLARINET
64 SYNTH-PAD 1
05 ELEC PIANO 2
15 PIPE ORGAN
25 DIST GUITAR
35 STRINGS 3
45 BRASS 1
55 PICCOLO
65 SYNTH-PAD 2
06 ELEC PIANO 3
16 REED ORGAN
26 WOOD BASS
36 SYNTH-STR 1
46 BRASS 2
56 FLUTE
66 SYNTH-PAD 3
07 ELEC PIANO 4
17 ACCORDION
27 ELEC BASS
37 SYNTH-STR 2
47 SYNTH-BRASS 1
57 RECORDER
67 GLESS HARMONICA
08 HARPSICHORD
18 BANDONEON
28 SLAP BASS
38 CHOIR
48 SYNTH-BRASS 2
58 FLUTE ENSEMBLE
68 COUNTRY FARM
09 CLAVELECTRO
19 HARMONICA
29 BANJO
39 VOICE
49 SYNTH-BRASS 3
59 WHISTLE
69 SYNTH-BASS
POWER/MODE
VOLUME SYNCHRO/
START/
TEMPO
¢
FILL-IN
STOP
¢
SYNTH-SOUND 2
LAYER
SPLIT/PERCUSSION
70 PEARL DROP
80 STRINGS PIANO
90 BASS/PIANO
71 COSMIC SOUND
81 STRINGS EP
91 BASS/E.PIANO
FINGERED
72 SOUNDTRACK
82 CHOIR EP
92 BASS/VIB
CONCERT CHORD
73 SPACE PAD
83 CHOIR ORGAN
93 BASS/G.GUITAR
ON
NORMAL
74 SYNTH-SFX
84 STRINGS GUITAR
94 BASS/D.GUITAR
75 SE 1 (VEHICLE)
85 STRINGS HARP
95 STRINGS/PIANO
OFF
76 SE 2 (TELEPHONE)
86 BRASS STRINGS
96 STRINGS/TRUMPET
77 SE 3 (SPACE)
87 VIB PAD
97 VIBRAPHONE
78 SE 4 (INVADER)
88 12STR GUITAR
98 MARIMBA
⁄
⁄
TRANSPOSE/TUNE
79 SE 5 (FUNNY)
89 CHOIR STRINGS
99 PERCUSSION
UserManuals.info
Concertmate
970
50 RHYTHMS
20 SONG BANK
POPS
ROCK
JAZZ/DANCE
EUROPEAN/LATIN
VARIOUS
00 WHEN YOU WISH
10 JINGL BELLS
00 POP FUSION
10 ROCK WALTZ
20 BIG BAND
30 POLKA
40 MERENGUE
01 TWINKLE TWINKLE
11
O CHRISTMAS TREE
01 BALLAD
11 SLOW ROCK
21 SLOW SWING
31 MARCH
41 REGGAE
12
YANKEE DOODLE
02 ACH DU LIEBER AUGUSTIN
02 POP BALLAD
12 SOFT ROCK 1
22 FOX TROT
32 SLOW WALTZ
42 SKA
03 AMAZING GRACE
13
SANTA LUCIA
03 RAP POP
13 SOFT ROCK 2
23 JAZZ WALTZ
33 WALTZ
43 TEX-MEX
14
WHEN THE SAINTS GO MARCHING IN
04 ODE TO JOY
04 SOUL BALLAD
14 FOLKIE POP
24 ACID JAZZ
34 TANGO
44 FOLKLORE
05 LONDON BRIDGE
15
ALOHA OE
05 FUNKY POP
15 60's SOUL
25 LATIN FUSION
35 BOSSA NOVA
45 COUNTRY
16
SPRING FROM "THE FOUR SEASONS"
06 LONDONDERRY AIR
06 16BEAT
16 ROCK
26 TRANCE
36 SAMBA
46 SLOW GOSPEL
07 GREENSLEEVES
17
LITTLE BROWN JUG
07 8BEAT 1
17 HEAVY METAL
27 DISCO
37 MAMBO
47 ADANI
18
MARCH FROM "THE NUTCRACKER"
08 AULD LANG SYNE
MULTI FUNCTION DISPLAY
08 8BEAT 2
18 50's ROCK
28 RAP
38 RHUMBA
48 BAROQUE
09 JOY TO THE WORLD
19
THE ENTERTAINER
09 POPS
19 CHICAGO BLUES
29 FUNK
39 CHA-CHA-CHA
49 ENKA
0
1
2
3
4
SOUND
SOUND RHYTHM
SONG
970
MELODY
ON/OFF
5
6
7
8
9
RHYTHM
Cat. No. 42-4032
®
970
