Summary of Contents for EAE 48015

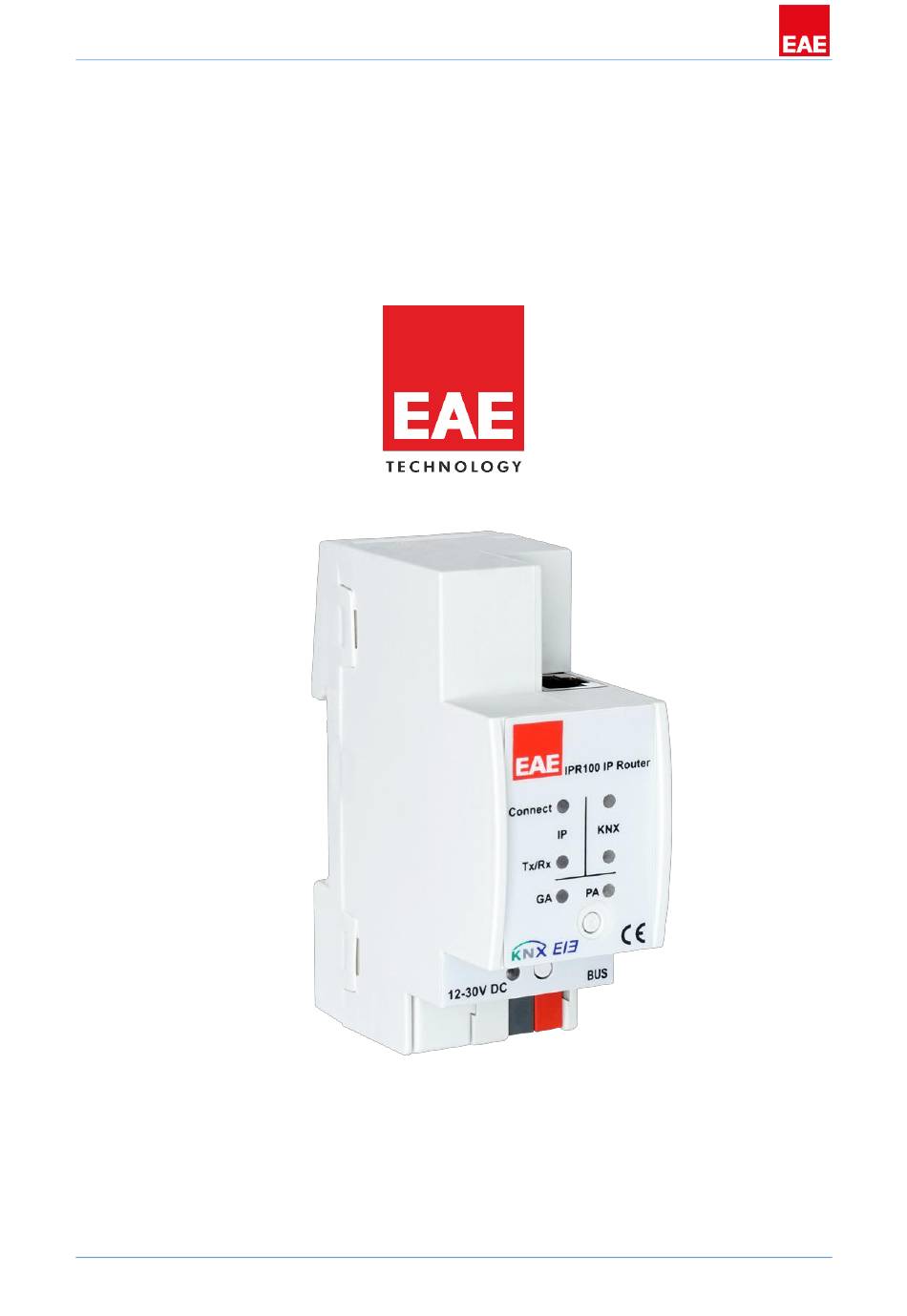

- Page 1 PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 EAE KNX IP ROUTER Product Order Nr: 48015 © EAE Technology www.eaetechnology.com Page 1 / 24...
-
Page 2: Table Of Contents
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 Table of Contents 1. General Features ..........................3 1.1. Communication Objects ......................4 1.2. IPR1000 as Programming Interface ...................4 1.3. Tunneling ..........................4 1.4. Routing ............................4 1.5. Coupler ............................4 2. Device Technology ..........................5 2.1. Device Peripherals ........................5 2.2. -
Page 3: General Features
IP (Internet Protocol) a KNX medium. EAE KNX IP Router is a tunnelling and routing device. It can be used as line- or backbone coupler and provides a data connection between the upper KNXnet/IP line (main line or backbone) and the lower TP KNX bus line (sub line). -
Page 4: Communication Objects
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 1.1. Communication Objects IPR100 has no KNX communication objects. 1.2. IPR1000 as Programming Interface IPR100 can be used together with the ETS as a programming interface. The device provides an additional physical address for this purpose which can be used for a tunneling connection. -
Page 5: Device Technology
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 2. Device Technology 2.1. Device Peripherals 1- Indicator LEDs 2- Function Button 3- Programming Button 4- Programming LED 5- KNX Connection Blinked Blinked Indicator Green Orange Green Manual IP line Connect – IP... -
Page 6: Function Button
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 2.2. Function Button Long press (3 sec) - Switch to manual override. - Default function is set with LAN line and (KNX) line parameter. - Manual override functionality is configured in “General parameters”. -
Page 7: Addressing Mode
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 2.3. Addressing Mode LED addressing mode Off: normal operating mode On: addressing mode After receiving the physical address, the IPR100 automatically returns from addressing mode to the normal operating mode. Button addressing mode Button for switching between normal operating mode and addressing mode for assigning the physical address. -
Page 8: Knx Telegrams In The Network
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 2.4. KNX Telegrams in the network The IP Router sends telegrams from/to the KNX to/from the IP network in accordance with the KNXnet/IP protocol specification. These telegrams are sent in the default setting as multicast telegrams to the multicast IP address 224.0.23.12 port 3671. -
Page 9: Ipr100 As Area Coupler
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 2.5. IPR100 as Area Coupler IPR100 in a KNX system can assume the function of an area coupler. For this purpose, physical address of an area coupler must between 1.0.0 and 15.0.0 . -
Page 10: Ipr100 As Line Coupler
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 2.5. IPR100 as Line Coupler IPR100 in a KNX system can assume the function of a line coupler. For this purpose, it must receive the physical address of a line coupler (1.1.0 till 15.15.0). -
Page 11: Ipr100 In Mixed Systems
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 2.6. IPR100 in Mixed Systems If it is necessary in a KNX system to use the IPR100 at one point as an area coupler, e.g. office complex, and at another point as a line coupler, e.g. a remote underground garage; this is possible. -
Page 12: Technical Data
NOTE: Device default physical address is 15.15.255. In order to configure switch actuator, ETS application file “.knxprod” is needed. It’s possible to download the file on EAE website. ETS is required for programming the device. Parameter settings can be changed by ETS. Learn more by reading ETS help file. -
Page 13: Factory Settings
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 4. Factory Settings IPR100 Marking/Design Physical address 15.15.255 Physical address for tunneling connections 15.15.255 IP address DHCP IP address assignment from DHCP service IP routing multicast address 224.0.23.12 IP subnet mask... -
Page 14: Technical Drawing
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 5. Technical Drawing © EAE Technology www.eaetechnology.com Page 14 / 24... -
Page 15: Application Description
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 6. Application Description If the coupler receives telegrams (for example during commissioning) which use a physical address as destination address, it compares the physical addresses of the receiver with its own physical address and then decides whether it must route the telegrams or not. -
Page 16: Ets Parameters
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 7. ETS Parameters 7.1. General Picture 1: General Range ETS-Text Comment [Default value] Field to enter the IPR100 name (30 signs 30 signs max.). For an easy search of the device... -
Page 17: Ip Configuration
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 7.2. IP Configuration Picture 2: DHCP Configuration Range ETS-Text Comment [Default value] If DHCP is used, no parameterisation needed. do not use DHCP If DHCP is not used, following [use] parameters are to be set. - Page 18 PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 Picture 3: Manual IP Configuration Range ETS-Text Comment [Default value] If DHCP is not used, following parameters are to DHCP configuration be set. do not use [Byte1]. [Byte2]. [Byte3]. [Byte4] [use] IP Address IP Byte 1 to 4: manual input.
-
Page 19: Knx Multicast Address
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 7.3. KNX Multicast Address Picture 4: KNX Multicast Address Range ETS-Text Comment [Default value] 224…239 First byte of the IP routing multicast address. System: [224] Byte 1 [224 … 239] If System multicast address used: Individual: [239] "224"... -
Page 20: Settings For Coupler
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 7.4. Settings for coupler Picture 5: Parameter General Range ETS-Text Comment [Default value] 10 min, 1 hour, 4 hours, 8 hours Time duration required to exit Fallback time for from “manual operation”... -
Page 21: Main Line
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 7.5. Main Line Picture 6: Main Line /Configuration Picture 7: Main Line/Group or Physical Telegrams Individual Configuration © EAE Technology www.eaetechnology.com Page 21 / 24... - Page 22 PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 ETS-Text Range Comment [Default value] groups: filter, physical: block - Block: no telegram is routed. groups, physical: filter - Filter: Only telegrams are routed which are entered in the filter table.
-
Page 23: Sub Line
PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 7.6. Sub Line Picture 8: Sub Line NOTE: If the parameter “Send confirmation on own telegrams” is set yes, IPR100 will send an ACK systematically when sending any own routed telegram. - Page 24 PRODUCT MANUAL IPR100 EAE KNX IP ROUTER IPR100 R1 Range ETS-Text Comment [Default value] 1. transmit all 1. Group telegrams with the sub group 2. block 14 or 15 (e.g. 14/1) are routed. Sub group telegrams 14/15 [transmit all] 2. Group telegrams with the sub group 14 or 15 (e.g.
