- Page 1 Hemo Control Hemo Control User Manual User Manual Sales EKF-diagnostic GmbH Ebendorfer Chaussee 3 D-39179 Barleben / Magdeburg Germany Tel. +49 (0)39 203 7850 CLIA www.ekfdiagnostics.com Science made Simple wAIved 3040-9001-0247...

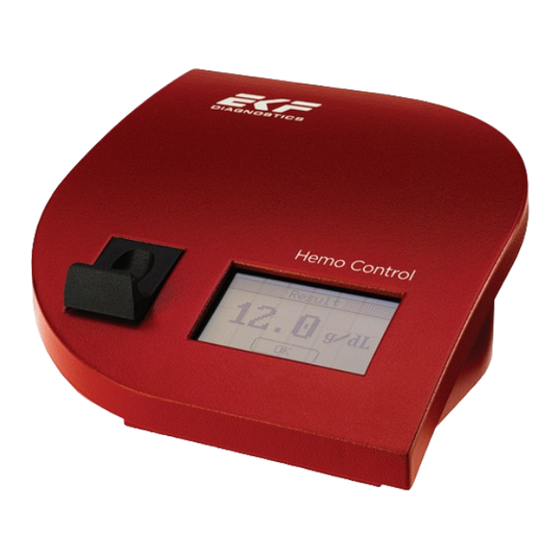

- Page 2 Hemo Control Hemoglobin Measuring System User Manual...
- Page 3 This document is protected by copyright. It may not be reproduced or distributed to third parties without the prior written consent of EKF-diagnostic GmbH. Subject to alteration. Errors excepted. EKF-diagnostic GmbH Ebendorfer Chaussee 3 39179 Barleben Germany Phone: +49 (0) 3 92 03 / 511 - 0 Fax: +49 (0) 3 92 03 / 511 - 171 Manual revision:...
-
Page 4: Table Of Contents
5.4.3 Control solutions ............ 17 .......... 18 EASURED VALUE MEMORY DEVICE MENU .............. 19 .............. 19 NFORMATION ..............20 ONNECT ................20 ................20 ................20 ..............20 B LIMITS ..............20 ONTRAST ............... 20 EGION User Manual Hemo Control... - Page 5 ........... 33 EFERENCE RANGES 11.2 ....33 ESCRIPTION OF THE MEASURING PROCESS 11.2.1 Reaction in the microcuvette ......33 11.2.2 Principle of photometric measurement ....33 11.3 ............... 35 ALIBRATION 11.4 ......35 ALCULATION OF HEMATOCRIT VALUE User Manual Hemo Control...
- Page 6 Contents APPENDIX ..............36 12.1 ..36 EPLACEMENT PARTS AND CONSUMER MATERIALS 12.2 ..............37 ONTACT 12.3 ..............38 YMBOLS User Manual Hemo Control...
-
Page 7: Important Information
Follow the user manual! Each time the device is used precise knowledge of and compliance with this user manual is required. Only use the Hemo Control photometer for the purpose described in Section 2 on page 6. ! Danger ! Danger of fatal electric shock! Under no circumstances should you open the mains adaptor. -
Page 8: Abbreviations
Section 8 on page 25. Abbreviations Quality control Hemoglobin Hematocrit Data Management POCT Data Manager Software to connect the device to an electronic information system as well as for device configuration User Manual Hemo Control... -
Page 9: Intended Use
Intended Use Intended Use The Hemo Control measuring system is intended to be used for the quantitative determination of hemoglobin (Hb) concentrations in human blood. It consists of the Hemo Control photometer and Hemo_Control Hemoglobin Microcuvettes. Using the reagent filled microcuvette a small amount of arterial, venous or capillary blood is taken up by capillary action. -
Page 10: Setting Up
Setting Up Setting Up Components Before you set up and connect the Hemo Control, check that you have received all components belonging to the product free of mechanical damage. Figure 1 - Hemo Control with mains adaptor, control cuvette and cleaner ... -
Page 11: Switching The Device On And Off
Section 6.9.5 on page 21. The device can be switched on as follows: Touch the display Open or close the cuvette holder Connect the mains adaptor to or disconnect it from the mains User Manual Hemo Control... -
Page 12: Mains Operation
Menu Memory Figure 4 - Battery operation In the battery mode the Hemo Control photometer can be operated for about 100 hours. This value strongly depends on the utilization of the device, and hence may vary. ! Note ! Continuous display backlighting is not possible under battery operation. -
Page 13: Sampling
The lid must be carefully closed all around. Only use the handle and do not touch the optical eye of the microcuvette. The microcuvette is intended for in-vitro diagnostic use only. Do not swallow the reagents. User Manual Hemo Control... -
Page 14: Taking A Sample Of Capillary Blood
3. Disinfect the puncture site and allow it to dry. Figure7 - Disinfection 4. Press lightly on the finger tip and puncture from the side to a depth of about 2 mm. Figure 8 - Puncturing of finger User Manual Hemo Control... -
Page 15: Taking A Sample Of Venous Or Arterial Blood
10 minutes at the latest. Taking a sample of venous or arterial blood The Hemo Control can be used for determination of venous or arterial blood samples if the blood was sampled not longer than 24 hours ago and the sample material has been stored in a fridge. - Page 16 Be careful to prevent sucking out and emptying of the microcuvette cavity. Figure13 - Removing excessive blood The microcuvette sample prepared in this way can be measured immediately or within 10 minutes at the latest. User Manual Hemo Control...
-
Page 17: Measurement
An arrow in the battery symbol indicates that the battery is being charged when connected to the mains. Info: Information, as may be required, is displayed here. Opening the cuvette holder sets the device ready for measurement. User Manual Hemo Control... -
Page 18: Measurement
Menu under item 6.6, Hb limits. If a patient type has been selected, this type is displayed by an accordant symbol in the PT button. (M=male, F=female, C=child) Closing the cuvette holder starts the 15:00 measurement. Measuring Memory Menu Figure 18 - Measuring User Manual Hemo Control... -
Page 19: Result Screen
5.4.1 Self test The Hemo Control photometer has implemented an integrated algorithm for checking the optical and electronic components of the device. This self test is carried out automatically in regular intervals and demands no operator action. -
Page 20: Control Cuvette
For handling the control material refer to the respective instructions for use. We recommend using the control material Hb-con, which is offered in various concentrations (see Section 12.1, page 36). If you use other control material we cannot guarantee for the accuracy of the results. User Manual Hemo Control... -
Page 21: Measured Value Memory
Further options; refer to next figure. Arrow: Scrolls through measured value memory. Options Print Löschen Figure 21 - Options Print: Print currently selected value. This option is only available if print is activated (see Section 6.9.2, page 21) User Manual Hemo Control... -
Page 22: Device Menu
Mechanical hardware -DM- indicates if the DM function is activated. The Hemo Control offers the option to enable later the data management function by using a licence key offered by EKF-diagnostic GmbH. In delivery state, the DM function is not activated. -
Page 23: Connect
Defines the desired upper limit (UL) and lower limit (LL) for the patient types male, female and child. Contrast Setting of the desired display contrast. Region a. Setting of language b. Setting of date format c. Setting of time format d. Setting of local mains frequency User Manual Hemo Control... -
Page 24: Options
6.9.5 Stand By A time between 1 and 15 minutes can be set after which the device, if not used, switches to the energy saving Stand By mode. User Manual Hemo Control... -
Page 25: Connection
Software HemoConnect light 6.9.7 Maintenance Delete complete measured value memory. 6.9.8 Scan Service BC Is used for the activation of the DM function. Refer to the Add Pack Hemo Control user manual. 6.9.9 Service For service staff only. 6.10 Contact Contact data... -
Page 26: Accessories And Connections
Only use the components below with their proper connecting cables. Otherwise, the device may be damaged. Data cable The data cable serves to establish a connection between Hemo Control and a POCT Data Manager. Depending on the cable type, connection is via a serial D-sub 9 port or a USB interface. -
Page 27: Hemo Dock
Hemo Dock 7.3.1 Description The docking station Hemo Dock allows a simplified connection of Hemo Control to a POCT Data Manager. Figure 23 – Hemo Dock To this end, the device is placed into the Hemo Dock. An automatic connection to the POCT Data Manager and the transmission of measured values occurs. -
Page 28: Maintenance
Wait until the cuvette holder is completely dry before reinserting it into the device. For reinserting the cuvette holder, push it in the correct position into the opening in the housing until it has noticeably engaged. User Manual Hemo Control... -
Page 29: Internal Optical Unit
Integrated rechargeable battery The device is provided with a rechargeable NiMH battery. The Hemo Control can be operated for about 100 hours. This value strongly depends on the utilization of the device and may vary depending on the following circumstances: a. -
Page 30: Disposal
Dispose of the rechargeable battery in compliance with the regulations for the disposal of waste batteries and rechargeable batteries. If not possible in other ways, return your Hemo Control photometer to the manufacturer for disposal. User Manual Hemo Control... -
Page 31: Troubleshooting
Immediately disconnect the wrong mains adaptor and "Wrong mains adaptor" connect the correct EKF mains adaptor. Error message Wrong mains adaptor connected. Immediately disconnect the wrong mains adaptor and "User error, voltage too low" connect the correct EKF mains adaptor. User Manual Hemo Control... - Page 32 Clean optical unit. Control cuvette is not correctly positioned into the cuvette holder. Place the control cuvette in the correct position. The Hemo Control photometer must be only used with Hemo_Control Hemoglobin Microcuvettes. Ambient temperature is too high. Information message ...
-
Page 33: Device Reset
If a reset is performed while the mains adaptor is connected to the mains, the current battery capacity is reset, and hence charging is forced. To save the battery, this should be done in exceptional cases only. User Manual Hemo Control... -
Page 34: Technical Data
25 – 60 s depending on concentration Mean measuring time Interfaces RS232 Measured value memory 4000 measured values Room temperature 15 – 40 °C Ambient temperature Transport temperature -20 to +50°C 10 – 85 % relative humidity Humidity User Manual Hemo Control... -
Page 35: Microcuvette
Sodium desoxycholate, sodium nitrite, sodium azide, non-reactive additives Material Polystyrene At room temperature 15 – 30 °C, Storage only in original box Dimensions about 35 mm x 24 mm x 4 mm (L x W x H) User Manual Hemo Control... -
Page 36: Theoretical Principles
575 nm and hence can be quantitatively determined photometrically. 11.2.2 Principle of photometric measurement In the Hemo Control photometer the absorbance of transmitted light is measured. The use of microcuvettes with short light pathways makes it possible to analyse undiluted blood. - Page 37 To this end the equations are solved for the concentration c. K where Equation 3 - Calculation of concentration k: proportionality factor for measurement method correction (taking into account design conditions) User Manual Hemo Control...
-
Page 38: Calibration
Theoretical Principles 11.3 Calibration The Hemo Control photometer is calibrated against the reference cyanmethemoglobin method to determine the proportionality factor K. This factor is fixed in the device as an individual parameter. Calibration is performed by the manufacturer against the NCCLS... -
Page 39: Appendix
Hemo Family, Data Cable with serial interface 3000-7051-0028 Data Cable USB 1 pc. for Hemo Family, Data Cable with USB interface 3005-7074-0156 Hemo Dock 1 pc. docking station HemoConnect light Download 1 pc. Software for downloading test results www.ekfdiagnostics.com User Manual Hemo Control... -
Page 40: Contact
Here is all important contact information for you, at a glance: EKF-diagnostic GmbH Postal address: Ebendorfer Chaussee 3 39179 Barleben Germany Telephone: +49-(0)39203-511-0 Fax: +49-(0)39203-511-171 +49-(0)39203-511-414 Service hotline: info@ekf-diagnostic.de email: support@ekf-diagnostic.de www.ekfdiagnostics.de Internet: www.ekfdiagnostics.com User Manual Hemo Control... -
Page 41: Symbols
Follow instructions for use Do not reuse Warning! See accompanying Expires on documents Dispose of electric and electronic Contents will last for <N> devices separately measurements Lot number Reference number Test material In vitro diagnostics CONT Serial number Contents User Manual Hemo Control...
