Summary of Contents for Acclaim Lighting DDC-1-AC

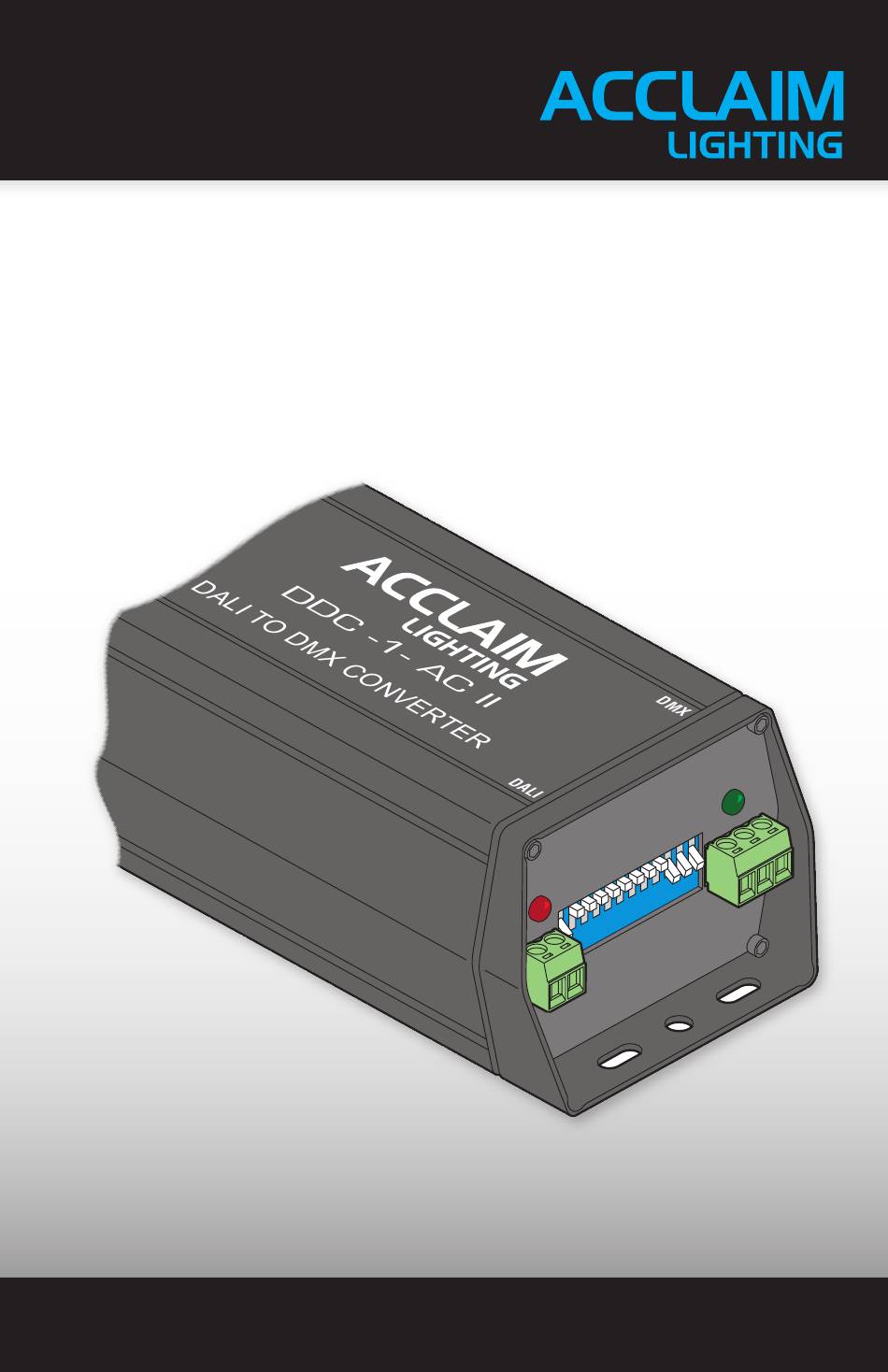

- Page 1 T T I DDC-1-AC™ User guide...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ............2 Welcome Safety, maintenance and cleaning Overview INSTALLATION ............4 Mounting Data connections DALI layout DMX layout CONFIGURATION ............7 DMX to DALI modes Switch settings FURTHER INFORMATION ........9 Specifications Limited product warranty www.acclaimlighting.com... -
Page 4: Introduction
• Ensure there is no deformation to the housing, lenses or fixing points. • Check that all power supply cables are free from physical damage or material fatigue. • Use only genuine spare parts supplied by Acclaim Lighting. CLEANING • Use a moist, lint-free cloth when cleaning each fixture. -
Page 5: Overview
OVERVIEW The DDC-1-AC unit operates in either of two modes to bridge the divide between DALI and DMX. DALI TO DMX In this arrangement, 8-bit dimming signals received on the DALI bus are converted and output via the DMX port. When a valid DALI signal is being received the red indicator will flash continuously. -
Page 6: Installation
INSTALLATION MOUNTING The DDC-1-AC converter can be mounted in any orientation, as required. Two holes (Ø0.2”/ Ø5mm) plus four slotted holes (Ø 0.18 x 0.31”/Ø4.5 x 8mm) are built into the base for mounting purposes (see page 10 for dimensions). -
Page 7: Dali Layout
DALI LAYOUT The DALI standard offers a great deal of flexibility in its layout; standard 2-core cabling is used and up to 64 fixtures can be arranged in a variety of topologies, including a linear bus, a star, or a mixture of both. No termination is used anywhere in the layout and the polarity of the 2-wire connections are unimportant. -
Page 8: Dmx Layout
A linear bus must be formed, using very specific cable types (see below), which must be terminated at each end (the DDC-1-AC unit is internally terminated). Polarity of all connections is critical and up to 32 fixtures can be connected along the bus. -
Page 9: Configuration
DALI bus cannot keep pace. DMX TO DALI MODES In DMX to DALI mode, the DDC-1-AC unit supports two DALI control modes: • Channel - [sw10: ON, sw11: ON] In this mode, the 64 DALI... -
Page 10: Switch Settings
SWITCH SETTINGS DMX base address Note: Changes can be made to the switch settings while power is applied and the unit will respond accordingly. • Switches 1 to 9: DMX base address • Switches 10 & 11: Mode (DMX to DALI direction only) Channel mode (64 DMX to 64 DALI) Note: In DALI to DMX mode, Broadcast mode (1 DMX to 64 DALI) -
Page 11: Further Information
FURTHER INFORMATION SPECIFICATIONS Operating Voltage 100-277VAC, 50/60Hz DALI Input / Outputs DMX Input / Outputs Maximum Control Channels 64 DALI and 64 DMX Protocols DALI and DMX-512A Power Consumption 8.3mA, 1W at 120VAC Finish Black Housing Material Extruded aluminum IP Rating IP20, dry location Operating Temperature 14°F to 122°F (-10°C to 50°C) - Page 12 DIMENSIONS Ø0.18" (Ø4.5mm) Ø0.2" (Ø5mm) AC IN: 100-277V 1.18" (30mm) 2.54" (65mm) 2.00" (51mm) Weight: 0.8 lbs (362g) www.acclaimlighting.com...
-
Page 13: Limited Product Warranty
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. - Page 14 www.acclaimlighting.com...
