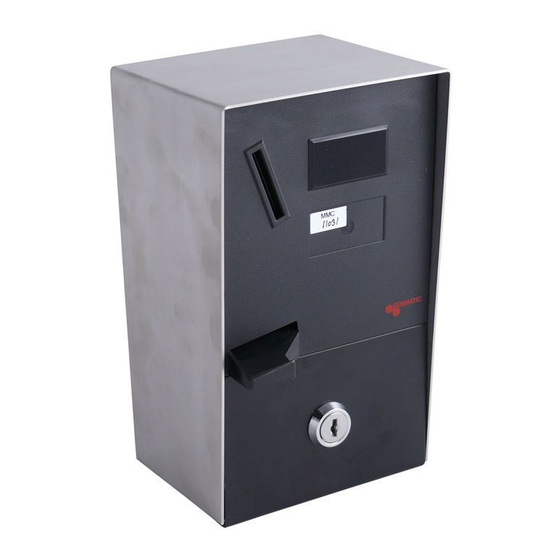

Senmatic MMC Directions For Use

Technical data

Supply voltage:
Output:
Load:
Pushbutton:
Dimensions:
Protection:
Cable glands:
Temperature range:

Mounting instructions

Remove front plate by opening the coin box with the enclosed key. Then loosen the screw at the bottom of the front plate,
which can now be removed from the box. The box is mounted on the wall, and the cables can be connected to the terminal
strips in the box. Note! Check the vertical level when mounting the coin meter.

Operation

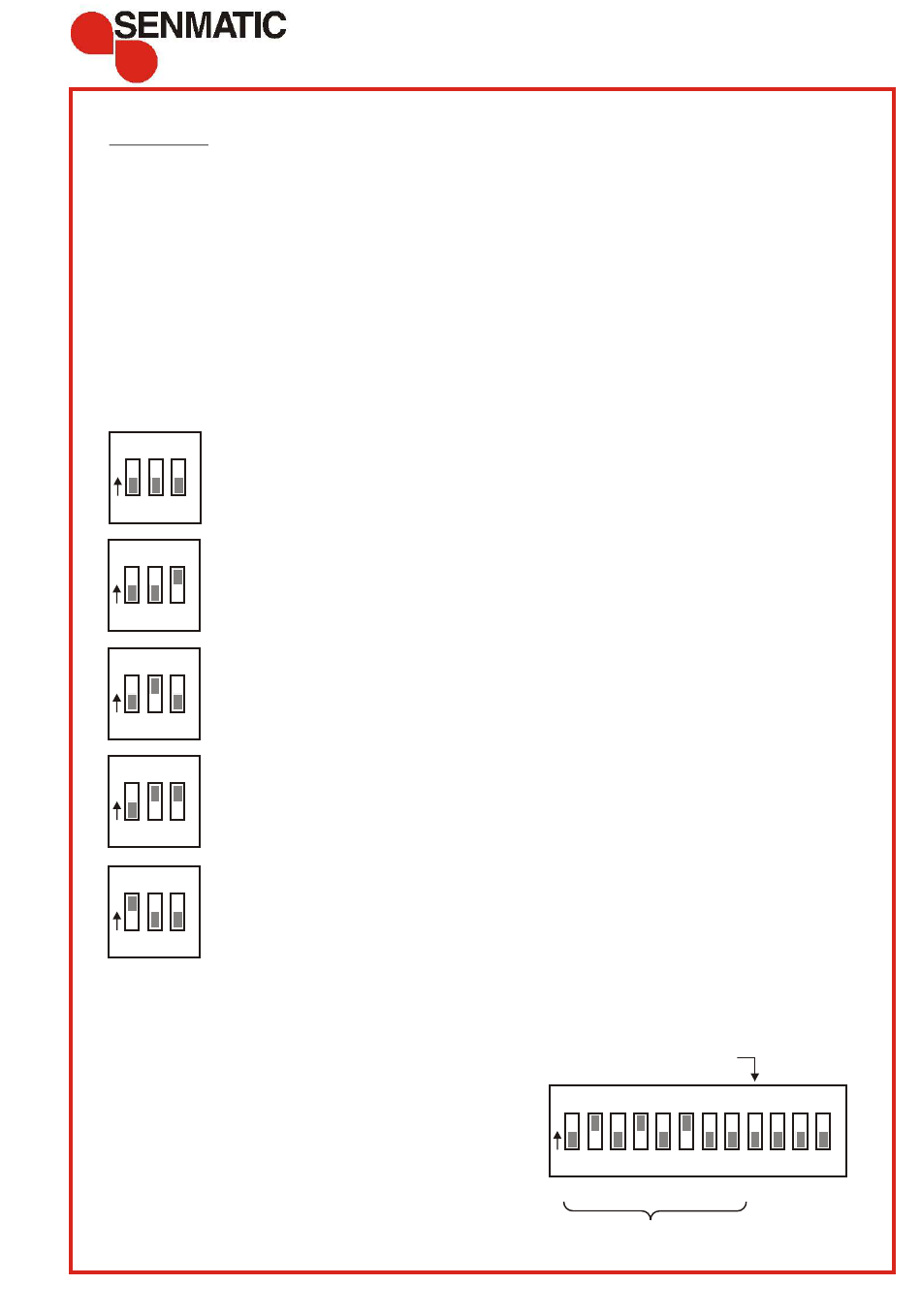

The Coin meter can be set up for various modes of operation dependent on application. These are chosen by means of a 3-
point switch (SW2) as shown in below 5 examples.
Program 0: Net time shower cabinets
1 2 3
O
Insert the prescribed coin. Start/stop the period and the connected device on the touch button
N
(special equipment). The device switches off automatically when the time has expired.
Additional coins inserted during the time of operation will automatically be summed up.
Program 1: Time control with summation
1 2 3
O
Insert the prescribed coin and the coin meter switches on the connected device. The device switches off
N
automatically when the time has expired.
Additional coins inserted during the time of operation will automatically be summed up.
Program 2:
1 2 3
O
Same function as in program 1, however extended so that pressing the connected button causes a fixed
N
termination period of 20 seconds. This means that it will be possible to open the door of a washing
machine when the time of operation has run out.
General NC push button in the terminal point PUSH BUTTON
Program 3: Solaria
1 2 3
O
Insert the prescribed coin and the coin meter switches on the connected device. The device switches off
N
automatically when the time has expired.
Insertion of coins during the time of operation is not possible and thus summation is not possible.
The switch 10, 11 and 12 (coins before operation) are to be switched off in this program.
Program
1 2 3
O
Same function as in program 3, but insertion of new coin will result in renewed time of operation.
N
Remaining time - if any - will be reset.

Setting of time

Time per coin may be set in the range 1 sec. to 4 hours. Setting to be made on the first 9 switches on the 12-point switch
SW1.
Switch1-8:
Move the switches in the direction of the pointer and you will get
the period stated below each switch as shown in example 1.
The period of each switch will be added up, and the result of the
shown example 1 will be:
Switch 9:
On this switch minutes or seconds applying for the
switches 1-8 are chosen.
Industrivej 8 - DK 5471 Søndersø - Tlf.: +45 64 89 22 11 - Fax: +45 64 89 33 11 - dk@senmatic.com
Directions for use
230 / 24 / 12 V AC (see sign)
1 pole potentialfree
10 Amp co. ϕ = 1
NC (internal supply 12 V AC)
210 × 123 × 110 mm
IP 44
2 × PG 13.5
-20° - +40°C
Washing Machines
:
4 Time control without summation
2+8+30=40 minutes.
Coin Meter - Type MMC
Switch 9 down (off) = Min.
Switch 9 up (on) = Sec.
1 2 3 4 5 6 7 8 9 10 11 12
O
N
1 2 4 8 15 30 60120
Sec./min.
Page 1 of 3
Example 1
