Model 'VM' LubriMist
Installation AND OPERATION MANUAL

Introduction

®
A LubriMist
Oil Mist System is a centralized lubrication system that generates, conveys, and automatically delivers lubricant to bearings,
gearboxes, chains, and sliding surfaces in various industrial machinery and equipment. This publication provides instruction and
Oil Mist Generator Unit Model "VM". Design, application, and distribution of LubriMist
®
information for the LubriMist
other publications. Call the Lubrication Systems Company office nearest you for additional information.

Description

®
The LubriMist
"VM" is a compact, one gallon oil mist generator suited for application where minimal instrumentation is required and the
system can be regularly checked, monitored and manually refilled with oil. Model "VM" is available in 40, 100, and 300 BI capacities, giving
an overall oil mist flow range of 0.36 to 9.0 SCFM.
Standard features include a rectangular stainless steel reservoir with an oil level gauge; mist generating head (size as specified) and a low
oil level switch. Also included, as standard equipment is an integral inlet air supply filter/air pressure regulator with gauge.
Available option includes a solenoid operated air valve in various coil voltage. See the product model code provided below for a complete
explanation of the standard models and available options.
40
VM
100
300
GENERATOR
RESERVOIR
SIZE
CAPACITY AND
MATERIAL
40 - 40BI
D- 1 Gal.
100 - 100 BI
Rectangular
300 - 300 BI
T304 SS
Standard Features
THE LEADER IN OIL MIST TECHNOLOGY
Oil Mist Generator
M
O
D
E
D
C
RESERVOIR
LEVEL ALARM
C- Low Oil
Level Switch
X- None

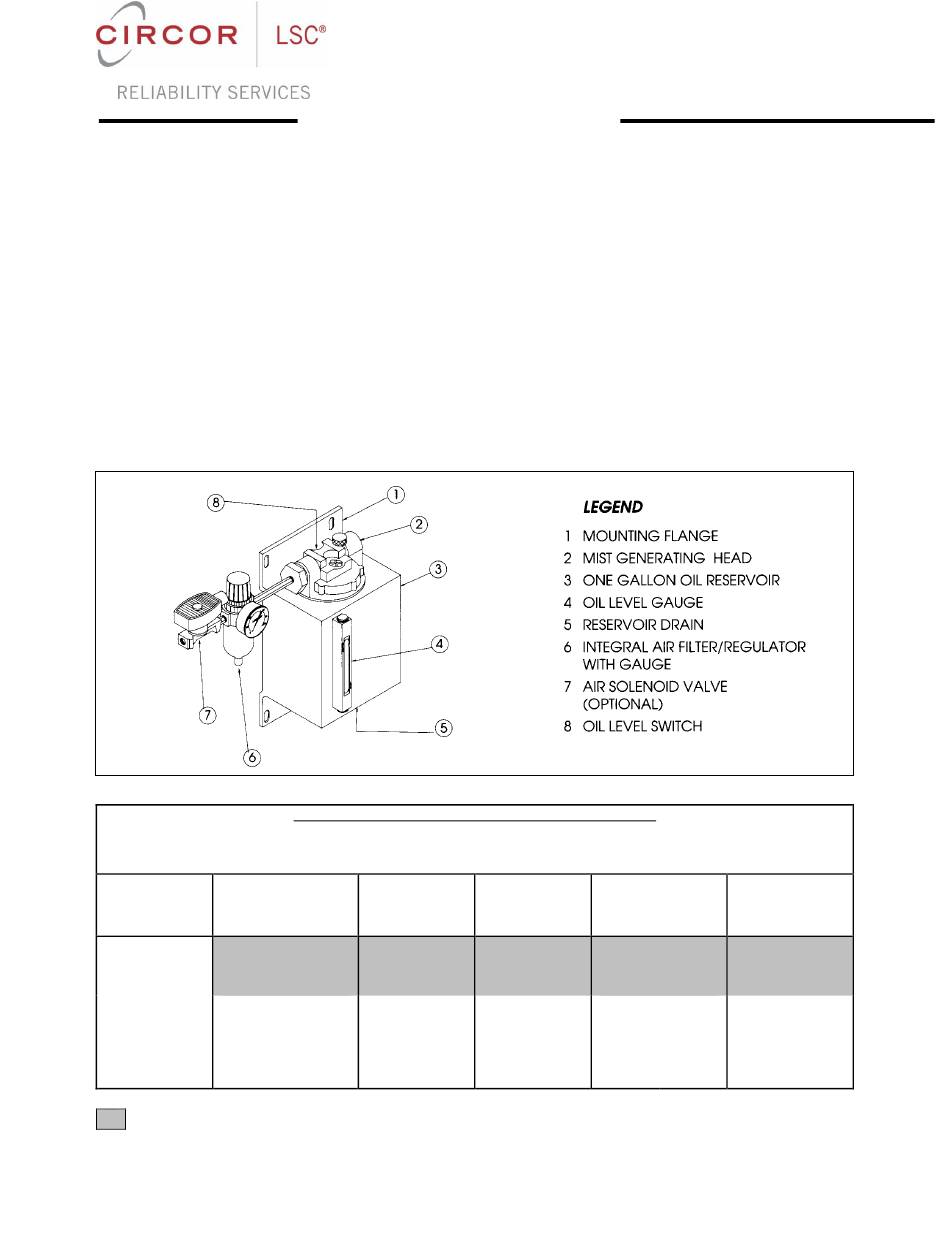

FIG. 1
L
N
O.
X
C
OIL HEATER
INLET AIR
PRESSURE
CONTROL
X- None
C- Combined
Fliter. /Reg.
With Gauge
X- None
77740201 REV 4 January 17, 2019
®
Oil Mist is covered in
(Standard Model Shown)
X
AIR SOLENOID
VALVE
X- None
B- 120 VAC
C- 240 VAC
D- 24 VDC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSC LubriMist VM 40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Circor LSC LubriMist VM 40

  • Page 1 THE LEADER IN OIL MIST TECHNOLOGY  Model 'VM' LubriMist Oil Mist Generator INSTALLATION AND OPERATION MANUAL Introduction ® A LubriMist Oil Mist System is a centralized lubrication system that generates, conveys, and automatically delivers lubricant to bearings, gearboxes, chains, and sliding surfaces in various industrial machinery and equipment. This publication provides instruction and Oil Mist Generator Unit Model “VM”.
  • Page 2 THE LEADER IN OIL MIST TECHNOLOGY Installation Install the Model “VM” on a wall or column in an upright position using the four mounting holes on the unit reservoir. The oil level gauge should be in full view, and the oil fill port, located on the top of the mist head, must be accessible. Connect the oil mist distribution system to the 1"...
  • Page 3 THE LEADER IN OIL MIST TECHNOLOGY Model ‘VM’ LubriMist ® Oil Mist Generator Fig. 3 Parts List Spare Parts List ITEM NO. PART NO. DESCRIPTION PART NO. DESCRIPTION Vortex Mist Head 77-500-040 40 BI Mist Head 77-500-048 Low Level Oil Switch (1) 77-000-000 100 BI Mist Head 77-000-030...
  • Page 4 THE LEADER IN OIL MIST TECHNOLOGY Electrical: All components are to be independently wired by user. • Low Oil Level Alarm Switch Item No. 2 Contacts rated 20 WATTS – 120/240 VAC (Hermetically sealed reed) ½” NPT Conduit Connection • Air Solenoid Valve Item No.
  • Page 5 THE LEADER IN OIL MIST TECHNOLOGY Controlling the Oil Mist ® LubriMist Vortex oil mist generation technology allows for maximum control and adjustment of oil mist properties. There are three basic controls, refer to Fig. No's. 3 and 6. The Integral Air Filter/ Regulator is used to adjust the volume of air flow to the Vortex chamber which in turn controls oil mist volume, refer to Item 7, Fig.
  • Page 6 THE LEADER IN OIL MIST TECHNOLOGY FOR SALES, 24 HOUR SERVICE OR TECHNICAL INFORMATION: 15150 West Drive Houston, TX 77053 713/464-6266 • FAX 713/464-9871 • 800-800-LUBE DESIGN • MANUFACTURING • INSTALLATION • MAINTENANCE • TRAINING 77740201 REV 4 January 17, 2019...
