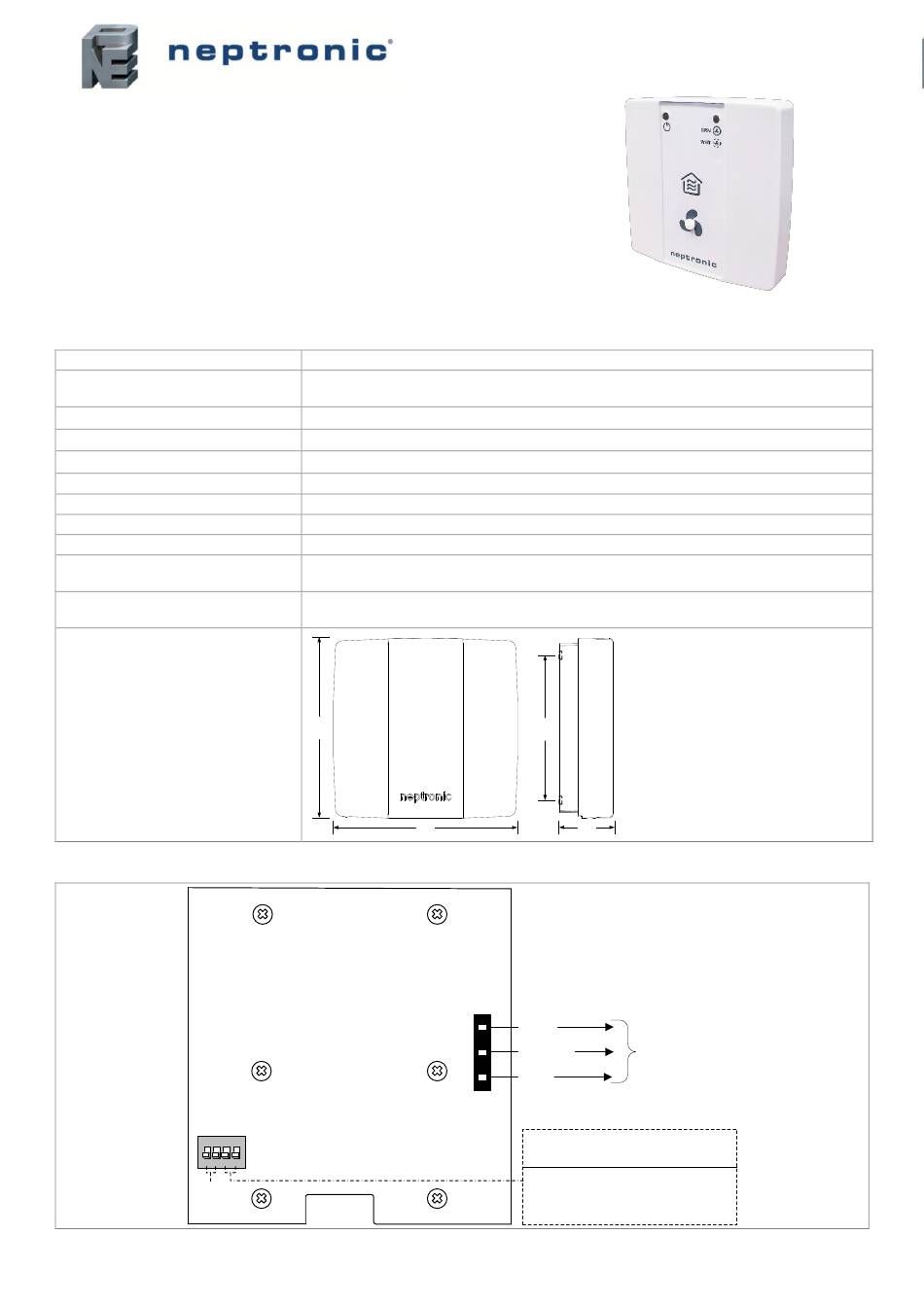

Neptronic IMC10 Specification And Installation Instructions

Models

IMC10

Features

•
Press push button to switch between off, continuous and intermittent
operation modes.
•
In intermittent mode, the operation type is alternated based on the time
interval selected by the DIP switches (15, 30, 45 or 60 minutes).
•
LED status indications for operation mode and power.
•
Three wire connection between switch and CMU.

Technical Data

Specification

Description

Electrical Connection

Power Supply

Power Consumption

Operating and Storage Temperature

Relative Humidity
Ingress Protection

Weight

Power LED (left)
Operation Mode LED (right)

Dimensions

A = 3.00" | 78mm
B = 3.00" | 78mm
C = 1.00" | 24mm
D = 2.36" | 60mm

Wiring

DS1
ON
1 2 3 4
Not
Used
IMC10-201116
Push button room control switch that can be used with the CMU series compact make-up
air units.
2
3 wires 0.8 mm [18 AWG] minimum
24Vac
1VA
0ºC to 50ºC (32ºF to 122ºF)
5 to 95 % non condensing
IP 30 (EN 60529)
60 g. [0.13 lb]
Turns green if the device is powered on.
Turns OFF if the device is powered off.
Turns green if the device is in continuous operation mode.
Turns white if the device is in intermittent operation mode.
B
A
TB1
1
2
3
www.neptronic.com
Room Control Switch
Specification and Installation Instructions
IMC10
IMC10
D
C
COM
Connect to
OUTPUT
CMU
24V
Intermittent Operation Mode | DS1
3 4 Result
OFF OFF 15 mins On / 15 mins Off
ON OFF 30 mins On / 30 mins Off
OFF ON 45 mins On / 45 mins Off
ON ON 60 mins On / 60 mins Off
Page | 1
