Summary of Contents for TELEJET Matrix 570VT

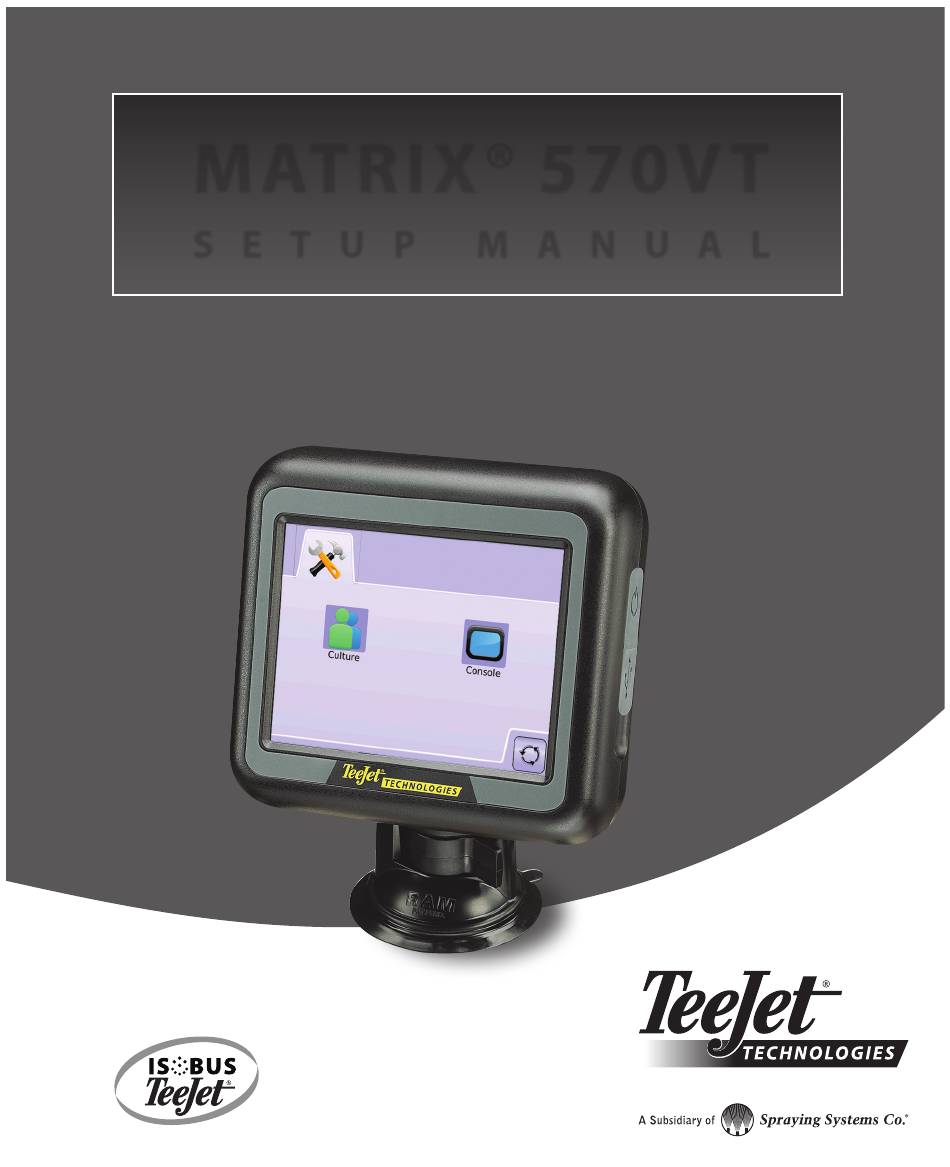

- Page 1 MATRIX® 570V T S E T U P M A N U A L Software version 1.00...
- Page 2 COPYRIGHTS © 2011 TeeJet Technologies. All rights reserved. No part of this document or the computer programs described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies. TRADEMARKS Unless otherwise noted, all other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
-
Page 3: Table Of Contents
Matrix 570VT ● ISOBUS ® Table of Contents CHAPTER 1– PRODUCT OVERVIEW OPTIONAL SYSTEM COMPONENTS CONFIGURATIONS POWER ON/OFF Start Up Sequence ............................7 GENERAL OPERATION INFORMATION CHAPTER 2 – SYSTEM SETUP CULTURE Units ................................10 Language ..............................11 Time Zone ..............................11 CONSOLE Volume ..............................12 LCD Brightness ............................13 Virtual Terminal Number ........................13... -
Page 4: Chapter 1- Product Overview
While occasional splashing of water will not damage the unit, the Matrix 570VT is not designed for direct exposure to rain. Take care not to operate the Matrix in wet conditions. -
Page 5: Optional System Components
IC18 Spreader Electronic Control Unit Use with your existing VT or Matrix® 570VT Use with your existing VT or the Matrix 570VT for dry • Works seamlessly and displays on any ISOBUS product application • Works seamlessly and displays on any ISOBUS •... - Page 6 Matrix 570VT ● ISOBUS ® BoomPilot Switchbox Electronic Control Unit for IC18 Manual section control with remote master capibility. The switchboxs are available in two configurations. BoomPilot (automatic boom section control) is possible in combination with software built into the ►9 sections output or 8 sections and a master output IC18 Sprayer/NH3 Electronic Control Unit (ECU).
-
Page 7: Configurations
® CONFIGURATIONS The following diagrams are reflective of typical Matrix 570VT in combination with the IC18 Job Computer configurations. Due to the variety of possible configurations, these should be used for reference purposes only. Figure 1-6: IC18 Sprayer Retro Kit to Matrix 570VT Harnessing with BoomPilot ECU and Optional Switchboxes... - Page 8 570G CAN Matrix Pro 840G 78-08069 45-05823 Capped 4 position DT for ISOBUS connections 45-09022 XX/XX ISOBUS Hitch to IC18 Harness ISOBUS Incab Module Matrix 570VT 45-09026 45-09022 to Incab CONNECT BATTERY Module 45-05824 CONNECT BATTERY IC18 to Raven Sensors Harness...
-
Page 9: Power On/Off
Matrix 570VT ● ISOBUS ® POWER ON/OFF Press the POWER BUTTON to power on the console. Upon power up, the Matrix VT will begin its Start Up Sequence. Press and briefly hold the POWER BUTTON (until the screen turns black) to power off the console. Figure 1-8: Power Button Power Button USB Port with Rubber Cover... -
Page 10: General Operation Information
Matrix 570VT ● ISOBUS ® GENERAL OPERATION INFORMATION A firm touch is required when selecting a screen icon. For rapid adjustment of a setting, press and hold the UP/DOWN ARROW ICONS All changes are saved automatically. The console needs to be cycled off and back on when changing or attaching equipment to the Matrix system. Press the icon of any menu item to display a definition of that item. -
Page 11: Chapter 2 - System Setup
Matrix 570VT ● ISOBUS ® CHAPTER 2 – SYSTEM SETUP System Setup is used to configure cultural and console settings. NOTE: All settings are automatically saved when selected. Figure 1-11: Master Screen To access the System Setup screens: 1. Select MATRIX VT SETUP KEY from Master Screen. -
Page 12: Culture
Matrix 570VT ● ISOBUS ® CULTURE Culture is used to configure Units, Language and Time Zone settings. Figure 1-13: Culture 1. Press CULTURE ICON 2. Select from: ►Units – defines the system measurements ►Language – defines the system language ►Time Zone –... -
Page 13: Language
Matrix 570VT ● ISOBUS ® Language Figure 1-15: Language Languages defines the system language. 1. Press CULTURE ICON 2. Press LANGUAGE ICON 3. Press UP/DOWN ARROW ICONS to change between languages. 4. Press ►PAGE RIGHT ARROW to proceed to Time Zone. ►SYSTEM SETUP TAB to return to main System Setup screen. -
Page 14: Console
Matrix 570VT ● ISOBUS ® CONSOLE Console Setup is used to configure Volume, LCD Brightness, Virtual Terminal Number and Screen Calibration settings, as well as view About information and Save system software information. Figure 1-17: Console 1. Press CONSOLE ICON 2. -
Page 15: Lcd Brightness
Matrix 570VT ● ISOBUS ® LCD Brightness Figure 1-19: LCD Brightness LCD Brightness adjusts the brightness of the console display. Range is 0 - 100. 1. Press CONSOLE ICON 2. Press LCD BRIGHTNESS ICON 3. Press the UP/DOWN ARROW ICONS adjust LED brightness. -
Page 16: Touch Screen Calibration
Matrix 570VT ● ISOBUS ® Figure 1-22: Touch Screen Calibration Process Touch Screen Calibration Touch Screen Calibration is used to activate a touch screen calibration. 1. Press CONSOLE ICON 2. Press CALIBRATE TOUCH SCREEN ICON 3. Press HAND ICON to enable the touch screen calibration process. -
Page 17: About/Save
Matrix 570VT ● ISOBUS ® About/Save Figure 1-23: About Matrix 570G About/Save screen displays the system software version as well as the software versions of modules connected to the CAN bus. To view system information: 1. Press CONSOLE ICON 2. Press ABOUT ICON to view data including: •... -
Page 18: Appendix A - Time Zones
Matrix 570VT ● ISOBUS ® APPENDIX A - TIME ZONES Africa Sao Tome Dominica New York Mawson Tripoli Edmonton Nipigon McMurdo Abidjan Tunis Eirunepe Nome Palmer Accra Windhoek El Salvador Noronha Rothera Addis Ababa Fortaleza North Dakota - Center South Pole Algiers Glace Bay North Dakota - New... -
Page 19: Appendix B - Unit Specifications
Matrix 570VT ● ISOBUS ® Katmandu Yakutsk Belgrade Skopje Fakaofo Krasnoyarsk Yekaterinburg Berlin Sofia Fiji Kuala Lumpur Yerevan Bratislava Stockholm Funafuti Kuching Brussels Tallinn Galapagos Kuwait Bucharest Tirane Gambier Atlantic Macau Budapest Uzhgorod Guadalcanal Azores Magadan Chisinau Vaduz Guam Bermuda Makassar Copenhagen Vatican... - Page 20 MATRIX® 570VT S E T U P M A N U A L 1801 Business Park Drive Springfield, Illinois 62703 USA Tel: (217) 747-0235 • Fax: (217) 753-8426 www.teejet.com 98-05266 R0 US © TeeJet Technologies 2011...
