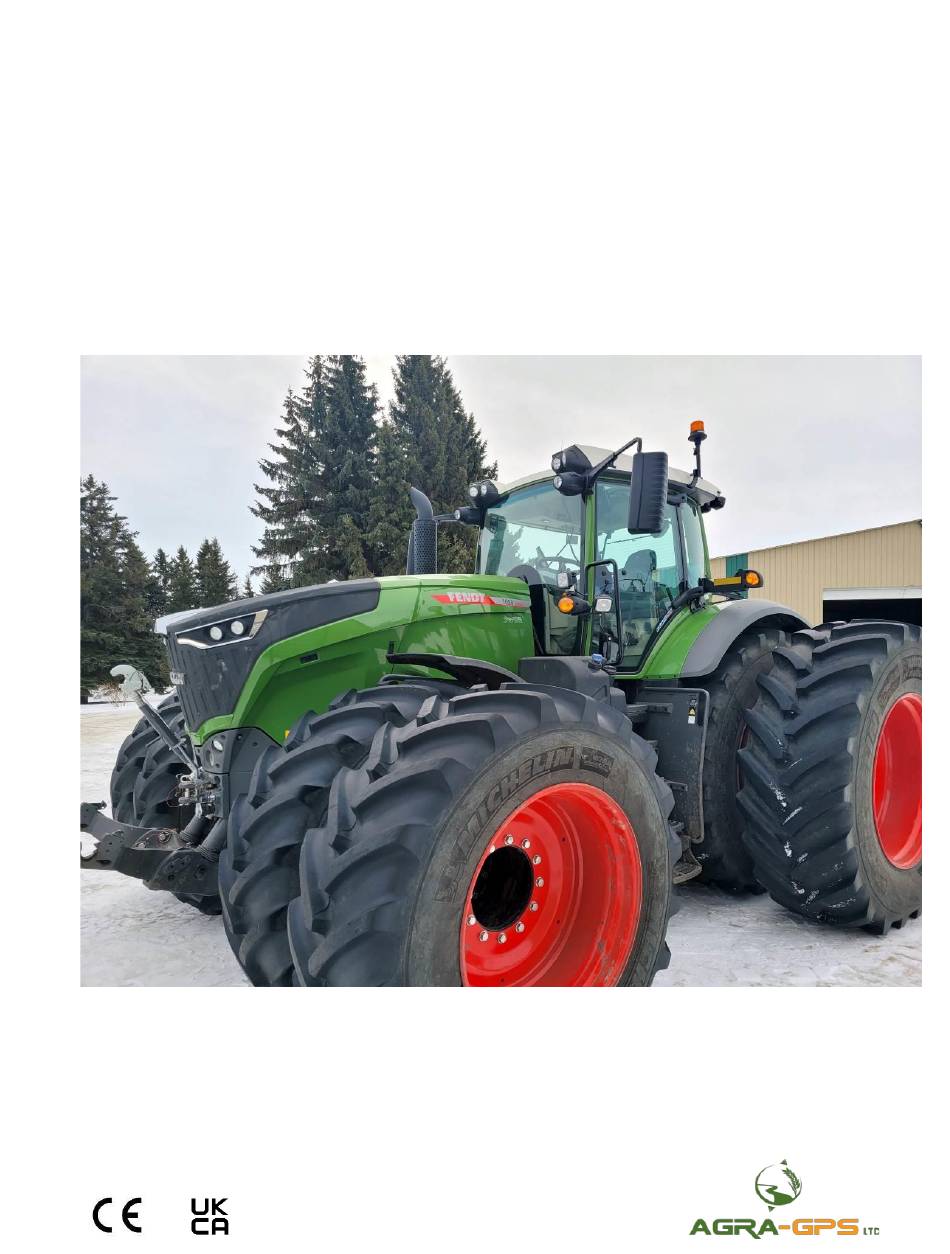

- Page 1 INSTALLATION MANUAL CRG-Fendt Roof Bridge CRG-Fendt July 2022...
- Page 2 Disclaimer While every effort has been made to ensure the accuracy of this document, Agra-GPS Ltd assumes no responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of information contained herein.
-
Page 3: Important Safety Information
Follow all safety labels affixed to the system components. Be sure to keep safety labels in good condition and replace any missing or damaged labels. To obtain replacements for missing or damaged safety labels, contact Agra-GPS. When operating the machine after installing the CRG, observe the following safety measures: •... - Page 4 The operator must read and understand the manuals and instructions of these systems, before using the CRG. Components The CRG-Fendt kit contains the following items: CRG receiver Harness to connect the John Deere display to the ISO in-cab connector of the Fendt tractor...
- Page 5 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Pre-Install (Optional): Install CRG SIM Card If your CRG is equipped with an optional cellular modem, install the SIM card BEFORE installing the CRG. Later on, the SIM card cannot be installed or changed without removing the CRG from the tractor.
- Page 6 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Step 1: Install the CRG Open the Roof Panel The CRG is installed in the roof above the main seat. Removing the plastic cover, exposing the metal panel behind it. To access the connector for steering, you need to remove all the bolts securing the inner panel, allowing it to swing down.
- Page 7 AGRA-GPS Ltd. Installation Manual: CRG-Fendt 1b) Remove JD Mounting Bracket Even though the CRG comes with a JD mounting bracket, it is designed to fit into the Fendt sunroof and has the same bolt pattern as the Fendt metal roof plate.
- Page 8 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Mount the CRG Prior to mounting the CRG, determine if the unit contains an internal cellular modem. If so, a SIM card must be installed. Use the same 4 bolt locations to fasten the CRG onto the Fendt sunroof metal base.
- Page 9 NTRIP caster setup). • Bluetooth ® using your mobile phone (Refer to page 14 for Agra-GPS app setup). • External correction source via radio modem For an external radio, you may use the 4-pin DT deutsch connector (shown unconnected). If the CRG is supplied with an internal cellular modem, this connector must remain unconnected.
- Page 10 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Step 2: Mount the JD Display The mounts for the JD display are NOT part of the CRG kit, but can easily be manufactured in the average shop or ordered from John Deere. The JD display adapter cable will be plugged into the 9-pin ISO socket on the back right roof panel.
- Page 11 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Step 3: Setup ISObus Apps The CRG comes with 2 ISObus VT applications (ISO apps) that will be loaded onto the John Deere monitor. The apps will automatically install themselves into the monitor after the first few minutes of the initial start-up.
- Page 12 AGRA-GPS Ltd. Installation Manual: CRG-Fendt NOTE: John Deere 1800 and 2600 monitors do not show a loading bar for ISO applications, while 2630 and 4640 monitors do. If the ISO application does not load: • Try clearing the monitor's memory. On 2630 monitors this can be done in the Message Center in the side menu.
- Page 13 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Step 4: Configure CRG-Receiver ISO App The main screen of the CRG- Receiver app is the “CRG Info” page, as shown. The minimum initial setup require- ments include specifying the mount placement & completing calibration procedure (refer to Mount Settings on page 11).
- Page 14 AGRA-GPS Ltd. Installation Manual: CRG-Fendt General Settings Minutes On After Power Off: Delay for CRG to power down after machine is turned off. This will allow GPS satellite tracking to continue and allows for getting back to work quickly. Bridge: Must be enabled to provide auto- steering.
- Page 15 • You may have purchased the CRG with an internal cellular modem. This modem requires a SIM/data card to be installed. • If you don’t have a cellular modem, you may use our Agra-GPS app on your phone to ®...
- Page 16 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Diagnostics The diagnostics page is useful for determining proper operation of the CRG. For connecting with Bluetooth, please note the name displayed near the bottom. This name should appear on your phone on the Bluetooth connections page.
- Page 17 Installation Manual: CRG-Fendt Bluetooth App The Agra-GPS app provides RTCM correction streaming via Bluetooth, through your mobile phone. Be aware that you will require a reliable cellular network signal at your work site. NOTE: Streaming data through your phone may incur extra data charges from your mobile phone network provider, depending on your data limits.
- Page 18 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Step 5: Configure CRG-Bridge ISO App Before adjusting auto-steer performance, the proper settings must be entered into the CRG- Bridge ISO app. The Bridge options home page is shown. Press the button indicated by arrow to access other information pages.
- Page 19 AGRA-GPS Ltd. Installation Manual: CRG-Fendt Auto-Steer Operation Refer to the Pie indicator on the JD monitor screen. With the CRG’s Bridge section enabled (via General Settings), you should see 1 quarter of the Pie (Installed). Press the AutoSteer-Enable button on the armrest to obtain 2 quarters (Configured).
-
Page 20: Troubleshooting
AGRA-GPS Ltd. Installation Manual: CRG-Fendt SF1 & RTK Indicators In order to communicate with a John Deere monitor, the CRG identifies itself as having an SF1 signal at all times, even when no satellite signals are available. This doesn’t mean you are receiving an SF1 signal, and also doesn’t mean you have an SF1 license. -
Page 21: Status Light
AGRA-GPS Ltd. Installation Manual: CRG-Fendt Status Light The back side of the CRG (the connector side) contains a coloured status LED. The following indications are defined: Solid RED: A problem with the ISO/Implement bus (connecting to the JD monitor) Flashing RED:... -
Page 22: Appendix A: Product Specifications
AGRA-GPS Ltd. Installation Manual: CRG-Fendt Appendix A: Product Specifications Operating Voltage Range: 10 to 16 VDC, 12V nominal Power Consumption: less than 3W Operating Temperature: -20℃ to +40℃ ambient Weatherproof: NEMA 3X, IP65 ® Supported: Bluetooth BLE, RTCM-3.x, NTRIP 2.0... - Page 23 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. **DO NOT MODIFY** Changes or modifications not expressly approved by Agra-GPS Ltd could void the user's authority to operate the equipment.
