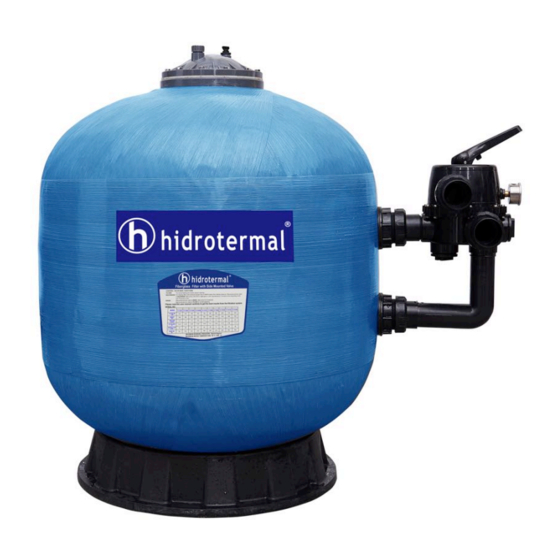

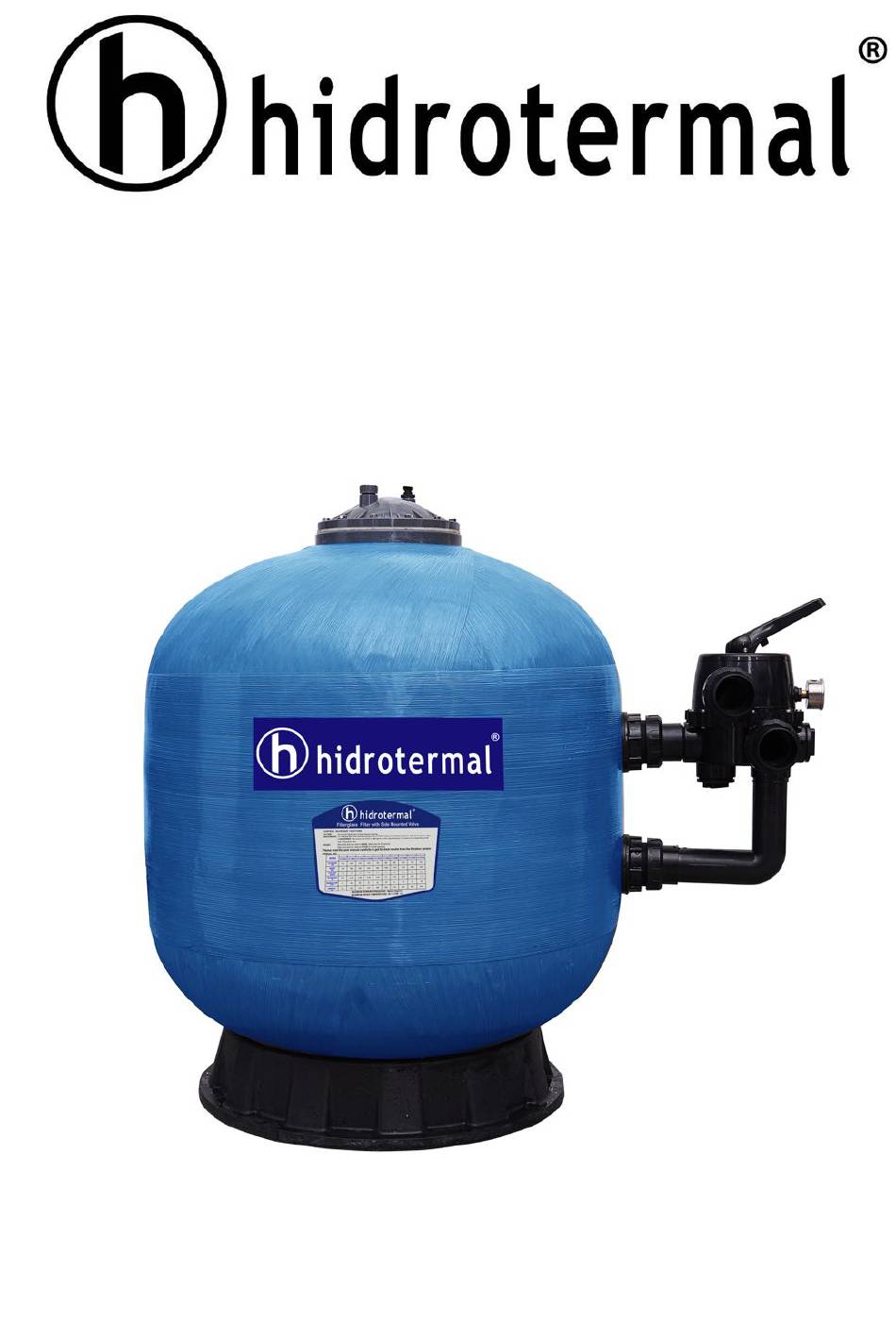

- Page 1 Fiberglass Filter Side Mount Series USER MANUAL...
- Page 2 Filter Area Max Flow Valve Size A Size B Size C Size D Model Sand Weight Connections (mm) (mm) (mm) (mm) Rate (m (kg) HT-VS525 0.22 1.5" 50mm 12.00 HT-VS625 0.30 1.5" 50mm 16.00 HT-VS700 0.40 1.5" 50mm 20.00 HT-VS700B 0.40...
- Page 3 Installation Required Tools: Screwdriver, Wrenches, pipe sealant and plastic adapters. 1. The filter should be placed on a reasonably level surface and provided adequate drainage. Position the filter so that the piping connections, control valve are convenient and accessible for operations and service, The filter should be placed as close to the pool as possible in order to reduce the line loss from pipe friction.
- Page 4 Fiberglass Filter Structure 1. Filter Replacement Parts Key No. Product Description Air Release Valve Oil Pressure Gauge with O-ring (40 psi) Connector for Pressure Gauge/Stopper 03013003 M8 Nut*12Pc; 03012003 M8 Washer*12Pc Lid (Grey Color) Filter Neck Gasket 700B F e Ta W h Ba e 800 F e Ta W h Ba e...
- Page 5 Trouble Shooting Guide SYMPTOMS PROBABLE CAUSES ACTION TO BE TAKEN 1. the ring under the standard lid of 1. Replace item No.3 washer Water leaks from handle is damaged. ( Please see handle position Figure 3, Item No. 3-Washer for (Please see Figure 3）...
- Page 6 Valve Positions Function Valve Position Function FILTER Normal Filtration and Vacuum BACK WASH Clean Filter by reversing the flow RINSE Use after backwash to flush dirt from valve WASTE By-passes filter, use to vacuum the waster for lowering water level RECIRCULATE By-passes filter for circulating water to pool CLOSED...
- Page 7 Warning 1. THIS FILTER OPERATES UNDER HIGH PRESSURE. WHEN ANY PART OF THE CIRCULATING SYSTEM (e.g. CLAMP, PUMP, FILTER, VALVES, ETC.) IS SERVICED, AIR CAN ENTER THE SYSTEM AND BECOME PRESSURIZED. PRESSURIZED AIR CAN CAUSE THE LID OR VALVE TO BE BLOWN OFF WHICH CAN RESULT IN SEVERE INJURY, DEATH, OR PROPERTY DAMAGE.
