SoundOFF PREDATOR EPRDSGS1 Assembly Instructions

WARNING
: Warning devices are strictly
regulated and governed by Federal, State and
Municipal ordinances. These devices shall be
used ONLY on approved vehicles. It is the sole
responsibility of the user of these devices to
ensure compliance.
BRACKET MOUNTING
Important: DO NOT over tighten
mounting screws or nuts. This could
cause permanent damage to the bracket
1. Locate flat mounting location for
Predator Light Bracket.
2. When position of bracket is determined
use supplied template for hole
locations.
3. Drive in Customer Supplied Hex Head
screws. Leave about a 1/16" space
between the mounting surface and
underside of screw head.
4. Place Light over screws using the
holes in brackets and slide to the right
to lock the brackets underneath the
head of the bolts.
5. Using a open-end wrench, tighten the
hex head bolts down tight to secure
the light to the mounting surface.
6. Adjust angle of the light to best suit
your application by loosening the 2
nuts on either end of the light.
7. After the Predator is set to the desired
angle, tighten the 2 nuts on either end
of the light. DO NOT OVER TIGHTEN
nuts as damage to bracket or light can
occur. Tighten nut until snug plus 1/8
turn.
8. Make electrical connections using the
following instructions.
!
WARNING
This product contains high intensity LED
devices. To prevent eye damage, DO NOT
stare into light beam at close range.
NOTE: The PREDATOR is a factory sealed
unit that CANNOT be serviced in the
field. Any attempt to gain access to the
PREDATOR unit will most likely cause
permanent damage and void its warranty.
IMPORTANT: DO NOT connect this
device to a strobe power supply.
OPERATING INSTRUCTIONS
See setup procedure on second page.
The single Predator comes equipped with
an internal flasher with 33 user selectable
patterns that can be synchronized either
alternating or simultaneous with up to
three other lights. It can also be put into
slave mode and driven through an
external flasher.
1. Connect the PREDATOR BLACK wire to
a good, convenient ground.
2. Connect the PREDATOR RED wire to
one side of a user supplied on/off switch.
Connect the other side of the switch,
through a 5Amp fuse, to a source of
+10-16Vdc.
BY SOUNDOFF SIGNAL
SINGLE EXTERIOR
DECK / GRILLE
WARNING SYSTEM
ASSEMBLY INSTRUCTIONS
EPRDSGS1(x)

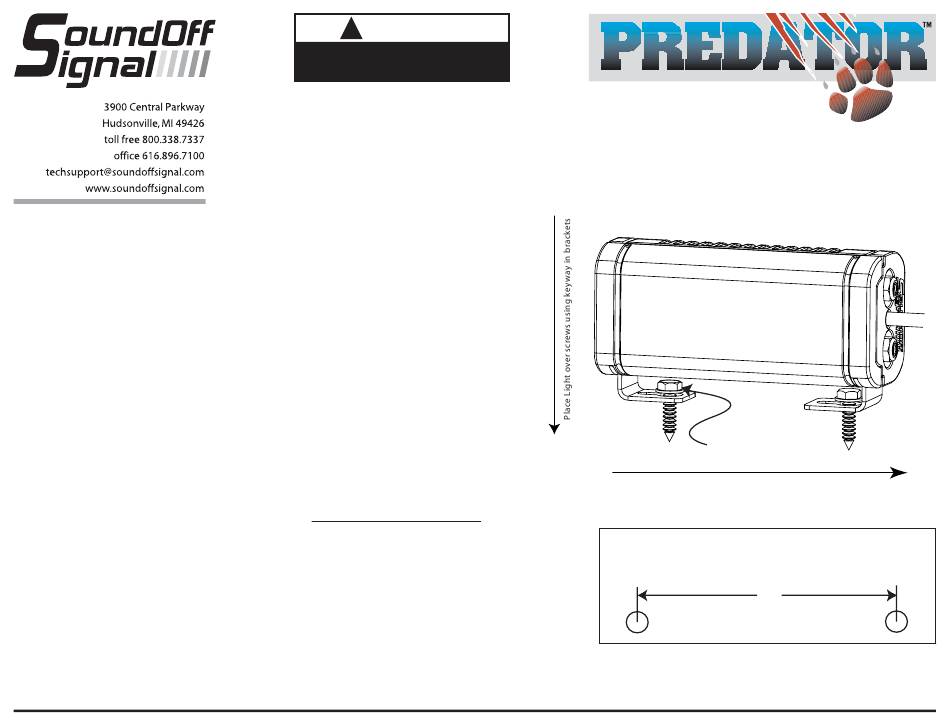

Install Screws (user supplied)
first using template on back
Slide Light to the Right and tighten screws using box end wrench
SCREW PLACEMENT DRILL TEMPLATE
(Be sure to use appropriate drill size for your screw size)
2.77
EPRDSGS1(x) 02/08
