Summary of Contents for MEWOI K3

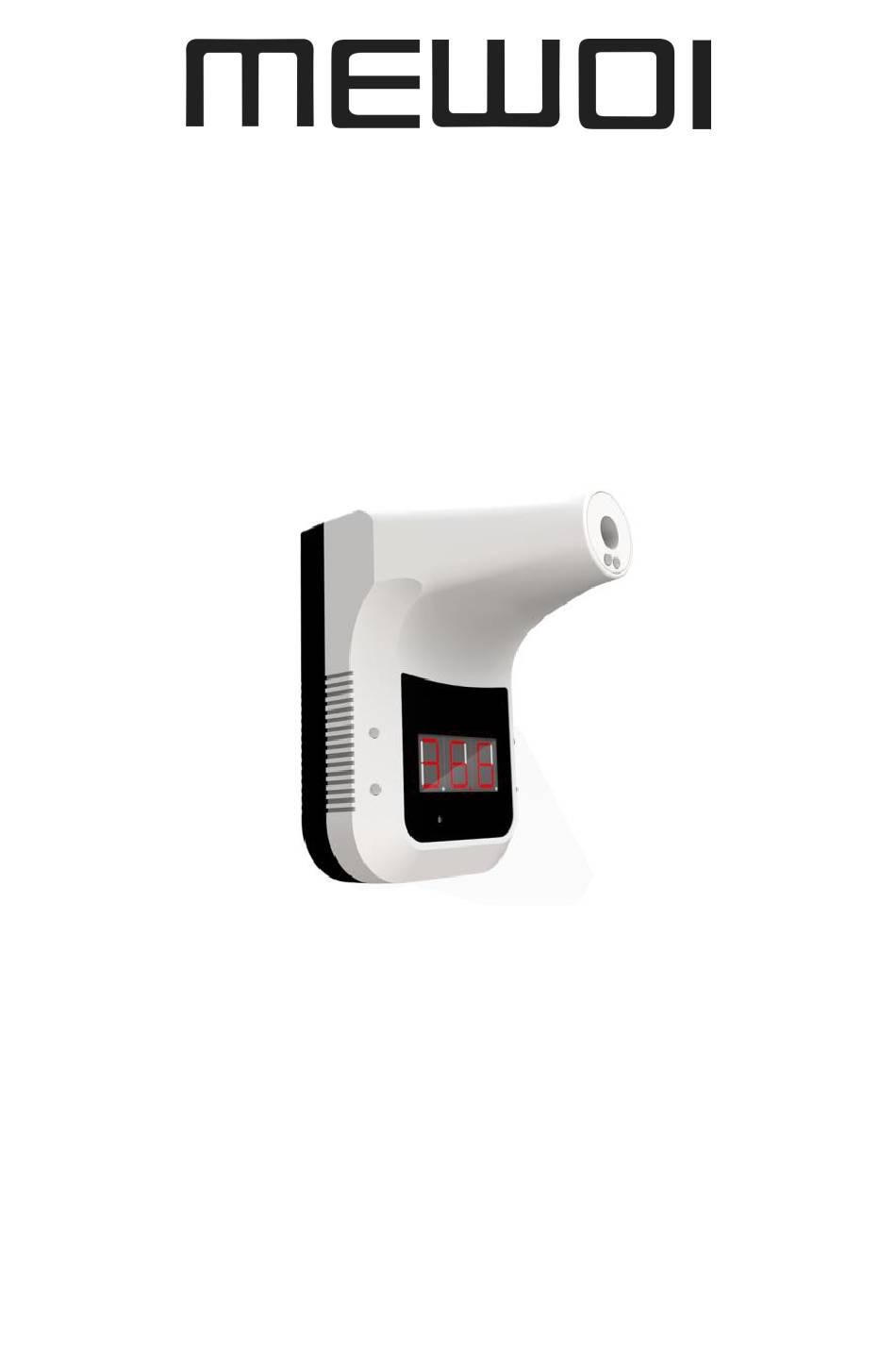

- Page 1 Infrared Thermometer MEWOI-K3 User Manual www.mewoi.com...
-
Page 3: Table Of Contents
CONTENT Brief Introduction ............... 1 Main Features ................2 III. Technical Specification .............. 2 Status description ..............4 Operating Instructions ............... 5 Precautions, Warnings and Tips ..........6 VII. Accessories ................7... -
Page 4: Brief Introduction
Brief Introduction 1, Tripod Fixing Hole 2, USB Port 3, Power Switch 4, Temperature Sensor 5, Distance Sensor 6, LCD Screen 7, Hanging Hole 8, Double Sided Adhesive Area 9, Sticker... -
Page 5: Main Features
II. Main Features 1. Non-contact, no need to hold, avoid cross infection. 2. New chip is adopted, the sensing time is faster (0.1s); the passing rate per minute is greatly improved (50 people / min). 3. High temperature measurement accuracy, accuracy tolerance: ± 0.2 (34 ~ 45 ℃) 4. - Page 6 Resolution ± 0.1º C Response Time 0.5S Measure Distance 5-10cm Standby Non-working time 5S standby, red dot dynamic cycle Screen Digital Display Input USB DC 5V 1500mA Power Supply USB Charging/ Battery (Support USB Power Adapter or Power Bank) Unit º...
-
Page 7: Status Description
IV. Status description 1. Standby: as shown in Figure 1, the red dot in the lower right corner of the display lights up in turn. 2. Insufficient power: as shown in Figure 2, the crossbar lights in the middle of the display. 3. -
Page 8: Operating Instructions
V. Operating Instructions 1. Temperature measurement: the measured object is facing the temperature measuring head as shown in Figure 7, and the temperature data can be measured by approaching it and hearing a beep. Figure 7 2. Mode switching: there is a small hole on the back of the device as shown in Figure 8. -
Page 9: Precautions, Warnings And Tips
3. Battery installation and replacement: (1) Remove the specification label, loosen the back three screws, (2) open the back cover and replace the 18650 lithium battery. 4. Schematic diagram of installation: suspension, double-sided adhesive tape, support fixation 1,Hang to wall 2, Fixed with tripod 3, Sponge glue paste VI. -
Page 10: Accessories
3. When changing the use environment, the equipment shall be left standing for more than 30 minutes. 4. Please put your forehead on the thermometer. 5. It is recommended not to use it outdoors or under strong light. 6. The equipment shall be far away from air conditioning port, fan and other equipment during use. - Page 12 esting pecialist...
