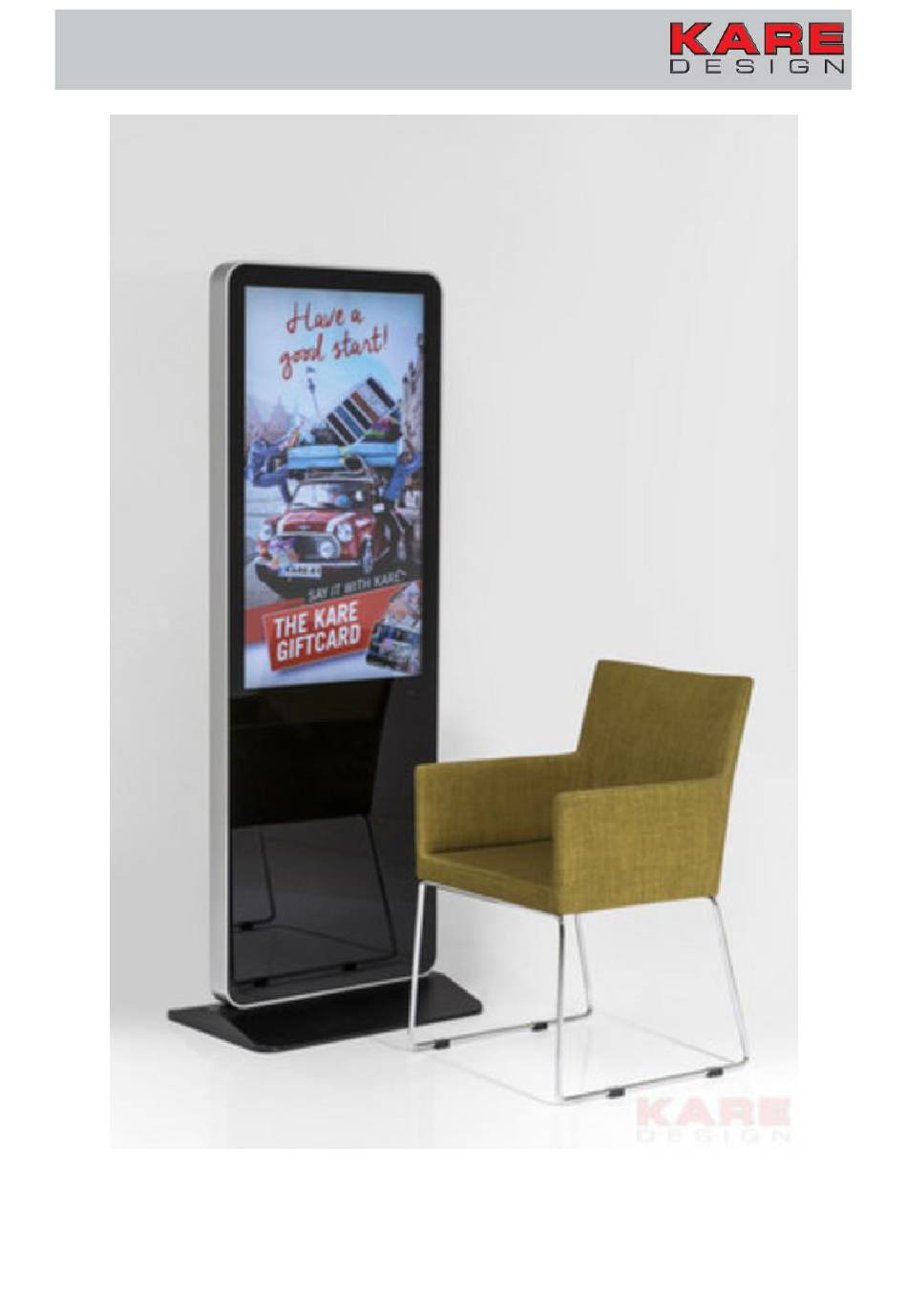

Manual for Display Signage (20306)

User Manual

Need help?

Do you have a question about the 20306 and is the answer not in the manual?

Questions and answers

Summary of Contents for KARE design 20306

Page 2 Manual for Display Signage (20306) Index (wir bei der fertigen Version erstellt) Enclosed content 1x Display 1x Foot 8x Screws for foot 1x Hex-wrench 1x key for each of the flap on the backside (one big and one small) © KARE Design GmbH...
Page 3 Manual for Display Signage (20306) 1. How to connect the foot with the display Please find all related accessory in the small packet. Please use the hex-wrench (see picture below) to tighten the 8 screws into the foot. Deploy the display upright and connect the power cable.
Page 4 Manual for Display Signage (20306) 2 Connect the display with your WLAN network. Plug your mouse (USB-port necessary) into the display. Click the right key on your mouse to exit the running system and click “ok” to get to the sreen desktop.
Page 5 Manual for Display Signage (20306) Now choose your language. You can play videos and presentations from USB. Just download the content, put the content you like to play on the USB-stick and plug it to the USB-Port on the backside of the display.
Page 6 Manual for Display Signage (20306) If you like to use the Digital Signage Software via LAN or WLAN, go to “settings”/WLAN and click on your WLAN IP. Then enter your Password and click “save”. Please note down your WLAN IP for connection with your Server / PC! 3 Register Server IP address in system.
Page 7 Manual for Display Signage (20306) Now please press the middle roller on your mouse. You will see the right image on the bottom of screen, and then click “register” with left key on mouse. Click “change account” and set your server PC’s IP address into the first blank. Then name this machine, f.e.
Page 8 Manual for Display Signage (20306) 4. Install digital signage software on your server PC Now you need a PC as server PC with win7 system (notice: windows server 2008 will be better). To install our digital signage software, unzip the digital signage software on your computer.
Page 9 Manual for Display Signage (20306) A prompt will occur, please answer it with yes and choose the task bar “player”. To add a new player please choose Server Address and type in the Players WLAN IP, which you already used in the KIOSK WLAN menu.
Page 10 Manual for Display Signage (20306) Operating digital signage software on PC. To launch Signagelink software, click Digital Signage icon your computer desktop. If you are logging from the computer other than the server, launch Internet Explorer and type url http://serverIP/webedit There is a pre-define Admin account “sa”.
Page 11: System Administration
Manual for Display Signage (20306) System Administration New User Account To create a new user account, click Admin →User→New. Enter User ID and Name. And then choose an organization and assign appropriate roles. When you have done, click Submit. 1.2 Delete User Account To delete a user account, click Admin →User→Select User→Click Delete...
Page 12 Manual for Display Signage (20306) 1.3 Change Password To change password for a user, login with the User ID, then click change You need to enter the old password, new password and confirm password. And then click Ok. © KARE Design GmbH...
Page 13 Manual for Display Signage (20306) 1.4 Create New Role Click Admin →Role→ New, Enter name, apply level and then choose the permission for the role. Click submit © KARE Design GmbH...
Page 14 Manual for Display Signage (20306) 1.5 Parameter dictionary 1.5.1 Create Screen Resolution Click Edit→New→Enter Width and Height →Save. If you click add, you can continue to add new resolutions © KARE Design GmbH...
Page 15 Manual for Display Signage (20306) 1.5.2 Resource Category Click edit→New→Enter new folder name and select classification→ Save © KARE Design GmbH...
Page 16 Manual for Display Signage (20306) 1.5.3 Component Config Click edit→Config→Select the components→Save © KARE Design GmbH...
Page 18 Manual for Display Signage (20306) 1.5.4 Edit Approval Click Edit→Edit→Choose the approval type (default type is Level one approval)→Save You can choose Level one approval、Level two approval and No approval required. © KARE Design GmbH...
Page 20 Manual for Display Signage (20306) 1.5.5 Data Collection Service If you have any real time data want to show in the content, you could use the customer Data Service. © KARE Design GmbH...
Page 22 Manual for Display Signage (20306) Resources Resource menus are used to maintain Video, Image, Music, Template and PDF files. The Template menu is used to maintain predefined templates and user templates. 2.1 Video To maintain files, click Resources → Material. You can upload or delete video, image,text,music,flash from system.
Page 23 Manual for Display Signage (20306) To delete a video file, select the video file and then click Delete. © KARE Design GmbH...
Page 24 Manual for Display Signage (20306) Then click OK. The file will be deleted. 2.2 Image, Music, Text, Flash Follow the same steps as video files to maintain image, music, text files. The text file means Microsoft Word, Excel and PowerPoint. Word, Excel and PPT will be converted into PDF format directly, for Android system does not support Microsoft office.
Page 25 Manual for Display Signage (20306) Enter template name and resolution, After you complete the design, click © KARE Design GmbH...
Page 26 Manual for Display Signage (20306) 3 Content Managements 3.1Create New Contents To create content, click New Content The system will take you to Content Design Studio. Choose position 2 to switch to the new editor For a quick upload and publish of a movie make sure the mp4 movie is...
Page 27 Manual for Display Signage (20306) safed on your Server / PC … 1. Choose the arrow 2. first choose the button “Upload File” on top on the right site, then click on “Browse”, this opens your windows explorer where you choose a movie, the File will be loaded, finally close “UploadFile”...
Page 28 Manual for Display Signage (20306) 3. next screen hook the uploaded movie in the upper part, then Add, then hook it on the lower part, click ok. 4. type a name in Content: and choose 1080 x 1920 from dropdown menu...
Page 29 Manual for Display Signage (20306) 6. Publishing Settings: hook Player 1, check if its listed in the Content List- otherwise select 7. Approval settings: press Completed © KARE Design GmbH...
Page 30 Manual for Display Signage (20306) 8. Download Detail: the movie will be downloaded…. The mp4 should be uploaded and be played on the KIOSK machine © KARE Design GmbH...
Page 31 Manual for Display Signage (20306) The Scene Name and Play Time (how long the scene will be played) are required for a scene. Enter the name for the scene and time it will play (in seconds). Then you can start your content design.
Page 32 Manual for Display Signage (20306) icon. The following lists are some of the icons. • This function supports touch screen. You can use the link to create Customer interactive scene • Used to edit text on selected area • Font color •...
Page 33 Manual for Display Signage (20306) • Insert pdf file • Insert pdf file 2.3.1 Image To add an image to the scene, click image icon . Select an image from the list, e.g. Jellyfish.jpg. Double click the name. Use your mouse to realize and move to the location your desired. Then click anywhere on the screen to release your selection.
Page 34 Manual for Display Signage (20306) Font selection Font size Bold, Italic and underline Font color and highlight Alignment Numbering and Bullet Decrease Indent and Increase Indent When you have done, deselect the text area by click anywhere on the screen.
Page 35 Manual for Display Signage (20306) You can choose the font and set the font size and color. You can also adjust the scroll text speed, direction and type. Then click OK. Use the mouse to select the scroll text you just created, realize and move to your desired location.
Page 36 Manual for Display Signage (20306) completed your design, you can publish the content. If you click OK, the content will be saved. If you click , then it will go to publish screen. 2.4 Delete Contents To delete content, click Manage. Select the content you want to delete.
Page 38 Manual for Display Signage (20306) 2.5 Schedule and Publish Contents 2.5.1 Schedule After you finish your content design and click , the system will automatically load content schedule screen. You can also navigate to this screen by click Publish. After click publish, it goes publishing settings.
Page 39 Manual for Display Signage (20306) You must set content expiration time. Select means that “The content will be continuously played in expiration time”. Select means that “The content will play by weekly or monthly” © KARE Design GmbH...
Page 40 Manual for Display Signage (20306) Select means that you can set the start date and end date; start time and end time as you like. If you check , it means this content has priority to be played at the time you set. You can select type.
Page 41 Manual for Display Signage (20306) After you have finished the setting, add the player(s), click button. Then it goes to the approval page. © KARE Design GmbH...
Page 42 Manual for Display Signage (20306) Select , If you select reject, you should add remark. Select , then click Then click ok. © KARE Design GmbH...
Page 43 Manual for Display Signage (20306) The following screen shows the sample content played. 2.6 Delete Content from Players There are two ways to delete the content. A. To delete content from players, click Player→Player information→ © KARE Design GmbH...
Page 45 Manual for Display Signage (20306) Check the content you would like to delete, and then click Delete. B. Click Content→Delete Player Content→Select the content you want to delete→click Delete © KARE Design GmbH...
Page 47: Player Information
Manual for Display Signage (20306) 4, Player Monitoring 2.7 Player Information To view player information, click player→player information You can see player information such as Player ID, Player Name, Organization and so on. If you want to delete a player from the list, check...
Page 48 Manual for Display Signage (20306) Click OK to confirm the action. 2.8 Player Monitoring To monitor player, click player→player Monitor. The screen shows the information about players. To view detailed information, click the link under Player Name, e.g. XY. If you want to look the current content of a player, you can click .Wait...
Page 49 Manual for Display Signage (20306) If you want to reboot the player computer, click Change the volume of the player, click and choose the volume. 2.9 Caption This function allows you to insert the message. Choose the player name © KARE Design GmbH...
Page 50 Manual for Display Signage (20306) F,Additional If there are no any network connection for some place where the machine is located, you can prepare a empty USB memory card, 4GB or 8GB is ok, which depend on the quantity of video and photos. You also need use software to edit these ads content in computer, above edit ads contents steps , see above instruction.
Page 51 Manual for Display Signage (20306) Click “Export” with your mouse, you will see the following image : Click “OK”with your mouse, and then you will see the tips from window, you need name the file and then save as it to USB memory card.
Page 52 Manual for Display Signage (20306) out USB memory card from machine. If you still have question about software , you can contact salesman from our company. © KARE Design GmbH...
