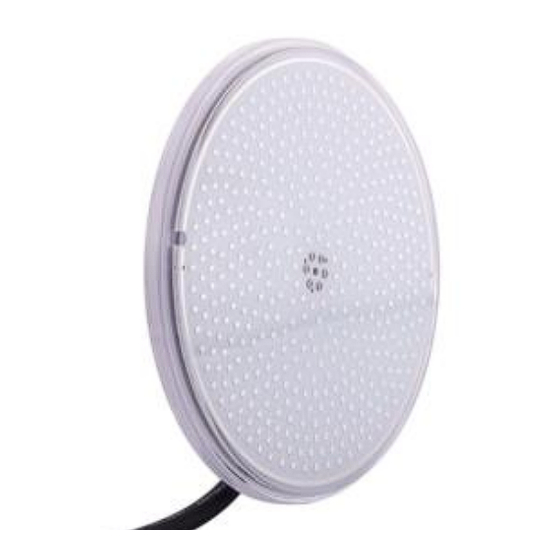

FLOTIDE SMD2835 LED Instruction Manual

Instruction Manual for Resin Filled LED Underwater Light
IMPORTANT: This manual includes essential information on the safety measures to be
implemented for installation and start-up. Therefore, the installer, as well as the user,
must read these instructions before beginning installation and start-up.
Technical Specification
Standard input voltage: 12V ; Standard input watt:
SMD2835 LED
252 LED 333 LED 450 LED
18~20W 22~24W 33~35W
Use life: 30,000 hours
Single color : Cool White ,Pure White , Warm White ,Blue, Red, Green
RGB & RGBW : Switch control , Remote control , External control modes.
To Operate the lights:
1. White only, Warm White only, or other single color only lights (12AC/DC ,2 wires out )
Note: To prevent risk of fire which could result in property damage and to ensure optimum
performance , do not exceed the load factor specified in the instruction provided by the
transformer manufacture .
These lights are not dimmable, and are not compatible with dimmer switches or dimmer relays .
They can be wired into a switch or manually turn ON/OFF the lights.
2.1. RGB Switch control mode. (12VAC ,2 wires out)
See the below of 16 color modes sequence.
1. Evening sea: slow animation blue/purple
3. Riviera: slow animation blue/cyan
630 LED
40~42W
2. Evening rivers: slow animation green/yellow
4. White: neutral white
5. Rainbow: slow animation in green/blue/green+blue/red+blue/green+blue/RGB/red
6. River of colors: slow animation in red/green/blue/green+blue/red+blue/green+blue/RGB,
followed by program 8
7. Disco: fast animation, (fast-slow) followed by program 5
8. Four seasons: slow animation in red+green/green/green+blue/blue/violet/red
9. Party: fast animation, (fast-slow) followed by program 6
10. White: sun white. 11. Red: fixed color red
13. Blue: fixed color blue .14. Green-blue: fixed color green/blue(cyan)
15. Red-green: fixed color red/green(yellow) 16. Blue-red: fixed color blue-red(purple)
2.2. RGBW Switch control mode. ( 12VAC ,2 wires out)
See the below of 15 color modes sequence.
1. Evening sea: slow animation blue/purple
3. Riviera: slow animation blue/cyan
5. Rainbow : R→G→B→W→RW→RG→GW→BW→GB→RB→RGB→RGW→RBW→
GBW→RGBW color gradual changing
6.Disco: R→G→B→W→RW→RG→GW→BW→GB→RB→RGB→RGW→RBW→GBW→
RGBW color flashing
7. Four seasons: RGBW→RG↓B↓ W↓→ R↓G↑→G↓B↑ →B↓W↑ →R↑G↑B↑W
auto changing
8.Party: R→G→B→W→RW→RG→GW→BW→GB→RB→RGB→RGW→RBW→GBW→
RGBW color jump changing
9. White: pure white 10. Red: fixed color red
12. Blue: fixed color blue 13. Green-blue: fixed color green/blue(cyan)
14. Red-green: fixed color red/green(yellow) 15. Blue-red: fixed color blue-red(purple)
To Operate these RGB/RGBW lights:
• The 15/16 pre-programmed effects and combinations may be selected using the on/off switch
of your pool lights. Just switch off and switch on within 3 second. (Switch control)
• If the light is powered off for more than 20 seconds, it will keep the latest program when it is
turned on again.(Memory Function)
• To achieve synchronization, confirm all lamps are installed correctly on the same switch, after
they are powered off for more than 20 seconds, switch on and switch off continuously 3 times,
and then finally turn them on again. They will all go to program 1. Now you can select a program
for them by switch off and on within 3 seconds .(Re-set Function)
12. Green: fixed color green
2. Evening rivers: slow animation green/yellow
4. White: sun white
11. Green: fixed color green
