ICON AIRFLOW PCM Manual

Modules for 230V Fan Range

Installation and Operating Guide

Electrical installation

All electrical installation work to be carried out by an ap-
proved competent person in compliance with U.K. Building
Regulations and to the latest IET standards, or the appropri-
ate regulations in the country of installation. (for fan installa-
tion see the iCON 230V Fan Range Installation and Operat-
ing Guide).

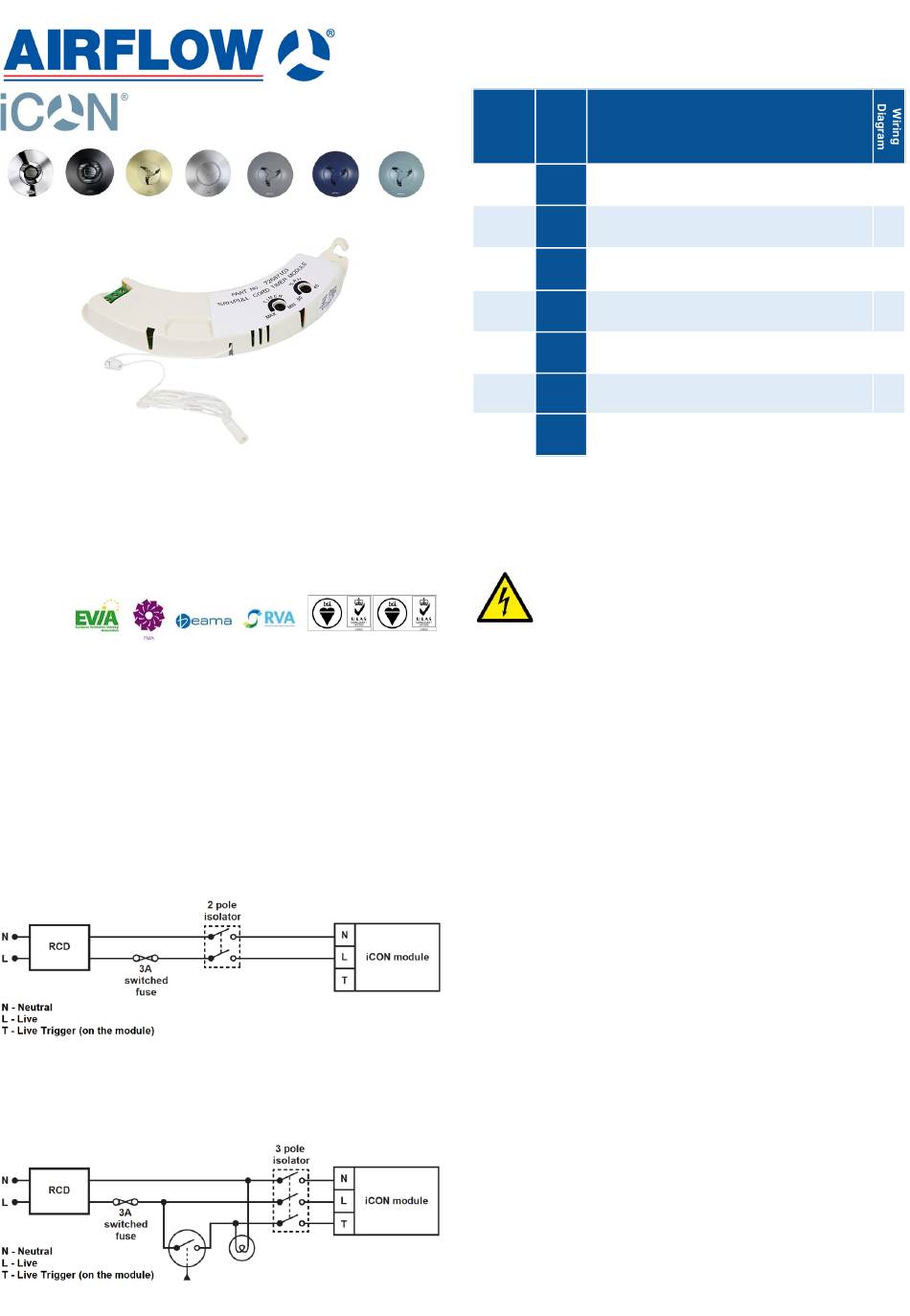

Diagram A - module wiring with no external switching
(module functionality / pull cord activation only):
Diagram B - module wiring with external switching (live
trigger connection used):
PCM – 72573602
TM – 72612601
DTM – 72675702
HTM – 72687103
PRTM – 72687104
PRHTM – 72687102
2SHM – 72675703
Certificate No. EMS 569454
BS EN ISO 14001:2015
Page 3 of 8
iCON 230V Fan Range Available Modules
Airflow iCON fans can be controlled by optional control mod-
ules. For the 230V range you can choose between seven
modules.
Part no* Model
72573602 PCM
72612601 TM
72675702 DTM
72687103 HTM
72687104 PRTM
72687102 PRHTM
72675703 2SHM**
* For blister pack add "B" at the end of part number.
** Not for kitchen applications with iCON 15! Approved Document Part F required
continuous extract rates: 6 l/s for WC, 8 l/s for bathroom / utility room and 13 l/s for
kitchen.
SAFETY FIRST: ALWAYS ISOLATE THE FAN
UNIT FROM THE POWER SUPPLY BEFORE
DOING ANY WORK ON THE FAN/MODULE.
Certificate No. FM 00152
BS EN ISO 9001:2015
To install the module in an iCON fan follow the instructions
below. See page 5 - 8 for instructional drawings.
1. Remove the iCON fan front cover (see page 5).
2. Lift the fan electrical terminal away from its mounting pillars
and position on the module connector pins. Tighten the two
screws with a suitable screwdriver. Ensure the leads are
under the module retaining cable clamp.
3. Fit the module at a slight angle into the fan housing, ensur-
ing that the locating slot is fully engaged in to the locating
block on the fan.
4. Push the module against housing, ensuring the module clip
holds it in place (clicks at the cable clamp). With iCON 15
& 30 the terminal will reposition back over mounting pillars.
Modules with pull cord: Ensure that the pull cord is properly
located within the cord slot at the bottom of the fan.
Modules with PIR control: Remove the oval logo cap fitted
at the bottom of the front cover of the fan. Replace it with
translucent lens supplied with the PIR module. Note: The
lens must be replaced in order for the PIR module to function
properly. Ensure the orientation of the lens is correct (i.e. the
lens should be flush with the surface).
Connecting mains cable into the module
Connect the cable to the 3-way supply connector block (see
wiring diagrams on page 3) ensuring that the supplied cable
clamp is fitted. Refit the front cover.
Note: When using DTM module on initial connection the fan
will start immediately and continue running for the duration
set on the timer function of the module.
Description
Pull cord
(Manual on/off)
Timer
(Run on timer 1 - 30 min)
Delayed timer
(2 min delay, Run on timer 2 - 45 min, Pull cord)
Humidity timer
(40 - 90% RH, Run on timer 2 - 45 min, Pull
cord)
PIR timer
(Motion sensor, Run on timer 2 - 45min)
PIR humidity timer
(Motion sensor, 40 - 90% RH, Run on timer
2 - 45 min)
2 speed humidity
(Low speed 8 or 13 l/s, Boost at 40 - 90%
RH, Pull Cord)
Page 2 of 8
Mechanical Installation
Page 4 of 8
A
B
B
A, B
A, B
A, B
A, B
