RIDGE RYDER 150PSI Owner's Manual

THERMAL CUT-OFF AND CIRCUIT BREAKER PROTECTION

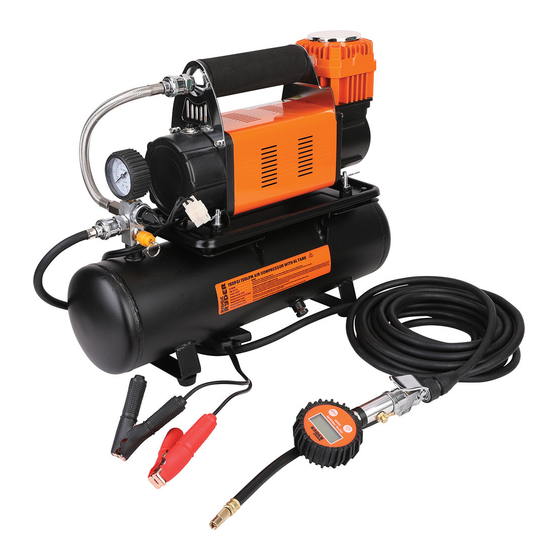

This RIDGE RYDER Air Compressor with 6L Tank is equipped with an automatic thermal cut-off
protection. If the unit reaches unsafe operating temperature, a protection circuit will activate
cutting off all power of the unit to prevent damage. Immediately disconnect the unit from the
power source and allow it to cool if the protection circuit activates. The unit should take approxi-
mately 20 minutes to cool depending on ambient conditions. The unit protection circuit will
automatically reset when the temperature returns to a safe operating level. Always allow your air
compressor to cool before reuse. Check the circuit breaker if the air compressor stops during
operation, reset if necessary.
MAINTENANCE
• All moving parts within the air compressor have been permanently Iubricated during manufacture.
It is NOT necessary to lubricate this air compressor.
• Before and after each use, carefully inspect the compressor unit and hoses for signs of damage.
• Check the air filter regularly, at least every six months. Simply remove the cover and clean the
air filter. To clean the filter gently wash in mild soapy water and rinse well. Replace if worn.
SPECIFICATIONS：
Voltage: 12 Volt DC
Maximum Pressure: 150 PSI
Maximum Air Flow: 150 Litres Per Minute
Over Pressure Protection When The Pressure Exceeds 125 PSI
Inline Fuse: 60A
Maximum Voltage: 13.8 Volt
Maximum Amp Draw: 45 Amp
Duty Cycle: 30 Minutes at 40 PSI
Maximum Operating Temperature: 60℃
Minimum Operating Temperature: -40℃
Electrical Current Protection: Circuit Breaker with Reset Button
Thermal Cut-off Protection: Automatic Thermal Cut-off at I05℃
Motor Output Power: 0.7HP Permanent Magnetic Motor
Cylinder Diameter: 60mm
Power Cord: 3 Metres Heavy Duty Wiring With Durable Battery Clamps
Rubber Air Hose: 8 Metres
Valve Connectors: 1 X Screw-on Brass Inflator and 1 X Thumb Lock Adaptor
Tank Pressure Gauge: 0-150 PSI / 0-1, 034 kPa Multi Readings
Digital gauge: 0-150 PSI / 0-1, 034 kPa / 0-10.34BAR / 0-10.54KG/M² Multi Readings
Solid Base Plate: Metal Sand Tray With Rubber Anti - Vibration Feet - Can be Permanently
Mounted To a Vehicle
Air Filter: Built-ln Cleanable Sponge Filter
Accessories: 3 X Nozzle Adaptors for Camping and Sporting Equipment
60A Inline Fuse
PLU: 605484 CODE: YD-127-6L
Manufactured & packaged for
SRGS PTY LTD
ABN 23 113 230 050
6 Coulthards Avenue
Strathpine QLD 4500, Australia
MADE IN CHINA
Recyclable Paper
