Speco STH8 Quick Start Manual

S T H 8
S T H 8
Stackable Top Hat for G86TG/G86TG

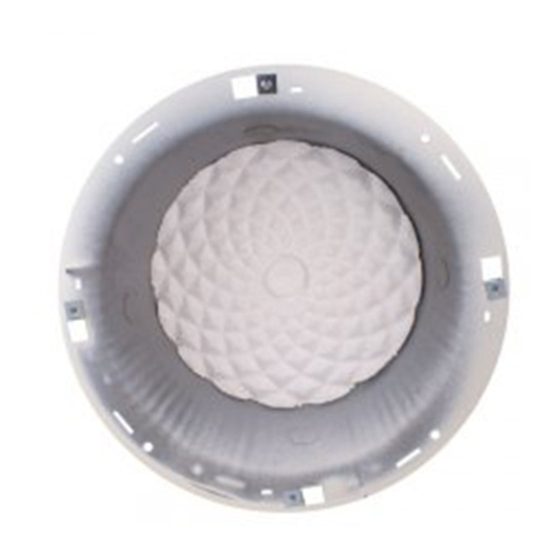

Thank you for your choice of Speco Technologies' STH8 speaker backcan. This unit is designed and manufactured
to provide an economical solution for protecting and improving the sound of your G86TG or G86TCG speakers.
The steel construction and USA manufacturing help ensure a long product lifespan. This unit should be used with
the TS8 tile support.

INSTALLATION INSTRUCTIONS:

Mark and cut ceiling tile as shown in the
1)
TS8 support instructions.
Bend up (4) horseshoe tabs on mounting
2)
support as shown in Figure A.
Choose entry point to the STH8 and
3)
remove either 1/2" or 3/4" knock-out as
required.
Orient the STH over tile bridge, lining up
4)
slots with the (4) horseshoe tabs.
With pliers, twist tabs 1/2 turn, securing
5)
the STH8 to the mounting support.
Tie-Off using straps on backbox as
6)
required.
Be aware of local code or AHJ
7)
requirements when installing.
