Everflourish EMD201 Instruction Manual

Item no. EMD201

Functions

A.
1. The Plug-in Dimmer dims your light to save energy. It also provides a
comfortable ambiance anytime you wish.
2. Can be used for incandescent, halogen lighting and majority of LED lighting.
B.

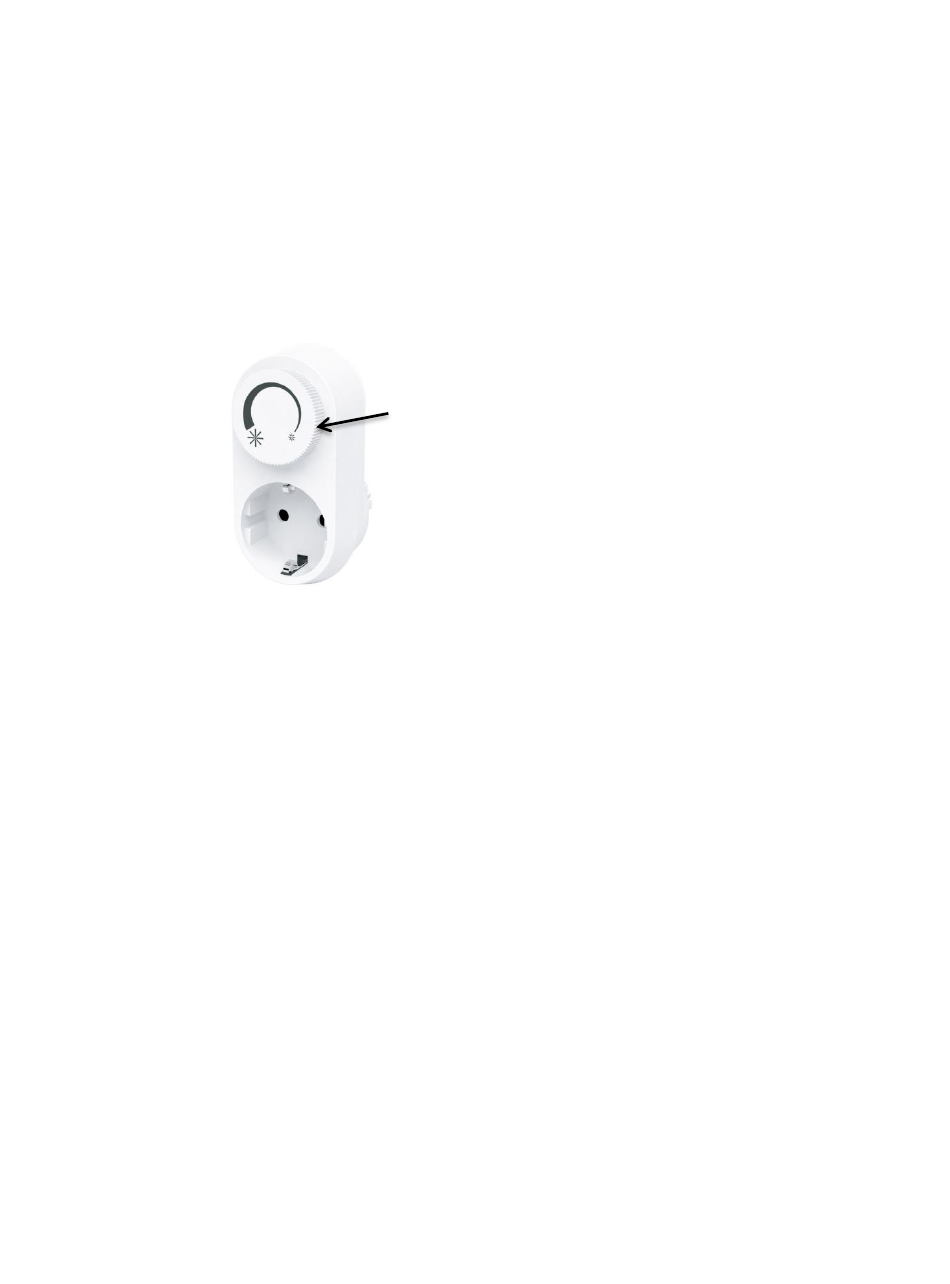

Diagram

C.

Instruction

3. Ensure the appliance and dimmer are switched off before connecting to the
socket. (To turn off the dimmer, turn the knob anti-clockwise until hear "click".)
4. Connect the dimmer to the AC socket.
5. Connect the lighting appliance to the dimmer's outlet.
6. Turn the knob clockwise to turn on the light and dim.
D.
Cautions
1. For INDOOR USE ONLY
2. DO NOT disconnect the appliance while the dimmer is on
3. The input voltage should be conformed to below specifications
4. The dimmer is NOT suitable for all fluorescent lighting, dimmable LED lighting
5. DO NOT connect after each other.
6. Only voltage free if the plug is pulled.
7. DO NOT cover when in use
8. Knob rotational torque ≤1Kgf.cm
9. ON/OFF torque 50～300gf.cm
E.

Specification

Power rating:
Wattage:
Instruction Manual
LED Dimmer
Adjustment knob
230V~, 50Hz
incandescent/halogen lighting
LV-halogen lighting with electronic step-down converter 30-200W
specified LED lighting
30-200W
3-24W
