WILHELM KELLER OILPRESS 180.902 Installation, Maintenance And Use Instructions

Installation, maintenance and usage instructions
Pressure Storage
Vessel
Single-line removal, no return flow.
For all interlinked battery tank systems without non-return valves in the suction line,
and for individual tanks without non-return valves in the suction line
(for further details, see under: No non-return valve may be installed in the suction line).
Tested to DIN EN 12514-1.
Construction and functional
description
The OILPRESS pressure storage vessels
type 180.902 and type 240.902 are used to
transport heating oil to EL DIN 51603 to one
or more consumer points.
The units consist of a casing with pressure
storage vessel, motor, pump and pressure
switch. During the transport process, the
heating oil is sucked in via the pump and
pressed into pressure storage vessel. The air
cushion in the storage vessel presses the oil
to the individual consumer points.
The motor is switched on by the pressure
switch at a lower working pressure of 1.6 bar,
and switched off again on reaching the upper
working pressure of 2.6 bar.
Pump Type 180.902
The planetary gear pump is driven by the
motor through a reduction gear. The pump is
characterised by its quiet running and low
wear. The pump is protected against conta-
mination by dirt by means of a circular filter
fitted to the pump body.
Pump Type 240.902
The feed pump is a planetary gear pump
driven direct by the motor. The pump is
characterised by its quiet running and low
wear. The pump is protected against conta-
mination by dirt by means of a circular filter
fitted to the pump body.
Casing
The casing is the supporting element of all
components. It houses the pump, motor,
pressure switch, pressure storage vessel,
filter, over-pressure valve and drain valve.
Two taper union connections for the connec-
tion of 8-mm pipes and the plug screw with
non-return valve are fitted to the distributor
housing on the underside of the casing.
Wilhelm Keller
GmbH & Co. KG
Herdweg 1
72147 Nehren
DIN EN 12514-1
Type 180.902 · Type 240.902

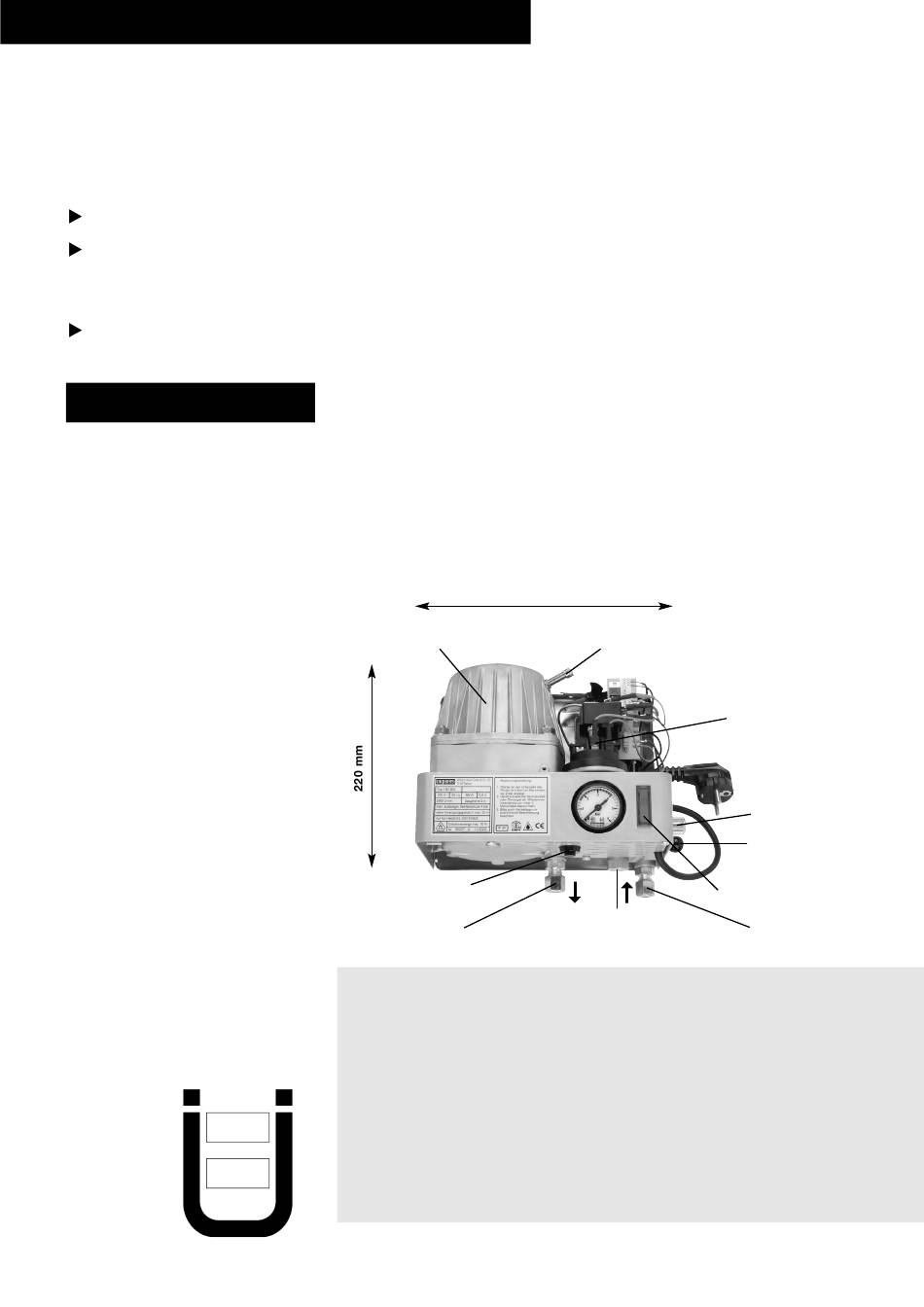

Pressure storage vessel
Disconnect the unit from the electrical power
supply before removing the cover hood (see
"Instructions"). The lower part of the pres-
sure storage vessel is moulded into the
casing. A cylindrical diaphragm is clamped
between the lower and upper part, separa-
ting the air from the oil. An initial air pressure
of 1 bar is applied to the pressure storage
vessel through the valve located in the upper
part of the storage vessel. The air can there-
fore escape over the course of time by
Pressure storage vessel
initial pressure 1 bar
Starter button
Pressure connection
Technical data
Motor:
Delivery capacity:
Max. consumption:
Permissible working pressure:
Upper supply limit:
Suction head:
Pipe connection:
Protection type:
Temperature of supply medium:
Weight:
diffusion, increasing the switching frequency
of the pump. This change is corrected by
refilling the air cushion with the aid of an air
pump. When refilling with air, take care to
ensure that the test, over-pressure and drain
valve at the side of the unit are open. The ini-
tial air pressure in the pressure storage ves-
sel is correct when the manometer on the
pressure storage vessel shows 0 bar, and the
manometer on the pressure measurement
device (air pump) shows 1 bar.
245 mm
Air valve
Non-return valve
(ventilation)
Type 180.902
230 V ~ 88 W
22 l/h at 0 bar pressure
approx. 10 l/h
4.0 bar, limited by
over-pressure valve
adjustable up to 25 m,
factory set to 15 m
3 m
Taper union 8x1 mm
IP 34
max. 40°C
approx. 6 kg
Pressure switch
Filter
Test, over-pressure
and drain valve
Control lamp
Suction connection
Type 240.902
230 V ~ 50 W
46 l/h at 0 bar pressure
approx. 25 l/h
4.0 bar, limited by
over-pressure valve
adjustable up to 25 m,
factory set to 15 m
3 m
Taper union 8x1 mm
IP 34
max. 40°C
approx. 6 kg
