Speakerbus iE816 Quick Installation Manual

iE816 Expansion/iE801 Speaker Module, QS816/R3, May 2019
QUICK INSTALLATION GUIDE
Follow these quick steps to install your iE816
Expansion Module/iE801 Expansion Speaker
Module.

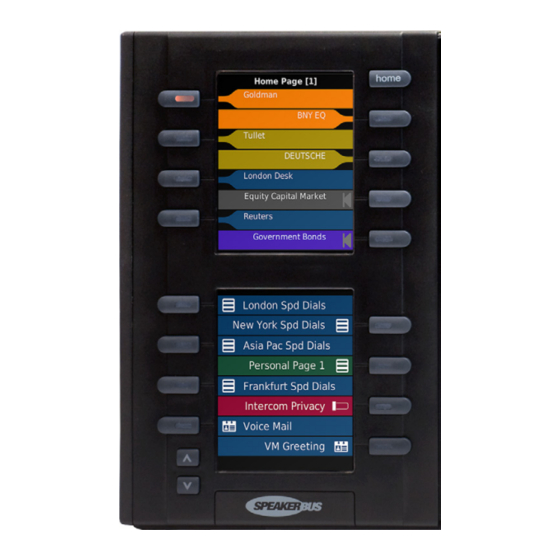

Thank you for choosing the iE816 Expansion Module/
iE801 Expansion Speaker Module. This guide
describes how to attach the iE816/iE801 to the iD808
Deskstation or to a Deskstation already fitted with an
iE816/iE801.
1. VERIFY THE FOLLOWING PACKAGE
CONTENTS
● iE816 Expansion Module/iE801 Expansion
Speaker Module
● Metal bracket (pre fitted to the rear of iE816
and/or supplied loose for the iE801)
● Interconnection Board
● Three (M3 x 6mm) screws
● Cable Tidy Clip
● Power Link Cable (only supplied with each
iE801)

2. REQUIRED TOOLS

Please ensure you have access to the tools below:
● Pozidriv screw driver (size:1)
● Allen keys (sizes 2.5 mm and 3.0 mm)

3. BEFORE YOU START

Before you start please ensure:
The mains power and cabling is removed from the
iD808 Deskstation or any existing iE801 (if fitted).
1. Remove microphone from the iD808
Deskstation.
WARNING! Please observe anti-static precautions
when connecting the interconnection board to both
iE816/iE801 Module(s) and iD808.

INSTALLING THE iE816/iE801 MODULE

1. Remove side end cheek and leg from the iD808,
iE816 or iE801
1. Remove the two A screws (using the 3 mm
Allen key) from the side of the iD808, iE816 or
iE801 side end cheek. Refer to Fig. A below.
Please discard these screws.

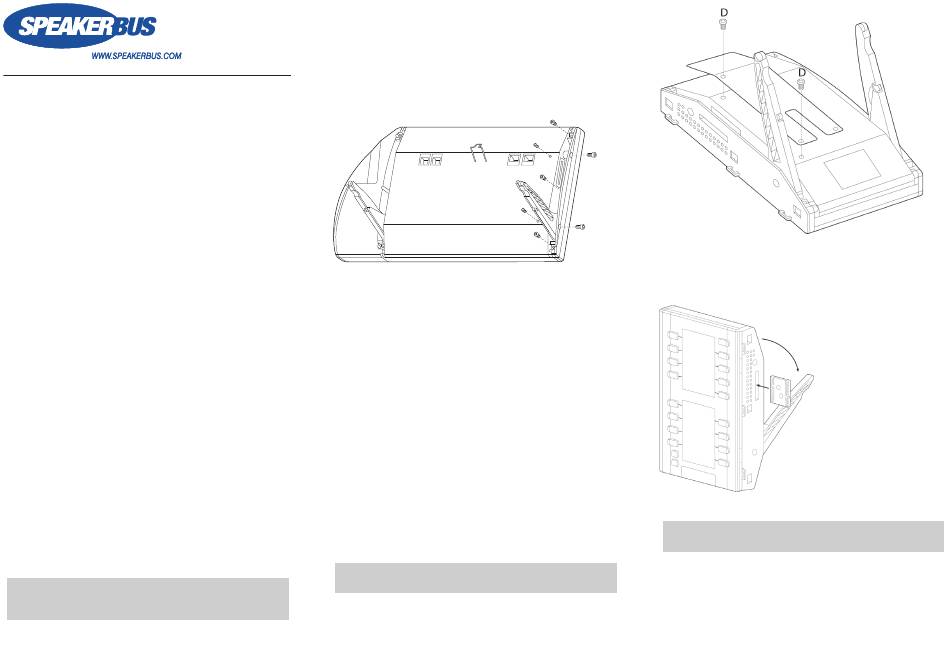

Fig. A
(Illustration of an iD808)
2. Remove the three C screws (if fitted) (using
the Pozidriv screw driver, size 1), and discard
them. Refer to Fig. A above.
3. Remove the two B screws (using the 2.5 mm
Allen key) located on the rear of the iD808,
iE816 or iE801. Refer to Fig. A above. Please
retain screws for later use.
4. Push side end cheek out and remove from the
iD808, iE816 or iE801. Please discard side
end cheek.

2. Prepare the iE816/iE801 Module

1. Remove two D screws (using the 2.5 mm
Allen key) and bracket (if fitted). Refer to Fig.
B. Please retain screws and metal bracket for
later use. Please note a bracket is not attached
to an iE801, the bracket is supplied loose.
Please remove the two D screws from the
iE801, and retain for later use.
WARNING! Do not remove the centre screw with the
security head.
C
B
A
C
B
A
C
Fig. B
2. Place interconnection board in iE816/iE801
Fig. C
IMPORTANT! Please note the above illustration is a
representation, and your module may differ slightly.
(Illustration of an iE816)
slot. Ensure leg position does not block access
to the slot beforehand. Refer to Fig. C below.
(Illustration of an iE816)
Page 1
