TELE NA003-M64 Quick Start Manual

RE
Danger! Never carry out work on live parts!
Danger of fatal injury!
The product must not be used in case of obvious damage!
To be installed by an authorized person only!
•
The full operation manual is available at:
https://www.tele-online.com/resources/data-sheets/en_na003-m64.pdf
•
This Quick Start Guide does not replace the manual and the owner should read in
conjunction with the whole Manual.
•
The safety instructions are to be observed
Intended use:

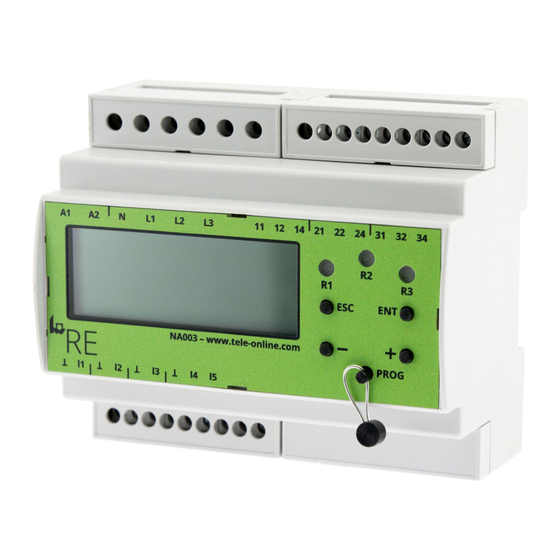

The TELE NA003-M64 is a multinational grid and system protection unit, that protects energy generation
plants ( like combined heat and power plants, wind generators, waterpower plants, photovoltaic plants).
In case of power failures or net anomalies, power gererating plants have to be disconnected immediately
from the mains supply to avoid unintentional feeding to the grid. On the one hand continuing grid
feeding could endanger maintenance staffs, on the other hand connected devices could be exposed to
inadmissible voltages and/or frequencies.
In case the grid operator requires thresholds and settings that are not conforming with the local standards,
it is possible to set thresholds outside the normative defined range!
Outside these range the device is not in accordance with the standards anymore and the corresponding
certificate loses validity! This state is indicated as „ncnf" [none conformity] on the display.
Settings outside the conformity range are therefore in responsibility of the operator respectively the
acceptance authority!
Safety advice:
The device was developed, produced and tested in accordance to the latest industry standards.
Nevertheless improper handling or use can endanger humans and machines.
Please use the device only in accordance with the installation and operating instructions. Check for secure
assembly and good condition. Moreover, the rules and regulations on accident prevention applicable to
the place of use must be strictly followed.
• Eliminate all faults immediately which may endanger safety!
• Do not make any unauthorised changes and only use replacement parts and optional
accessories purchased from or recommended by TELE!
• In case of obvious damage the device must be checked and replaced if necessary!
• Country specific regulations have to be considered in any case!
• If required by national standards, the NA003 has to be protected against unauthorized
changes by password and/or sealing!
Mounting on DIN rail according to EN 60715:
Snap the rear mounting clip of the device into place in such a way that a safe and tight fit is ensured.
Available configurations/Local standards:
CEI 0-21:2019, VDE 0126-1-1:2013, VDE 0124-100:2013, VDE 4105:2018 <50kW, VDE 4105:2018 >50kW,
VDE 4105:2018 Umr, G59/3/3:2015 LV, G99/1/3:2018 LV, G59/3/3:2015 MV, G99/1/3:2018 HV, G83/2:2012,
G98/1/2:2018, C10-11:2012 LV, C10-11:2019 LV-IP, C10-11:2019 LV-ASS, C10-11:2012 MV, C10-11:2019 HV-IP,
C10-11:2019 HV-ASS, TR3 Rev23:2013, VDE 4110:2018 TR3-25, OVE E 8001/8101:2014, OVE TOR R25 NS SYNC,
OVE TOR R25 NS ASYNC, OVE TOR R25 MS SYNC, OVE TOR R25 MS ASYNC, OOE TOR R25 NS SYNC, OOE TOR R25
NS ASYNC, OOE TOR R25 MS SYNC, OOE TOR R25 MS ASYNC, EN50438:2013, EN50438:2013 DK,
NRS 097-2-1:2017, AS/NZS 4777.2:2015, OPEN SETUP
NA003-M64
NA003
Part No.: 2700100D
Part No.:
Dimensions:
106,3 mm
Controls elements:
Legend Marking Type Function
1 R1, R2, R3 LED (yellow) Status indication output relays
2 ENT Pushbutton ENTER, Input confirmation, menu level forward
3 ESC Pushbutton ESCAPE, Input rejection, menu level back, test/reset
4 - Pushbutton Change parameters, menu navigation
5 + Pushbutton Change parameters, menu navigation
6 PROG Pushbutton (sealable) PROGRAM, enter program mode
LCD-Display 4x20
7 Display
characters
Terminals:
A1, A2 Supply
L1, L2, L3, N Measuring input
Relay channel A (CO contact)
11, 12, 14
Status indication via yellow LED R1
Relay channel B (CO contact)
21, 22, 24
Status indication via yellow LED R2
Relay channel D (CO contact)
31, 32, 34
Status indication via yellow LED R3
Digital input 1
I1, ┴
(Feedback contact contactor A)
Digital input 2
I2, ┴
(Feedback contact contactor B)
Digital input 3
I3, ┴
(Remote disconnection)
Digital inputs 4 und 5
I4, I5, ┴
(Parameter switchover)
Quick Start Guide
Technical data:
Supply circuit
Supply voltage:
Supply voltage tolerance:
Nominal consumption:
Rated frequency:
Tolerance of rated frequency:
1 Rated surge voltage:
Internal protection:
In order to ensure the proper function during power failures, an external UPS has to be used.
2
3
4
Measuring circuit
5
Measuring input:
6
Input impedance:
7
Measurand:
Measuring ranges
Line to line voltage:
25,5 mm
Line to neutral voltage:
48,3 mm
Frequency:
RoCoF:
62 mm
Pshift:
Overload capacity:
Overvoltage category:
Rated surge voltage:
Digital inputs
Type of contact:
Min. switching voltage/ switching current: 24V DC / 5mA
Output circuit
Number of contacts:
Contact material:
Rated current:
Electrical endurance:
Mechanical endurance:
Continous current value:
Short time value (1s):
Withstanding voltage across open contacts: Relay contacts: 1000V
Overvoltage category:
Rated surge voltage:
Protection:
Accuracy
DC: 24V
Voltage monitoring:
AC: 110 - 230V @ f: 48-63 Hz
Base accuracy:
A1: L (+)
Temperature influence:
A2: N (-)
Resolution:
Frequency monitoring:
U : 3x400V AC
Base accuracy:
N
Temperature influence:
Isolated changeover contact Resolution:
11: Common
12: Normally closed contact Isolation data
Rated insulation voltage:
14: Normally open contact
Supply circuit / Measuring circuit:
Isolated changeover contact
Supply circuit / Output circuit:
21: Common
Supply circuit / Digital inputs:
22: Normally closed contact
Output circuit / Measuring circuit:
24: Normally open contact
Output circuit / Digital inputs:
Isolated changeover contact
Environmental conditions
31: Common
Ambient temperature operation:
32: Normally closed contact
Ambient temperature storage:
34: Normally open contact
Visibility temperature display:
Relative humidity:
Contact input (24V/5mA), configurable
Pollution degree:
Input active: I1 connected to ┴
Weight:
Contact input (24V/5mA), configurable
Electrical connection
Input active: I2 connected to ┴
Wire size:
Does not apply to national standards without
Stripping length:
functional safety!
Electrical strength:
Contact input (24V/5mA), configurable
Torque:
Input active: NO->I3 to ┴ (std); NC->I3 open
Screw:
Applies to CEI 0-21
Protection class
Contact input (24V/5mA)
Seal wire
Input active: I4 or I5 connected to ┴
doc no.: 090750D
090 850
www.tele-online.com
DC: 24V AC: 110 - 230V
DC: ± 10% AC: ± 30%
max. 1,25W / 4VA @ 230V AC
50 / 60Hz
48 - 63Hz
6 kV
250V / 500mA slow blow (soldered)
3 x 400V AC
1MΩ
line to line voltage, line to neutral voltage,
10 minutes average voltage, frequency,
rate of change of frequency (RoCoF), phase shift (PShift)
0 - 560VAC
0 - 325VAC
40 - 65Hz
100mHz/s ... 2.000mHz/s
1 - 15°
Permanent 1,4 x U Pulse 1,6 x U (1 second)
Nom Nom
III
4 kV
Isolated, max. wire length <30m, control wiring standards
to be taken in account. The ┴ are not connectied to each other.
3 changeover contacts
AgNi
5A / 250V AC
100 x 10 switching cycles (AC-1)
3
15 x 10 switching cycles
6
5A
5A
Terminals: 450V
rms rms
III
4 kV
5A fast blow
< 0,5% @ +25°C
< 0,01% / °C
10mV
< 0,01Hz @ +25°C
< 0,0002Hz / °C
1mHz
400V
protective insulation
protective insulation
protective insulation
basic insulation
basic insulation
-25 ... +55°C
-40 ... +70°C
-15 ... +55°C
5 ... 95% (non-condensing)
2
300g
max. 2,5mm
2
max. 8mm
max. 450V/16A (digital inputs; relay outputs)
max. 750V/16A (measuring inputs)
max. 0,5Nm
M3, slot screwdriver 0,6 x 3,5mm
Terminals: IP20 Housing: IP20
max. diameter <=1,32mm
