1.4 Instructions for disposable or rechargeable batteries 1.5 Instructions for cleaning 1.6 Usage in professional security work Product description ® 2.1 EFIS – Ebinger vehicle inspection mirror ® 2.2 EFIS 1 Universal search mirror Unit components 3.1 Components 3.2 Identification Assembly and component exchange 4.1 Replacing the mirror head... -
Page 4: General Safety Guidelines
➋ Ensure that you follow the instructions in this manual for all work involving this unit! EBINGER and EBINGER‘s representatives accept no liability for losses that resulting from actions or activities that have not been described in this manual. -
Page 5: Handling Technical Faults
Do not continue to use devices with broken connection leads or components if they are damaged, since this presents a risk of electric shock! If parts are defective or missing, replace only with original EBINGER spare parts. Failure to do so may present a risk of short-circuits, overloading, in- correct polarity or electric shock. -
Page 6: Instructions For Cleaning
® EFIS CAUTION Observe the following safety precautions to avoid damage: • If the unit is to be stored or not used for a longer period, remove its di- posable or rechargeable batteries. • Avoid deep discharge of rechargeable batteries. As resulting damage can- not be claimed against product warranty. -
Page 7: Product Description
® 2.1 EFIS – Ebinger vehicle inspection mirror Ebinger Prüf- und Ortungstechnik GmbH offers a complete range of search and inspection mirrors and systems. ® The EFIS – search mirrors let you rapidly inspect areas that are difficult or impossible to view directly. - Page 8 ® EFIS Our mirrors have a wide range of application. They support the inspection of the under- side of vehicles, packing nets, spaces between or above items of furniture, as well as ca- vities and gaps or areas of buildings hidden from direct view. This allows a significantly better and thorough search, plus complete handling of inspection points.
-
Page 9: Unit Components

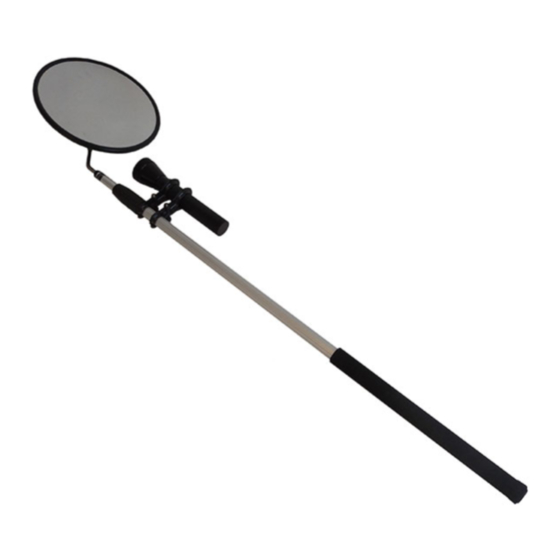

® EFIS 3. UNIT COMPONENTS ® This section informs you about the components of the EFIS 1 inspection mirror, and the features to unambiguously identify the unit. 3.1 Components ® The EFIS 1 Search and Inspection Mirror consists of the following components: Mirror head (185 x 135 mm) with edge protection and knurled nuts ➊... -
Page 10: Assembly And Component Exchange
® EFIS 4. ASSEMBLY AND COMPONENT EXCHANGE ® As supplied, the EFIS 1 search mirror is already partly assembled. The section pro- vides you with information on how to change the mirror head and the torch (e.g. to change its batteries). ADViCE Before assembling components and parts, inspect these to ensure they are clean, undamaged and complete. -
Page 11: Removing The Torch
® EFIS Replacing the mirror reflector WArning Take great care not to damage the reflector; equally, also take care not to cut yourself on any existing sharp edges or splinters! 4.3 Removing the torch 1. Loosen the two wingnut bolts on the torch brackets. 2. -
Page 12: Changing The Torch Batteries
® EFIS 4.4 Changing the torch batteries The torch is powerd by: • 2 disposable D-cell dry batteries 1,5 V (IEC no. LR 20) or 2 rechargeable D-cell type batteries 1,2 V (IEC no. LR 20 rech.) CAUTiOn Do not mix dry batteries and rechargeable batteries! Take care not to damage the thread of the protective cap when replacing it! When using rechargeable batteries, follow manufacturer instructions. -
Page 13: Start-Up Procedure And Operation
® EFIS 5. START-UP PROCEDURE AND OPERATION This section familiarises you with the unit‘s various operating and display compon- ents. It provides you with details of the various procedures required for unit start- up and for checking the unit is functioning properly. To make this section easier to understand, we assume that you have as- sembled the unit according to the instructions in the previous section. -
Page 14: Changing The Orientation Of The Mirror Head
® EFIS 5.2 Changing the orientation of the mirror head The mirror can be set with its long side parallel or perpendicular to the handle and tilted left/right by approximately 50°. Changing the orientation of the mirror head 5.3 Using the torch To improve visibility in low light conditions, the torch can be used to illuminate the viewing area of the mirror. -
Page 15: How To Use The Search And Inspection Mirror
® EFIS 5.4 How to use the search and Inspection mirror The Search and Inspection Mirror can now be used. Use the telescopic handle to guide the mirror towards the object to be investigated. The rubber rim of the mirror prevents scrat- ching if it comes into contact with the object‘s surface. -
Page 16: Care And Troubleshooting
® EFIS 6. CARE AND TROUBLESHOOTING This section describes both general and specific care procedures that you should carry out as user. The section also gives some advice for troubleshooting concer- ning faults in the unit. 6.1 General equipment care Users should carry out the following maintenance procedures: •... -
Page 17: Troubleshooting
Knurled nut for EFIS1 mirror I0005686 I0005695 I0005686 Spiegelkopf komplett Mirror head (complete) U-Scheibe 6,4 / DIN 125 I0005142 Flat washer DIN 125 I0005142 I0001707 i0001707 Ersatzteilliste EFIS 1 Autor: F. Klösener Datum: 06.07.11 Blatt: 1/3 Dateiname: EFIS 1 01 Ersatzteilliste 20110706... -
Page 18: Dimensions
® EFIS 7.2 Dimensions Accessories and order details... -
Page 19: Components / Part Numbers / Weight
® EFIS 7.3 Components / part numbers / weight Part no. Weight Description Telescopic tube 2 x 100 cm (pre-assembled) HEFIS1 20 542g Tube cap KL 25 black I0005628 Torch bracket V 1_2_2 I0005629 Nut M6 / DIN 934 I0001783 Wingnut bolt M6 HEFIS1 101 11,5g... - Page 20 ® EFIS 2. Mirror head, wheeled 310 x 220 mm Part number: I0005200 Mirror reflector 310 x 220 mm Replacement wheel 50 x 19 x 6 mm G1 ➊ ➋ (without fixtures) Part number: I0005293 Part number: I0005201 ➊ ➁ Front Back 3.
-
Page 21: Technical Data
® EFIS 8. TECHNICAL DATA Telescopic tube handle approx. 1100 - 2000 mm length Materials Aluminium tube section with natural anodised finish, torsion-proof Mirror head approx. 185 x 135 mm Dimensions without protective can be pivoted approx. 135° horizontally and approx. 90° frame vertically Lamp type... - Page 22 ® EFIS NOTES Notes...
- Page 23 ® EFIS NOTES Notes...
- Page 24 EBINGER Prüf- und Ortungstechnik GmbH – whether in whole or in part – requires written consent from EBINGER Prüf- und Ortungstechnik GmbH. Photos: EB archive, C. Gerigk. R. Cornesse, G. Schiefer. UWEX®, UPEX®, TREX®, EBEX®, EPAD®, EPAS®, EFIS®, MAGNEX®, MAILEX®, PASSEX®...
