meitav-tec M4000MD Owner's Manual

Digital hvac analyzer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

M4000MD

Digital HVAC Analyzer

Owner's Manual

Table of Contents

Need help?

Do you have a question about the M4000MD and is the answer not in the manual?

Questions and answers

Summary of Contents for meitav-tec M4000MD

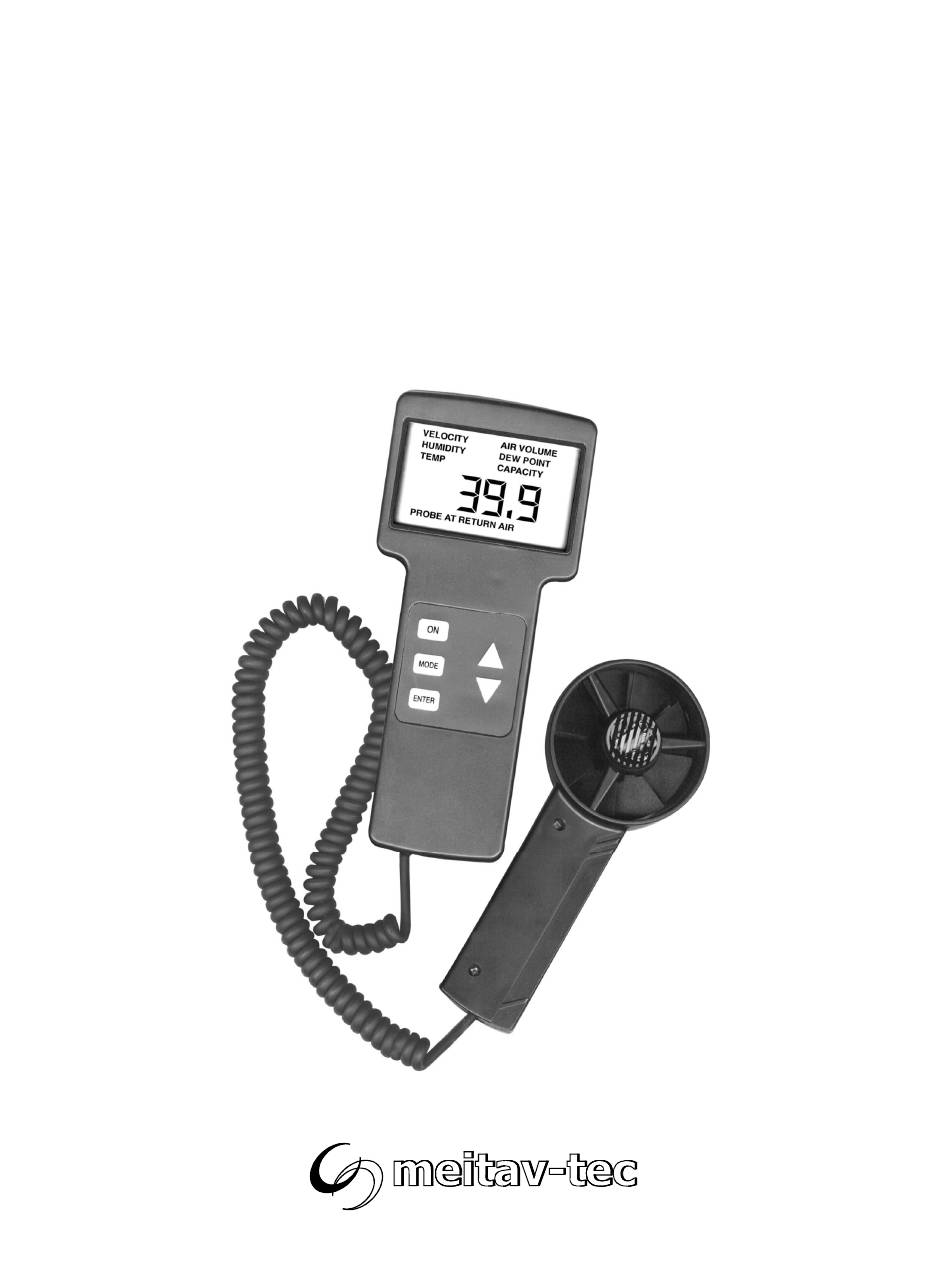

Page 1 M4000MD Digital HVAC Analyzer Owner’s Manual...
Page 2: Table Of Contents
5.4 MEASURING HUMIDITY LEVEL 5.5 MEASURING AIR VELOCITY 5.6 MEASURING AIR VOLUME 10-12 5.7 MEASURING CAPACITY 13-16 6. MAINTENANCE 6.1 LOW BATTERY INDICATION 6.2 BATTERY REPLACEMENT 7. SPECIFICATIONS www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 2...
Page 3: Introduction
For the best results with your new M4000MD, please read this manual carefully. It describes operation, care and additional information that will allow you to get the greatest benefit from your new instrument. www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 3...
Page 4: Features
Durable sensing mechanisms 1.8m (Six foot) coil cord Tough ABS housing 75 mm x 45 mm (3” x 1.75”) Large Liquid Crystal Display Carrying Case Included www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 4...
Page 5: Warnings & Precautions
Avoid contact with solvents and liquids. Avoid extreme mechanical shook or vibrations. Always take care to keep the coil cord free of rotating objects such as fan blades or cages. www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 5...
Page 6: Instrument Description
4. INSTRUMENT DESCRIPTION www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 6...
Page 7: Operating Instructions
English - Press [▼] Temperature ° C ° F Humidity Velocity meters/sec Width / Length Centimeter Air Volume /sec Capacity BTU/H Dew Point ° C °F www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 7...
Page 8: Turn The Unit On Or Off
5.2.2. Press [ON] button again to switch the unit off. 5.3. Measuring Temperature and Dew Point 5.3.1. The M4000MD will switch on in the TEMP mode. If already in another mode, press the [MODE] button until TEMP is displayed on LCD.
Page 9: Measuring Humidity Level
5.5.2. Place the probe in front of the outlet (or area to be measured) so that the sensor’s cover is facing the outlet. 5.5.3. Air velocity in meters per second (m/s) is displayed. VELOCITY www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 9...
Page 10 To measure round grills – after step 5.5.1 press and hold the [ENTER] button for more than 2 seconds, until "ENTER" and "DIAMETER" are flashing on LCD. M4000MD is requesting the A/C outlet’s diameter. www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 10...
Page 11: Measuring Air Velocity
10 seconds. Go back and repeat moving the probe across the outlet for one minute. www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 11...
Page 12 Measure each opening as previously described in order to obtain an overall average reading. At the completion of each test, the sum of ALL measurements can be displayed by pressing the [▲] button. www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 12...
Page 13: Measuring Capacity
AWAY FROM THE INLET grill and press ENTER. The LCD will display HUMIDITY %, CAPACITY, Probe at RETURN AIR and "WAIT" will be flashing. HUMIDITY% CAPACITY Probe at RETURN AIR WAIT www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 13...
Page 14 LENGTH CAPACITY ENTER Probe at OUTPUT AIR Using the [▲] and [▼] buttons enter the outlet’s length in cm. DO NOT PRESS [ENTER] UNTIL STEP 5.6.5 www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 14...
Page 15 Probe at START AVERAGE OUTPUT AIR "WAIT" will flash. No need to move probe at this time, the M4000MD is waiting until the sensors stabilize with the new TEMPERATURE and HUMIDITY readings (about 90 seconds) then “START AVERAGE" will flash Measure for one minute making sure to move the probe over the complete area of the grill (Refer to Step 5.5.7).
Page 16 Note: If you wish to go through the complete process of measuring capacity again, which includes the return air measurement, you should wait 10 minutes to allow the humidity sensor to return to ambient conditions. www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 16...
Page 17: Maintenance
Remove and replace with a new and/or a tested 9V alkaline battery. Replace cover before operation. www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 17...
Page 18: Specifications
17.1 x 7.6 x 5 cm (6.75” x 3” x 2”) Display 5 digits 75 x 45 mm (3” x 1.75”) LCD Coil Cord Length 1.8m (72”) www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 18...
Page 19 ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 19...
Page 20 M4000MD www.meitavtec.com | support@meitavtec.com | M4000MD Digital HVAC Analyzer – Owner’s Manual | Pg. 20 File: M4000MD Owner's Manual - Rev.1.doc...
