Summary of Contents for Tinysine TOSR196

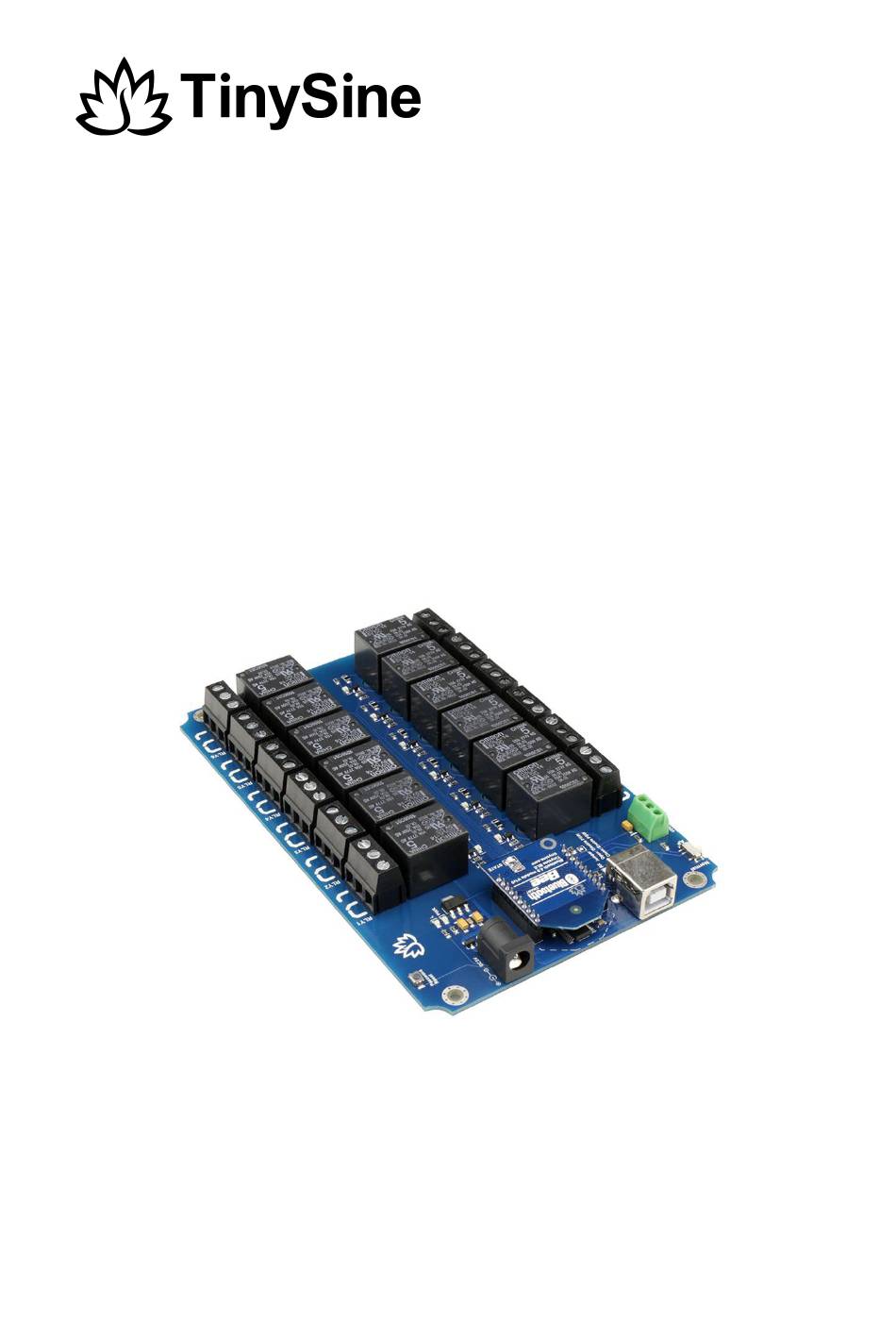

- Page 1 TOSR196 Bluetooth Relay User Manual TinySine Electronics @ 2018 Version 1.1...
-
Page 2: Specifications
NTRODUCTION TOSR196 is a smartphone controlled relay board, it has 12 relays and each relay can be set to latching or momentary output independently. TOSR196 allows computer to control switching of external devices by using the USB port of your computer. It also has a wireless extension port, after you install a Bluetooth module, you can control your device with an Android smartphone or iPhone. -
Page 3: Module Overview
1. USB Port: this port is used to control TOSR196 by computer, or update board’s firmware, but you need to power the board with DC 5V power supply.You need remove the Bluetooth module when you use USB port. - Page 4 5. DC Power In: TOSR196 need be powered with DC 5V power supply, either in USB mode or Bluetooth remote control mode. If you want power it with DC12V or 24V, you just need a 12V/24V-5V DC converter.
- Page 5 FT232RL Driver. Connect TOSR196 to computer and windows will detect it and ask for the drivers. Point windows to the inf folder and it will install the driver. A new com port will now appear. Step2: Run Realterm Serial Debug Tool to control TOSR196 The TOSR196 relay board is controlled using serial command.
- Page 6 Port settings (2) In option “Display”, you can choose data format you want to display, Realterm has provided many selections such as ASCII, Hex, Dec, etc, here we choose “Hex”. Set data display as Hex (3) Now input the commands you want to send in option “Send”, considering Realterm can only send data using Dec or ASCII, here we choose Dec for demo.
- Page 7 Turn on relay 1 Get relay states Note: If you set relay to momentary mode, you need to send turn on command continuously to keep relay on. For example, after you send “66 02” to set relay 3 to momentary mode, and you want to...
-
Page 8: Bluetooth Remote Control
Bluetooth Remote Control Please make sure Bluetooth module are on the board. 1. Connect with Android phone/iPhone (1) Download the application here and install it to your android phone(must be android 4.3 or above), if you use iPhone, please search TOSR12 BLE in App Store. - Page 9 (4) Usually, TOSR196 is named as “BT Bee-BLE”. Choose BT Bee-BLE to connect, it’s a BLE device and no pair number needed.
- Page 10 (5) If you have enabled the password function in TOSR196, then you will need to verify the password first, default is 123456. (6) After your phone has connected to TOSR196, app will show “ connected: BT Bee-BLE”at the top.
- Page 11 2. Control TOSR196 After connecting your phone with TOSR196, you can control it now. Click buttons Relay1~Relay12 to turn on/off corresponding relays. All the buttons have 2 states: blue and white. Blue means relay is on and white is off. This is the basic function, we also provide some advanced features in the app.
- Page 12 (2) In the Name page, there are 12 text boxes, default names is Relay1, Relay2, ... Relay11, Relay12, you can input words in these text boxes maximum length is 7 characters, then it will showed in the main screen.
- Page 13 For example, here we input “Lamp” in the first text box and go back to the main screen, you will find the first button’s name has been changed! (3) Slide to the left in Name page, it’s the Mode page to show 12 channels’ current working mode: Latching or Momentary, you can also click the switch to set each relay working in latching or momentary mode separately.
- Page 14 GL5A Relay Datasheet Realterm Serial Debug Tool iOS APP Android APP Contact us Address: Telephone: Tinysine (Tinyos) Electronics +86-551-65365921 Ext 801 10-301 Shen Gang Cheng, Xiang Zhang Road, Hefei, 230088, Anhui, China Working Time: 9:00-17:30 (GTM +8) Fax: Email: customerservice@tinyosshop.com...
