PV Module Cleaning Tools
Model:Brush B320 32cm+10m Water Pipe+3m Pole Post
User Manual
1-Overview:

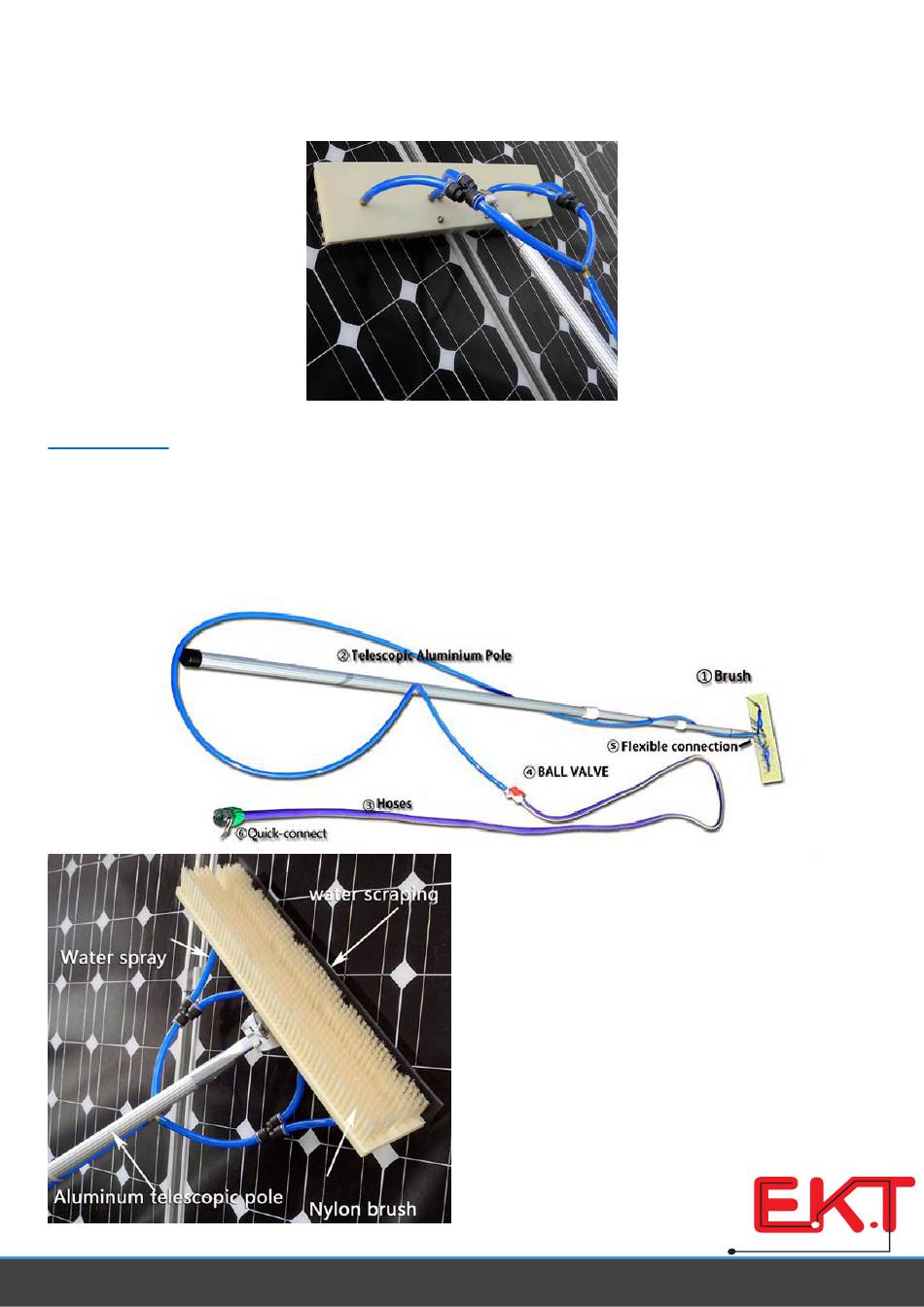

Photovoltaic panel cleaning wiper brush kit, made by the head, aluminum telescopic rod, water pipe.
The aluminum telescopic rod is connected to the head of the quill by means of an elastic connection.
For a tilt-mounted battery, this flexible connection allows the brush to be always attached to the
battery board. The water supply is connected to a tap (or water pump) with a switch on it for
adjustment Flow size.
Electronics
Katrangi
Trading
w w w . e k t
. c o m
2
Advertisement
Table of Contents
Related Manuals for EKT B320
Summary of Contents for EKT B320
- Page 1 PV Module Cleaning Tools Model:Brush B320 32cm+10m Water Pipe+3m Pole Post User Manual 1-Overview: Photovoltaic panel cleaning wiper brush kit, made by the head, aluminum telescopic rod, water pipe. The aluminum telescopic rod is connected to the head of the quill by means of an elastic connection.
- Page 2 (1) In usually, choose B820 or B520 brush, with the telescopic aluminum pole of 5meters. (2) If the panel modules too high, or too far, the general tool is not enough, you can choose B320 brush + pole of 8 meters. (3) Pole of 3 meters + B820H brush, is the most efficiency (4) If the panels installation width of more than 10 meters, it is recommended to select the carbon fiber pole.
- Page 3 5-Pole: Aluminum telescopic Pole: Aluminum telescopic pole have three kind of length ,specifications is 3 meters, 5 meters, 8 meters. Loosen the plastic chuck, you can adjust the length of the aluminum pole out, and then lock, you can start working. 6-Water Supply Pipes and Fittings: 6.1-Inlet Pipe: Water pipe diameter 13 mm, and the outer diameter is 17 mm.
- Page 4 7-Instructions: 7.1-Preparation: Before you start doing, safety protection must be done. Ready for water. Ready the power supply for the pump. (220 volts) 7.2-Installing the product: 1-Put the telescopic pole ② into the brush ① activities connector. Release nut fixed. Adjust the length of the telescopic pole, and lock the nut. 2-Connected water supply hoses.
- Page 5 7.4-How to clean it? • Do not be afraid to waste water and use more water. The more water the more clean the more washed the more pressure the more clean (of course, do not exceed the safety pressure). • Pre-wet the panels, that is, first rinse the panels with water, and then use the brush cleaning, that is more efficient.
- Page 6 8.3-Troubleshooting Guide: The first time or long-term shutdown after boot, the pipeline will have air, water needs a short period of time before there will be water spray. Malfunction Possible Causes Solution Nozzles are Insufficient water supply Check the pump is turned on? not sprayed Is the water outlet pressure Water is too...
