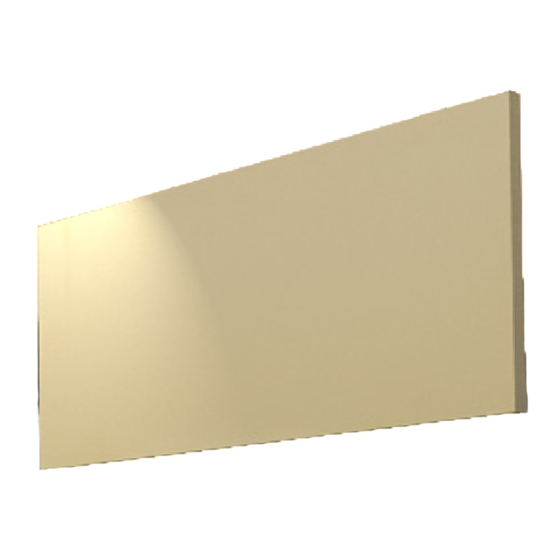

Saturna Baffle
Saturna • Saturna LP • Saturna Mini
TM
INSTALLATION MANUAL
Congratulations on purchasing your new hanging baffl e kit from Primacoustic. The
Saturna, Saturna LP, and Saturna Mini are a family of ceiling baffl es that are designed
to be suspended from ceilings to reduce excessive room echo in large, open spaces.
Please take a few minutes to read through this manual. It includes a list of included parts
as well as step by step mounting instructions. Please refer to www.primacoustic.com for
various placement options, benefi ts and general acoustic information. Should you have
any questions or comments, we invite you to send us an email at info@primacoustic.com.
1. Density - The number of baffl es in a
given area will determine the rate of sound
absorption. This can vary depending on
room size and noise levels.
Primacoustic is a division of Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam, BC Canada V3C 5M5
Tel: (604) 942-1001 • Fax (604) 942-1010 • info@primacoustic.com
Specifi cations and appearances subject to change without notice.
Copyright © 2017, all rights reserved. User Guide part #: R870 2069 00
TM
2. Pattern - Spread evenly for general
sound control or alternate panel direction
to absorb sound waves moving in multiple
directions. Using a grid like 'tic-tac-toe'
layout will improve the performance as
more random energy will be absorbed
in the room. Notice that the baffl es are
suspended in both X and Y axes so that
noise will be captured in both directions.
TM
BOX CONTENTS:
Before beginning assembly, please take
a moment to familiarize yourself with the
box contents.
Corkscrew Anchors
2 anchors are pre-installed
in every panel
Butterfl y Anchors
2 per panel
Eye-screw
2 per panel
SlipNot
2 per panel
3. Suspension Height - The included
mounting hardware will suspend the
panels approximately 2" (5 cm) from the
ceiling at minimum. The included SlipNot
cables allow up to a maximum of 78"
(198cm)
BAR
BAR
A
