R+M Suttner ST-162 User Manual

Grundsätzlich sind immer die aktuell gültigen örtlichen Sicherheitsvorschriften zu beachten.
Lesen Sie diese Betriebsanleitung gründlich bevor Sie das Gerät benutzen!
Bewahren Sie die Betriebsanleitung für späteren Gebrauch oder Nachbesitzer sorgfältig auf!
User Manual easyfoam365+
Diese Bedienungsanleitung wurde mit größter Sorgfalt erstellt. Die Firma SUTTNER GmbH kann jedoch für
ST-162 foam and disinfectant unit. Product No.: 200 162 450
eventuelle Fehler in dieser Bedienungsanleitung und deren Konsequenzen keine Haftung übernehmen!

Safety

Hazard! If these instruc-
tions are not complied with,
there is a risk of life and
limb and property damage!
Read this User Manual
thoroughly before using the
unit!
Keep the User Manual in a
safe place for later refe-
rence or the subsequent
owner!
This User Manual was
established using utmost
care. However, we do
not accept any liability for
possible mistakes in this
User Manual and their
consequences.
Risk of burns and scalds
by hot media!
The injector is designed for permanent use at a tempe-
rature of up to about 60 °C. In any case, the user has
to wear suitable protective equipment such as safety
gloves, shoes, and goggles. In general, the applicable
local safety regulations are to be complied with.
Formation of aerosol!
An aerosol may be formed by the foam and disinfectant.
In order to avoid inhalation, wear a suitable respiratory
protection! Ensure sufficient ventilation!
page 1, Ver. 11.2019

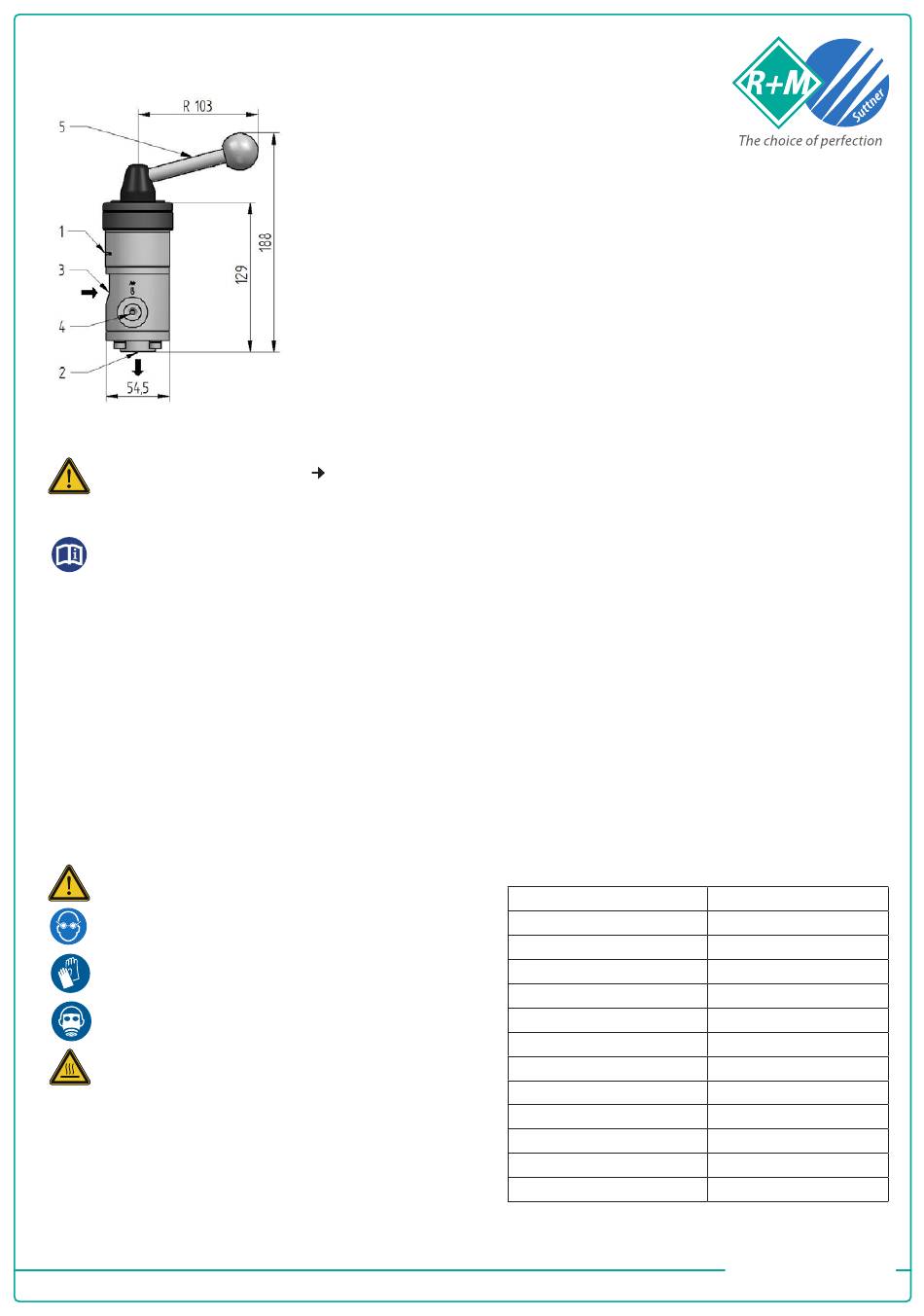

Description

The injector ST-162 is used for admixing liquid detergents to the volume flow in the high-
and low-pressure range using the Venturi principle. The injector housing and the mounted
1 Eingang
parts are made of stainless steel. Using the lever, two functions can be selected: Foaming
2 Ausgang
and rinsing. A foam lance has to be used for foaming the admixed detergents. For a good
3 Chemieanschluß
foaming result, the correct injector nozzles and inserts must be selected. Due to physical
4 Druckluftanschluß
effects, the injector is able to suck in chemical agents up to a temperature of about 60 °C,
5 Hebel
only.
Flußrichtung
1 Inlet
2 Outlet
3 Chemical agent connection
4 Compressed air connection
5 Lever
Flow direction

Intended Use

The injector is designed for suction of detergents and disinfectants. For details, please refer
to Directive 67/548/EEC. The injector must only be used with fluids of Group I (e.g. water).
All safety instructions and regulations for high-pressure cleaners such as DIN EN 60335-
79-2 and DIN EN 1829-1 are to be complied with.
The operator must only use the injector if it is in a proper technical condition, without any
structural alterations, as intended, being aware of safety and hazards, and complying with
this User Manual. Only adults familiar with the use of high-pressure cleaners are authorised
to use the injector. The injector must not be operated using abrasive materials. In order to
avoid damage to the injector, install a fine filter with a recommended mesh size of 50 μm in
the water supply to the high-pressure cleaner. Install a suitable suction filter in the chemical
agent hose. Also comply with the operating instructions of the devices and accessories
connected to the injector and the regulations applying to the detergents.

Specifications

Maximum allowable pressure
Maximum volume flow
Water temperature, permanent
Water temperature, temporary
Ambient temperature
Nozzle size
Connection inlet
Connection outlet
Connection compressed air
Connection chemical agent
Weight
Dimensions (W / H / D)
Maximum size of solids
F: Female thread / M: Male thread / G: Withworth pipe thread acc. to
DIN ISO 228, ident. BSP = British Standard Pipe / NPT: National Pipe
Thread (American Thread standard) / g: Gram
350 bar / 35.00 MPa
60.0 l/min
60°C
max. 90°C
up to max. 60°C
-
G 3/8 F
G 1/2 F
M14x1 F
M14x1 F
1,989 g
193 x 188 x 128 (with support)
50 μm
