ePC Quick Start Guide

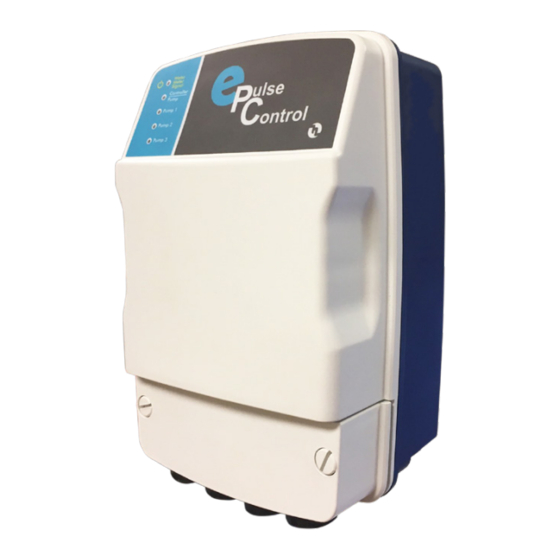

ePulse Control Water Meter Splitter

Included in the box

• ePulse Control
• Bracket Mounting Kit
• Operating instructions and maintenance manual
NOTE: Remove safety labels before
installing and remember that pumps may
hold water inside.
!
CAUTION
- See operating manual for complete instructions
and safety standards.
- When connecting a metering pump either to a
public water supply or to its own water source,
you must respect the regulations in force
concerning protection of the source i.e. backflow
prevention, etc.
P C
ulse ontrol

INSTRUCTIONS

Indicate whether the Water Meter is 1PPG (1 gallon
1
per contact) or 10PPG (10 gallons per contact).
2
The lead wire next to the power cable connects to
the Water Meter.
3 The lead wire in front of the power cable connects
to either the house controller or Pump #1. The next
wire connects to pump #2.
To house
control
pump #3
pump #2
pump #1
(Continue to back)
