Summary of Contents for Meccanica Fadini STRAMARI 2320
Page 1

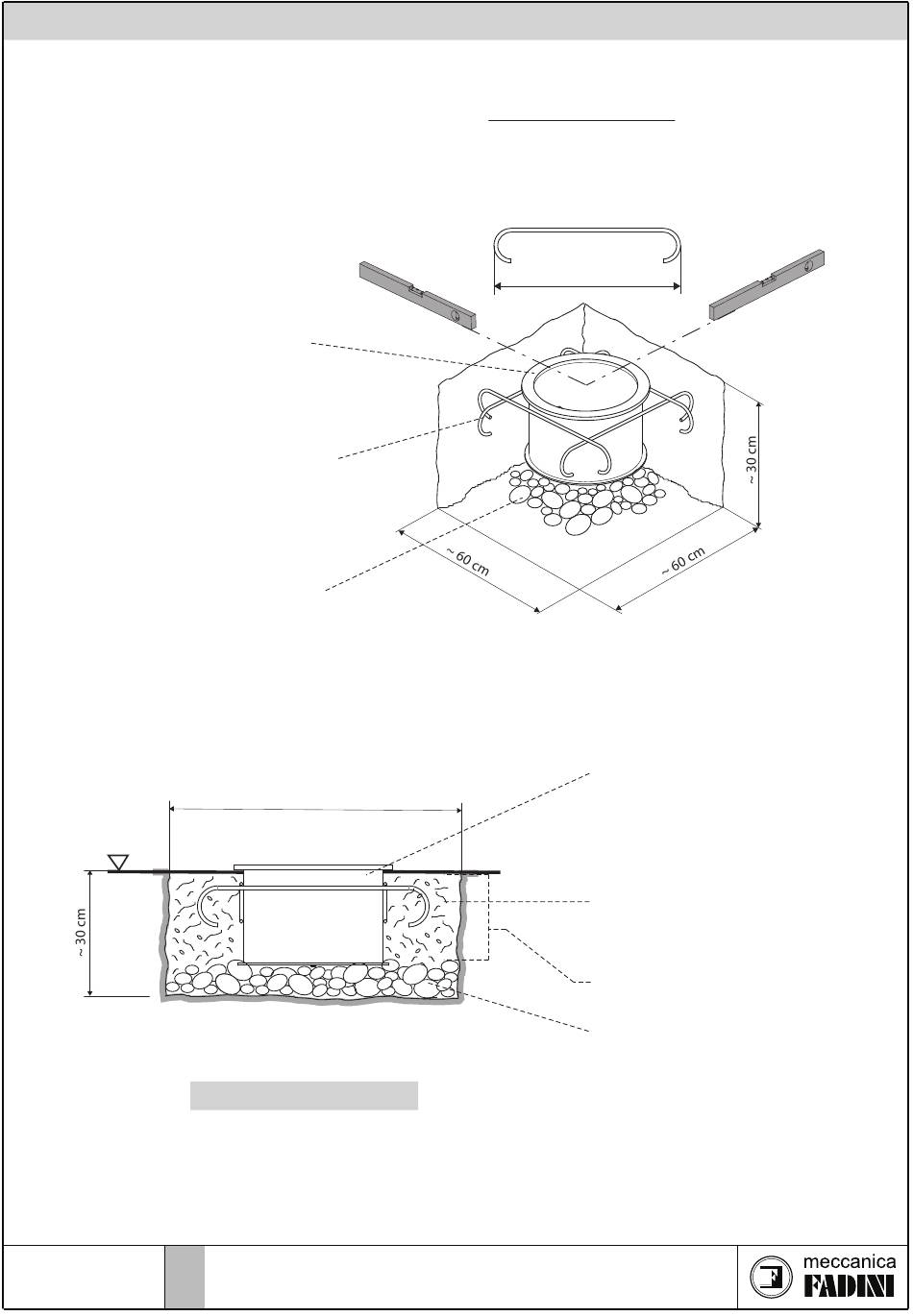

Sottofondo in ciottoli di drenaggio Cassaforma di alloggiamento Stramari 2320 ~ 60x60 cm plinto di fondazione Gabbia metallica di rinforzo per il cemento armato, aderente alla...
[A] Diversi fattori quali l’indice di compattazione, il coefficiente di permeabilità del terreno Ø 275 e il tipo di calcestruzzo possono ridurre anche notevolmente i valori indicati. spessore 4 mm Ø 293 Ø 340 Ø 340 Colonna Cassaforma Coperchio di alloggiamento 7542 ISTRUZIONI STRAMARI 2320 Dis. N.
Page 3
DICHIARAZIONE DI CONFORMITÀ CE del costruttore: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) dichiara sotto la propria responsabilità che Stramari 2320 è conforme alla direttiva macchine 2006/42/CE, inoltre: viene commercializzato per essere installato come "impianto automatizzato", con accessori e componenti originali indicati dalla Ditta Costruttrice.
Page 4
The reinforced metallic structure (not supplied by the manufacturer) is to be positioned around the socket very close to Ø 10 n° 4 pcs. Ground socket Stramari 2320 Metallic framework to be provided as a reinforcement to set in the...
[A] Various factors, such as the compaction index, soil permeability coefficient and kind Ø 275 of concrete may reduce the values indicated even significantly. thickness 4 mm Ø 293 Ø 340 Ø 340 Post Ground socket Socket cover 7542 INSTRUCTIONS STRAMARI 2320 Drwg. No.
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under its own responsibility that Stramari 2320 is in compliance with the Machinery Directive 2006/42/CE, moreover: is to be sold and installed as a comprehensive “Automatic System”, including the accessories and components as recommended by the Manufacturing Company.
Page 7
Grillage métallique de renfort pour le ciment contre le coffrage à fixer dans le béton Fond de cailloux pour le drainage Coffrage perdu de fondation Stramari 2320 ~ 60x60 cm plot de fondation Grillage métallique de renfort pour le ciment contre le coffrage à...
Page 8
Plusieurs facteurs tels que le taux de compactage, le coefficient de perméabilité du sol et Ø 275 le type de béton peuvent réduire considérablement les valeurs indiquées. epaisseur 4 mm Ø 293 Ø 340 Ø 340 Colonne Coffrage perdu Couvercle de fondation 7542 INSTRUCTION STRAMARI 2320 Des. N.
Page 9
DECLARATION DE CONFORMITE CE: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) déclare sous sa propre responsabilité que Stramari 2320 est conforme à la directive machines 2006/42/CE, en outre: est commercialisée pour être installée comme “installation automatisée”, avec les accessoires et les composants originaux indiqués par l’Entreprise de Construction.
Page 10
Ø 10 n° 4 Stk Unterflurzylindersitz Stramari 2320 Verstärkungsmetall-bewehrung für Eisenbeton, klebend am Zylindergehäuse während der Betonschüttung einzusetzen Grund aus Kieselsteinen Unterflurzylindersitz Stramari 2320 ~ 60x60 cm Betonsockel Verstärkungsmetall-bewehrung für Eisenbeton, klebend Zylindergehäuse während der Betonschüttung einzusetzen Betonsockel Grund aus Kieselsteinen...
Page 11
[A] Verschiedene Faktoren, wie die Verdichtungsindex, Bodendurchlässigskeitskoeffizient Ø 275 und Art von Beton können die in dem Diagramm angegebenen Werte sogar noch deutlich Dicke 4 mm reduzieren. Ø 293 Ø 340 Ø 340 Poller Unterflurzylindersitz Sockel Deckel 7542 ANLEITUNG STRAMARI 2320 Zeichn. Nr.
Page 12
KONFORMITÄTSERKLÄRUNG des Herstellers: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) erklärt hiermit auf eigene Verantwortung, dass der Stramari 2320, der Maschinenrichtlinie 2006/42/CE entspricht, und wird vermarkt, um als “automatisches System” installiert zu werden, mit originalem Zubehör und Bauteile, wie von der Herstellerfirma angegeben.
Page 13
Fundación en guijarros para drenaje Encofrado de alojamiento Stramari 2320 ~ 60x60 cm zócalo de cimentación Jaula metálica de refuerzo del hormigón armado, colocada adherente al encofrado de alojamiento, a sumergir en el hormigón...
Page 14
[A] Varios factores, tales como el índice de compactación, el coeficiente de permeabilidad Ø 275 del suelo y la tipo de hormigón también puede reducir en gran medida los valores espesor 4 mm indicados. Ø 293 Ø 340 Ø 340 Columna Encofrado Cobertura de alojamiento 7542 INSTRUCCIONES STRAMARI 2320 Dib. Núm.
Page 15
DECLARACIÓN DE CONFORMIDAD CE del fabricante: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italia) declaramos bajo nuestra única responsabilidad que Stramari 2320 está en conformidad con la Directiva 2006/42/CE, también es para ser vendido e instalado como "sistema automatizado", con accesorios y componentes recomendados por el fabricante.
