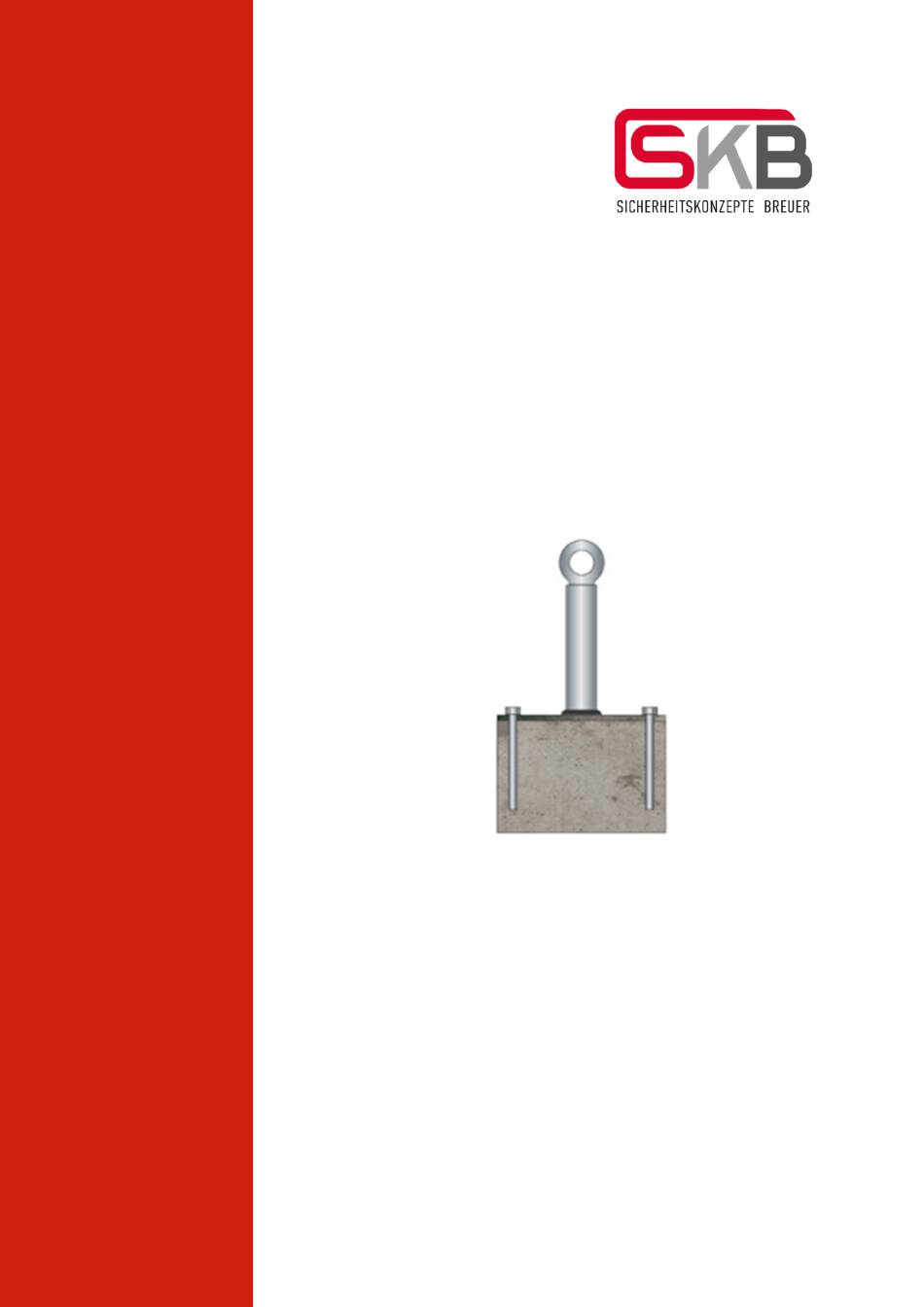

Instruction manual and assembly
instructions, test log and installation
documentation in accordance with
DIN EN 795:2012 Class A
Primo 27 AD
This instruction manual, including a test log, must be read before first use and kept with the equipment for
its entire service life. Only persons who are familiar with this instruction manual may use the system.
Advertisement
Summary of Contents for SKB Primo 27 AD
- Page 1 DIN EN 795:2012 Class A Primo 27 AD This instruction manual, including a test log, must be read before first use and kept with the equipment for its entire service life. Only persons who are familiar with this instruction manual may use the system.
- Page 2 Instruction manual for anchor device in accordance with DIN EN 795:2012 Class A Type: Primo The anchor devices, type: PRIMO are used as anchor points in fall-arrest systems for personal protective equipment against falls from a height or for use with restraint systems, and are designed to be assembled on various surfaces. Assuming correct assembly and proper use, the anchor device (used with a suitable fall-arrest or restraint system) prevents the user from hitting the ground or from other obstacles.
- Page 3 This instruction manual is supplied with every Primo anchor device. It must be read before use and stored in close proximity to the equipment at all times. The assembly of the anchor device is described in a separate manual. Caution: Only original parts may be used! Please check the roof construction before assembly, i.e., always check whether the surface is suitable for attaching the anchor device.
- Page 4 When using the Primo anchor device, the necessary clearance height below the user must be checked and guaranteed in advance. In addition, care must be taken to minimise free fall in the event of a fall. The necessary clearance height depends on the fall-arrest system components used (safety harness and lanyard), its maximum extension and the displacement of the anchor point, which corresponds to the prop height.
- Page 5 Meaning of the markings Product designation and type designation Manufacturer Standard Number of users Batch number Year of manufacture Symbol to indicate that the instruction manual must be observed Manufacturer Notified body involved in the type examination Sicherheitskonzepte Breuer GmbH DEKRA EXAM GmbH Broekhuysener Straße 40 Dinnendahlstr.
-
Page 6: Maintenance Log
Inspection at least once a year, to be organised by the builder. Manufacturer: Sicherheitskonzepte Breuer GmbH Broekhuysener Straße 40 47638 Straelen Type designation: Primo 27 AD Year of manufacture: Standard: DIN EN 795:2012 Class A Date of purchase: Serial number:... - Page 7 Fischer anchor bolt FAZ II 10/10 A4 Assembly preparation Before installing the Primo 27 AD, the load capacity of the roof construction must be checked. The technical specifications must be adhered to. The General Type Approval must be observed in planning and assembly.
-
Page 8: Installation
Assembly steps Installation To mark the four boreholes, place the base plate on the concrete slab with an edge distance of 650 mm to the concrete edge (not to variant building edge) Bore the four ø 10 mm boreholes perpendicular to the concrete surface 85 mm deep in the concrete. Figure 1 Remove the generated dust from the concrete slab (e.g. - Page 9 Place Primo 27 AD on the concrete slab and insert all four heavy-duty anchors of the anchor device and hammer in. Screw-in the heavy-duty anchor clockwise using a torque spanner and tighten with 45 Nm. Figure 5 Position the eyelet and screw-in clockwise. Tighten until the ring bolt cannot be manually released.
- Page 10 Installation documentation: Fall Protection Type: Primo 27 AD Building Contracting authority Assembly company Building section Address Order no. Post code / Place Building type Supplement Roof shape Address Contact person Fixing Bolt anchor FAZ II 10/10 Manufacturer Fischer Post code / Place...
- Page 11 Roof plan Applied torque reached □ Surface as expected □ Fixings specifications satisfied □ Manufacturer specifications fulfilled □ Nameplate present □ Screw lock used □ No extra concrete □ Building Type Approval Z-14.9-710 taken into account Rough sketch, roof plan (see attachment) Anchor point: Anchor point: Anchor point:...
- Page 12 Broekhuysener Straße 40 47638 Straelen Tel.: +49 (0) 2834 943 01 00 Fax: +49 (0) 2834 943 05 62 info@sicherheitskonzepte-breuer.com www.sicherheitskonzepte-breuer.com Instruction manual and assembly instructions, log book and installation documentation in accordance with DIN EN 795:2012 Class A Primo 27 AD...
