The contents in this manual are copyrighted property of
Syntech Information Co., Ltd.
The information in this manual has been carefully checked
and is believed to be accurate. Syntech Information assumes
no responsibility for any inaccuracies that may be contained
in this document.
The information in this document is subject to change
without prior notice in order to improve reliability, design
and function, and does not represent a commitment on part
of the manufacture.
All right reserved. No part of the contents of this manual
may be reproduced or transmitted in any form or by any
means without prior written permission of Syntech
Information Co., Ltd.
i
Advertisement
Table of Contents

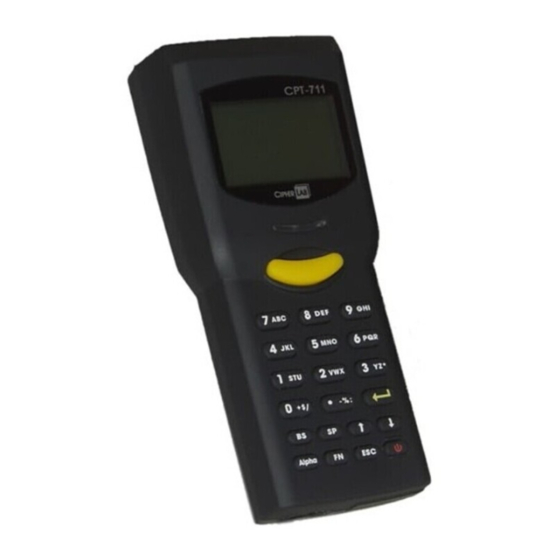

Summary of Contents for Syntech CPT-711
- Page 1 The contents in this manual are copyrighted property of Syntech Information Co., Ltd. The information in this manual has been carefully checked and is believed to be accurate. Syntech Information assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 2: Table Of Contents
Table of Content 1. Introduction............1 2. General Features and Characteristics ....2 2.1 Electrical ..........2 2.2 Environmental ........2 2.3 Physical ..........2 2.4 CPU .............2 2.5 Memory..........3 2.6 Scanner..........3 2.7 Display ..........3 2.8 Keypad ..........4 2.9 Indicator ..........4 2.10 Communication ........4 2.11 Programming Language ......4 2.12 Accessories.........4 3. -
Page 3: Introduction
With its integrated Laser/CCD barcode scanning unit and built-in RS-232 and IrDA port, the CPT-711 is ideal for inventory control, document tracking, shop floor management, asset tracking, warehousing and... -
Page 4: General Features And Characteristics
2. General Features and Characteristics Basic characteristics of the CPT-711 Portable Data Terminal are listed below, 2.1 Electrical Ÿ Operation battery : two AAA size disposable or rechargeable batteries Ÿ Backup battery : 3.0V, 7.0mAh, rechargeable Lithium battery for SRAM & calendar Ÿ... -
Page 5: Memory
2.5 Memory Program memory Ÿ 1 M Bytes flash memory is used to store the program code, font, constant data, and so on. Data memory Ÿ 1 M Bytes SRAM. 2.6 Scanner The CPT 711 Portable Data Terminal can be equipped with Laser or Long Range CCD scanners. -
Page 6: Keypad
2.8 Keypad Ÿ 21 rubber keys, including alphanumeric keys, arrow keys, function keys, and scan trigger key. 2.9 Indicator Buzzer Ÿ Software programmable audio indicator, 1KHz to 4KHz, low power transducer type. Ÿ Programmable, dual-color (green and red) LED for status indication. -
Page 7: Hardware Configuration
3. Hardware Configuration 3.1 Front, Back and Side View 63mm IrDA 33.5mm 7 1 1 Indicator Trigger RS-232 Battery side view front view back view... -
Page 8: Rs-232 Connection & Irda Connection.6
RS-232 connection & IrDA connection RS-232 & IrDA connection IrDA connection RS-232 port IrDA Transceiver IrDA port 5~100cm RS-232 port RS-232 port AAA Battery*2 RS-232 connection... -
Page 9: Rf Connection
RF connection RF connection (up to 32 units) 7 1 1 7 1 1 7 1 1 7 1 1 7 1 1 RF Base... -
Page 10: Software Organization
4. Software Organization The CPT-711 Portable Data Terminal system software consists of three modules: the kernel module, the system module and the application module. 4.1 Kernel module Kernel module is the innermost core of the system. It has the highest security and is always protected by the system. Only... -
Page 11: Application Module
4.3 Application module The Application module runs on top of the System module. The CPT-711 Portable Data Terminal is preloaded with an application module that runs upon powering the unit up. The following menu will be shown: Ÿ Execute Ÿ... -
Page 12: Build Your Own Application
4.4 Build your own application module There are three software tools available for developing application programs. 1. The Application Generator 2. The “BASIC” Compiler 3. The “C” Compiler For more information, please contact CipherLab USA or Syntech Information Co., Ltd. -
Page 13: Operations
5. Operations Batteries must be fresh and properly loaded before start operation. 5.1 Keypad operations The keypad of CPT-711consists of 20 rubber keys and one trigger key. The functions of some special keys are as follows: ENTER Enter. This key is for command execution or input confirmation. -
Page 14: Application Mode
pressing the key for longer than one second or pressing another key, will the system send the real key code to the application program. The function key. This key can not be activated alone, it must be pressed with one numeral key at the same time. - Page 15 1. Memory Size Information Includes the SRAM (Data memory) size and FLASH (Program memory) size in kilobytes. Initialize To initialize the data memory (RAM). Note that the contents of the data space will be wiped out after memory initialization. Test To test the data memory.
- Page 16 Auto Off Set time threshold for auto power- off when no operation is taking place during that specified period. If this value is set to zero, this function will be disabled. Default: 10 minutes Power On There are two possible selections: , which starts from Program Resume the program being used during the...
- Page 17 4. Battery Main Show voltage of the main battery power. If the main battery voltage is low, a battery icon (power-low indicator) will be shown on the LCD screen. The available power will be less than 25% of fresh batteries, The terminal will continue to work normally for a short period of time.
-
Page 18: Kernel Mode
To download the user program via high speed IR transceiver. The transmission speed can be up to 115200 bps. IrDA To download the user program via standard IrDA. The transmission speed can be up to 115200 bps. 7. Version Version Info show version information,... -
Page 19: Troubleshooting
If problem persists, call for service. Battery-low indicator is on, Ø Change the batteries. Cannot download application program from the host to the CPT-711 Portable Data Terminal or vice versa, via RS-232 port. Ø Check if the RS-232 cable is plugged tightly, then, Ø... - Page 20 Check if host communication parameters (COM port, baud rate, data bits, parity, stop bit) matched portable's. Ø Check if the CPT-711 Portable Data Terminal is properly positioned within the reading range: (5 to 100cm, 30 degree solid angle) of the IrDA transceiver.
