Summary of Contents for Eyepower PDU

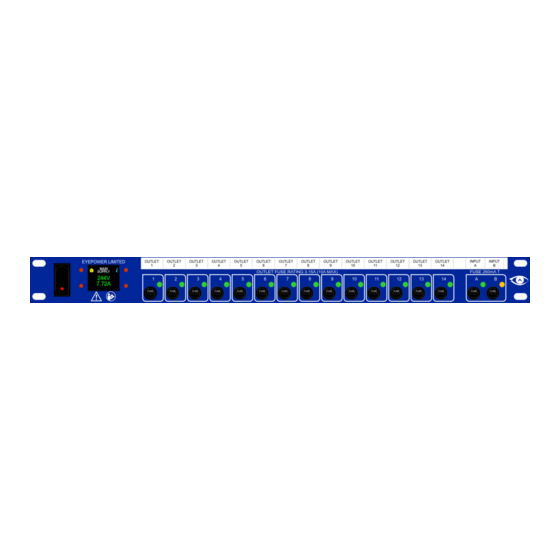

- Page 1 PDU User Manual Version 1.0 December 2021 SAFETY NOTICE End users must be made aware that power outlets are remote controlled This unit is not certified for safety isolation of the electrical supply...
- Page 2 Internal Distribution eyePower Limited PDU do not rely on PCB tracks for power distribution, all units are hand wired with crimped cables and soldered busbars. Installation fault currents can be surprisingly high, a 10A fuse can pass 30A for 30 seconds worst case.
- Page 3 Web Browser Interface eyePower PDU, fitted with optional Ethernet port on the rear panel, have an inbuilt web server to provide a sophisticated Web Browser Interface (WBI) for control and monitoring across a network.
- Page 4 On return of ‘A’, when both supplies have been stable for ten seconds and the two supplies are synchronous for one mains zero crossing, an eyePower PDU will change back to ‘A’ automatically. Note this delay can be changed using eyePower Limited’s Windows software via the serial port.
- Page 5 Sections A and B below are relevant to a changeover PDU. Section C below is relevant to both changeover and single inlet versions. A. Supply LEDs when not alarming A1. Off = not present A2. Green = present and selected A3.
- Page 6 Note that eyePower Limited do not recommend operation of the current eyePower PDU in this manner and take no responsibility if the switch between two non-sync supplies causes any damage to connected equipment or causes one or both supply breakers to trip.
