Summary of Contents for Emec ECDI Series

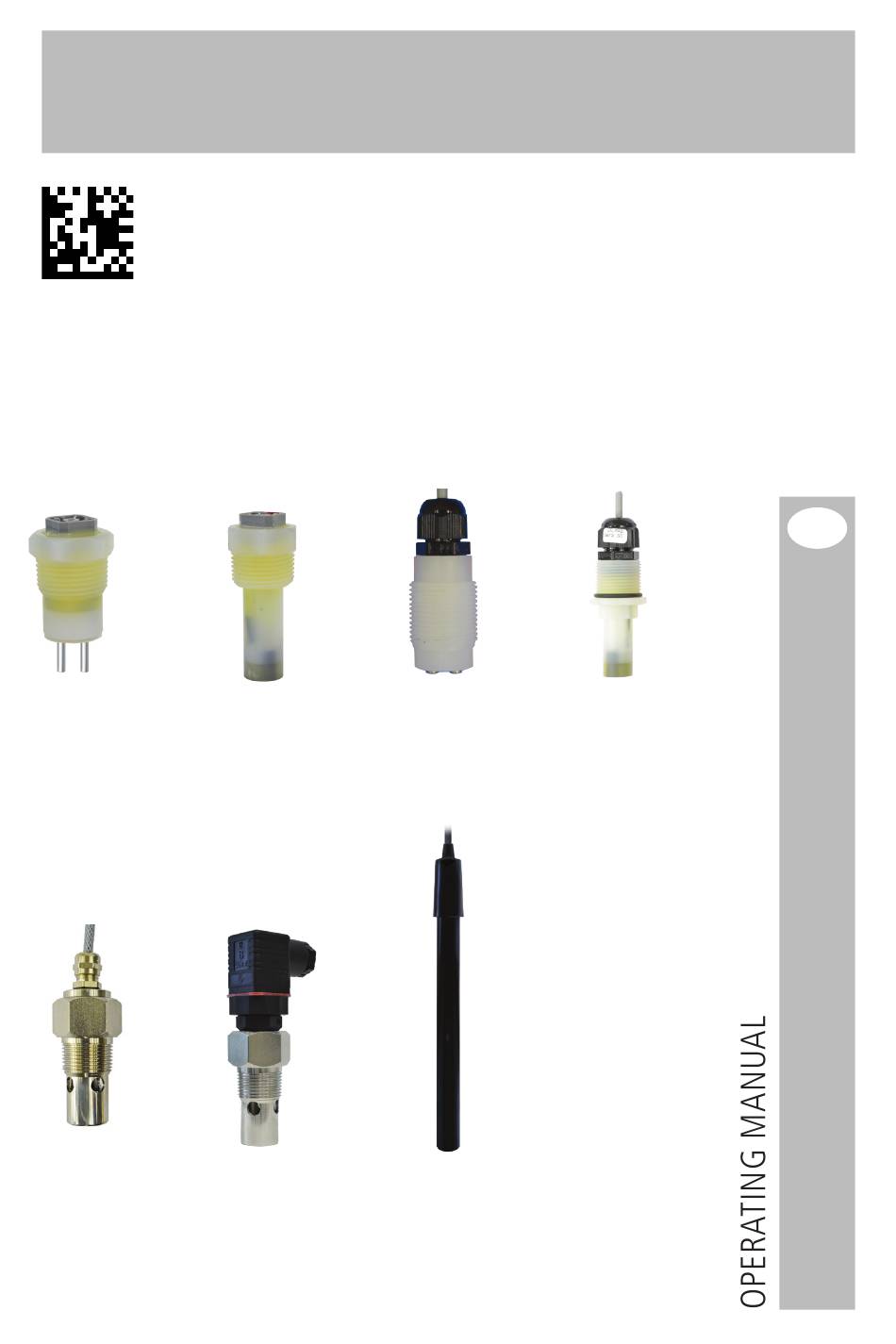

- Page 1 ECDI - ECDC - ECDIM - ECDCIM - EICD - EICDC - ECDHL ECDI series ECDC series ECDIM series ECDCIM series EICDHPT series EICDC series ECDHL series CONDUCTIVITY PROBES R3-11-21...
-
Page 2: General Safety Guidelines
This operating instructions contains safety information that if ignored can endanger life or result in serious injury. Read these instructions carefully before use and keep them for future reference. Information and specifications on this manual could be uncorrect or could have printing errors. Specifications are subject to change without notice. - Page 3 PURPOSE OF USE EQUIPMENT INTENDED FOR THE MEASUREMENT OF CONDUCTIVITY IN WATER. AND SAFETY Do not use in explosive area (EX). Do not use with flammable chemicals. Do not use with radioactive chemicals. Use the probe in accordance with the data and specifications printed on the label. Do not modify or use in a manner inconsistent with the provisions of the operating manual.
- Page 4 Environmental Work area safety Always keep the area clean to avoid and/or discover emissions. Recycling guidelines Always recycle according to these guidelines: 1. If the unit or parts are accepted by an authorized recycling company, then follow local recycling laws and regulations. 2.
- Page 5 Transportation and A not suitable transportation or storage can cause damages. storage Use origianal box to pack the probe. Observe storage conditions also for transportation. Although packed, always protect the unit against humidity and the action of chemicals. Before return the probe to the manufacturer Repair service, clean and rinse it. DO NOT TRASH PACKAGING.
- Page 6 MODELS ECDHL Conductivity probes with platinum electrodes. High linearity Fig. 1. ECDHL probe Technical Range: features ECDHL/01 ......... 0-200 µS (K=0,1) ECDHL/1 ........... 0,2-20 mS (K=1) ECDHL/10 ......... 20-200 mS (K=10) Temperature ........0-70° C (32-158°F) Transportation and storage temperature 10-50°C (32-122°F) Max pressure ........
- Page 7 MODELS ECDC Conductivity probes with graphite electrodes. Fig. 2. ECDC probes ECDC/1 ECDCIM/1 ECDCC/1 ECDCCIM/1 ECDCCPT/1 ECDCCIMPT/1 ECDC/10 ECDCIM/10 ECDCC/10 ECDCCIM/10 ECDCCPT/10 ECDCCIMPT/10 Technical Range: features ECDC/1 ..........0-20 mS (K=1) - not compensated ECDCC/1 ........... 0-20 mS (K=1) - Temperature NTC 10K compensated ECDCCPT/1 ........
- Page 8 Connection cable COMPENSATION CABLE WIRES SIZE ELECTRODES BLACK 4 x 0.14 GROUND GROUND ELECTRODES BLACK NTC 10K 4 x 0.14 WHITE NTC 10K GREEN ELECTRODES 2 x 0.50 BLACK BLUE GROUND PT 100 GREEN 4 x 0.22 BROWN PT 100 YELLOW-WHITE...
- Page 9 MODELS ECDI Conductivity probes with stainless steel electrodes. Fig. 3. ECDI ECDI ECDIIM ECDIC ECDICIM ECDICPT ECDICPTIM Technical Range: features ECDI/1 ..........0-5 mS (K=1) - not compensated ECDI/01 ..........0-200 µS (K=0,1) - not compensated ECDIC/1 ..........0-5 mS (K=1) - Temperature NTC 10K compensated ECDIC/01 ..........
- Page 10 Connection cable COMPENSATION CABLE WIRES SIZE ELECTRODES BLACK 4 x 0.14 GROUND GROUND ELECTRODES BLACK NTC 10K 4 x 0.14 WHITE NTC 10K GREEN ELECTRODES 2 x 0.50 BLACK BLUE GROUND PT 100 GREEN 4 x 0.22 BROWN PT 100 YELLOW-WHITE...
- Page 11 MODELS EICDC Stainless steel probes for conductivity. Fig. 4. EICDC EICDC EICDHPT EICDCPT Technical Range: features EICDC/1 ..........0-20 mS (K=1) - Temperature NTC 10K compensated EICDC/01 .......... 0-200 µS (K=0,1) - Temperature NTC 10K compensated EICDC/001 ........0-20 µS (K=0,01) - Temperature NTC 10K compensated EICDCPT/1 ........
- Page 12 Connection cable CABLE WIRES SIZE COMPENSATION ELECTRODES BLACK WHITE NTC 10K 4 x 0.14 NTC 10K GREEN BLUE SCHERMO ELECTRODES BLACK GREEN PT 100 4 x 0.22 BROWN PT 100 YELLOW-WHITE BLUE SHIELD...
-
Page 13: Proper Installation
PROPER Sensor must be installed in such a way that flow is oriented INSTALLATION towards the end of the probe. This position avoids air bubbles and sediments on the probe that could alter readings. -
Page 14: Incorrect Installation
INCORRECT This installation could cause the deposit of impurities and solid INSTALLATION parts. This installation could cause air bubbles around the probe This installation could cause air bubbles around the probe This installation could cause air bubbles around the probe or the deposit of impurities and solid parts. -
Page 15: Installation
ASSEMBLING ECDHL INSTALLATION • Install the probe in the probe holder as shown in the figure. ECDHL ECDHL / PEA ECDHL / NPED Progettato da: Controllato da: Data: Peso Lordo: Peso Net Toll. Gen. Progettato da: Controllato da: Data: Peso Lordo: Peso Netto: Toll. - Page 16 CALIBRATION Calibrate the probe monthly or more if the application need higher precision. The sensor need to be calibrated to the instrument it is connected to. Two points calibration: 0 and a value close to working point. For better results: - connect the probe to the instrument;...
-
Page 17: Maintenance
MAINTENANCE Maintenance In order to ensure the requirements of potable drinking water treated and the schedule maintenance of the improvements as declared by the manufacturer, this equipment must be checked at least once a month. OPERATOR PROTECTION Use safety equipment according to the company regulations. Use this safety equipment within the work area during installation, service and when handling chemicals: •... - Page 18 Dimensions Fig. 5. Dimensions ECDHL (mm) ECDHL/xx ø 3.50 Cable lenght 4.5 m ECDHLC/xx ø 5.00 Cable lenght 4.5 m...
- Page 19 Dimensions Fig. 6. Dimensions ECDC (mm) R 3/4 ECDC/K1 ECDCC/K1 ECDCCPT/K1 R 3/4 ECDC/K10 ECDCC/K10 ECDCCPT/K10 ECDCM/K1 ECDCCM/K1 ECDCCMPT/K1 Connector cable Lenght 4.0 m...
- Page 20 Dimensions Fig. 7. Dimensions EICDC (mm) EICDC/xx Cable lenght 4.0 mt R 3/4 EICDHPT/xx Cable lenght 4.0 mt R 3/4...
- Page 21 Dimensions Fig. 8. Dimensions ECDI - ECDIC . ECDICPT (mm) 3/4 K1 PVDF R 3/4 0.80 8.80 45.95 R 3/4 Progettato da: Controllato da: Data: Peso Lordo: Peso Toll. Gen. A. De Michele A. De Michele 26/07/2018 ±0.05 Materiale: PVDF - ELETTRODI INOX ASSIEME SONDA ECDICPT R 3/4 K1 Edizione Sonda_ECDIC_3-4_K1_PVDF...
- Page 22 Dimensions Fig. 9. Dimensions ECDI - ECDIC . ECDICPT (mm) 3/8 K1 PVDF 46.95 26.00 Progettato da: Controllato da: Data: Peso Lordo: Peso Netto: Toll. Gen. M. Formichetti M. Formichetti 26/07/2018 ±0.05 Materiale: PVDF - ELETTRODI INOX ASSIEME SONDA ECDIC G 3/8 K1 Edizione Foglio ECDIC_3-8_K1_PVDF 1 / 1...
- Page 23 Dimensions Fig. 10. Dimensions ECDI - ECDIC . ECDICPT (mm) 1/2 K1 PVDF R 1/2 44.45 Progettato da: Controllato da: Data: Peso Lordo: Peso Netto: Toll. Gen. ±0.05 M. Formichetti M. Formichetti 26/07/2018 Materiale: PVDF - ELETTRODI INOX R 1/2 ASSIEME SONDA ECDICM R 1/2 K1 Edizione Foglio ECDICM_1-2_K1_PVDF...
- Page 24 CONNECTOR CABLE Connector cable Lenght 4.0 m...
- Page 26 MOD 7.5 B1 Q Ed. 1 - rev. 0 21/02/2012 PRODUCT SERVICE REPAIR FORM ENCLOSE THE PRESENT FORM TO THE DELIVERY NOTE DATE ..........SENDER Company name ............................Address ..............................Phone no..............................Contact person............................. PRODUCT TYPE (see product label) DEVICE CODE ..............................
- Page 27 INDEX GENERAL SAFETY GUIDELINES ....2 PURPOSE OF USE AND SAFETY ....3 ENVIRONMENTAL SAFETY ......4 LABEL ............4 SPARE PARTS ..........4 MODELS ............6 ECDHL ............6 Technical features ........... 6 Connection cable ........... 6 MODELS ............7 ECDC ............. 7 Technical features ........... 7 Connection cable ...........
- Page 28 Disposal of end-of-life equipment by users This symbol warns you not to dispose of the product with normal waste. Respect human health and the environment by giving the discarded equipment to a designated collection center for the recycling of electronic and electrical equipment. For more information visit the online site.
