CLEAR BLUE HAWAII
Molokai Kayak Instructions
Thank you for purchasing your Clear Blue Hawaii kayak
This easy to use quick reference instruction book is designed to guide you through the assembly process of
your Molokai Kayak even if you are new to kayaking. Although Molokai Kayak is very simple to build, it is
normal for assembly to take slightly longer the first time as you familiarize yourself with the parts, please allow
for this on your first journey. When accustomed to construction, subsequent occasions will be far quicker.
Please read these instructions carefully, we recommend these instructions be read through before starting.

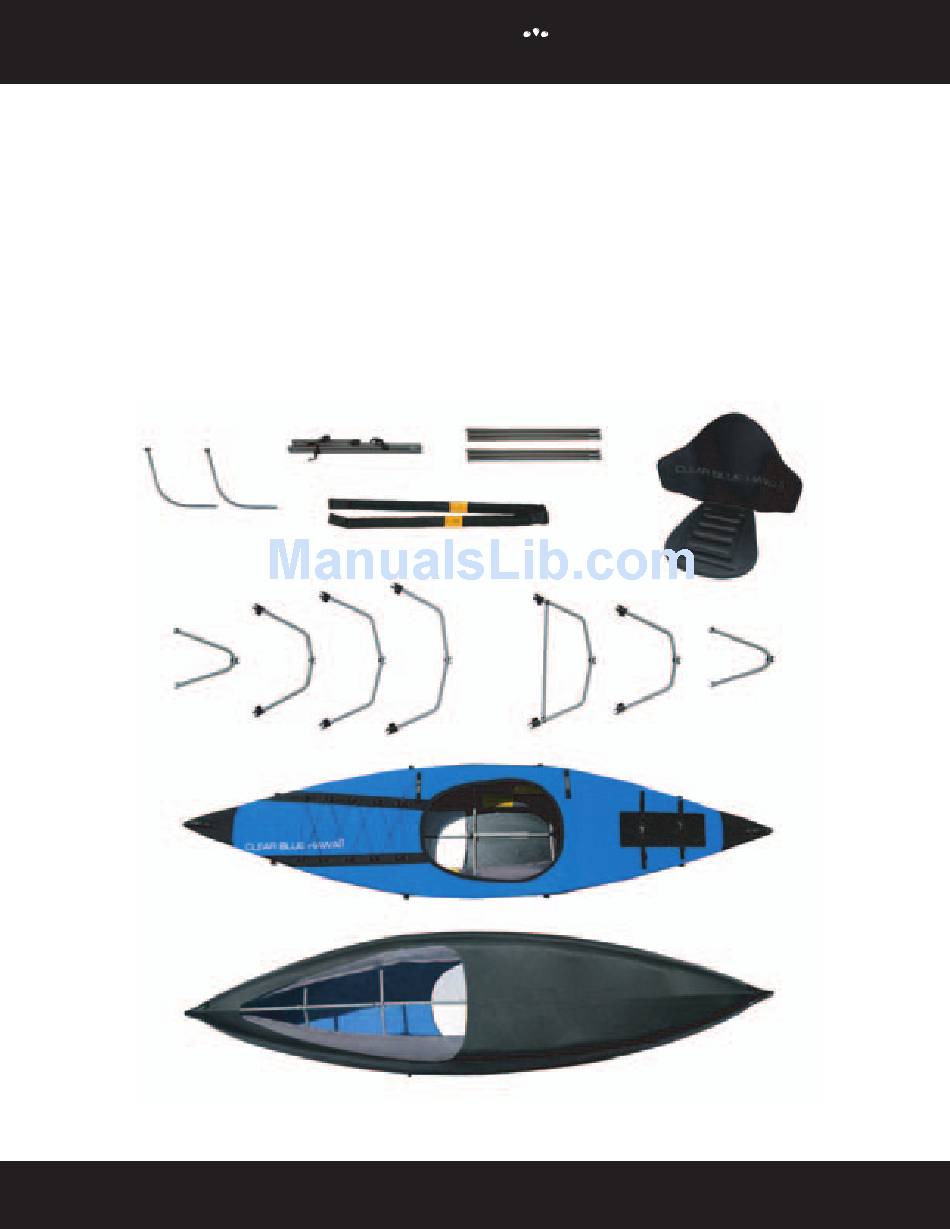

[ Parts ]

2 x Corner Rods
1 x Top Skin
Corner Rods
Please ensure all you have all the necessary parts before assembling your Molokai Kayak, use the above
diagram as a reference for parts in instructions.
1 x Base Rod
2 x Side Rods
1 x Base Skin
1 x Ergon X1 Seat with Fanny Pack
Base Rod
Arches
Cross Ribs
Top Skin
Base Skin
2123 Eluwene St. Honolulu, HI 96819
TOLL FREE : 1-877-777-6708
INTERNATIONAL : 1-707-202-8346
www.clearbluehawaii.com
7 x Cross Ribs
Side Rods
Ergon X1 Seat
(Optional)
2 x
Arches
(Optional)
FAX : 1-707-317-5367

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Boat and is the answer not in the manual?

Questions and answers

Summary of Contents for Clear Blue Hawaii Boat

  • Page 1 CLEAR BLUE HAWAII Molokai Kayak Instructions Thank you for purchasing your Clear Blue Hawaii kayak This easy to use quick reference instruction book is designed to guide you through the assembly process of your Molokai Kayak even if you are new to kayaking. Although Molokai Kayak is very simple to build, it is normal for assembly to take slightly longer the first time as you familiarize yourself with the parts, please allow for this on your first journey.
  • Page 2 CLEAR BLUE HAWAII Molokai Kayak Instructions [ Assembly ] It is best to find an open, clean area in which to assemble the Molokai Kayak Place the gray base skin flat on the floor and assemble the base rod (x1) and side rods (x2). The rods are connected on the inside by elastic cords Locate the side rod flaps and insert one rod into each side, as far as they will go.
  • Page 3 CLEAR BLUE HAWAII Molokai Kayak Instructions [ Assembly ] Insert cross ribs * Assembly Tip : There are plastic clips along the length of the base rod, make certain that these clips all face upwards before connecting any cross ribs. The securing rubber bands should be equally spaced, with one at the open end of each base rod clip.
  • Page 4 CLEAR BLUE HAWAII Molokai Kayak Instructions [ Assembly ] Insert cross ribs Install cross rib (A) first Cross rib (A) is the largest piece and is installed at the center of the base rod. When clipped together, secure the side rib to the base rod by wrapping the black rubber band around the top of the clip (see previous image) *Assembly Tip Cross rib (A) and (B2) are very similar, please ensure you have the right...
  • Page 5 Although the Molokai Kayak skin is particularly strong, accidents can happen that may cause a puncture. Luckily, the boat skin is easily repaired with a repair kit available from a variety of outdoor related stores.
