bond 6
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the bond 6 and is the answer not in the manual?

Questions and answers

Related Manuals for RGBlink bond 6

Summary of Contents for RGBlink bond 6

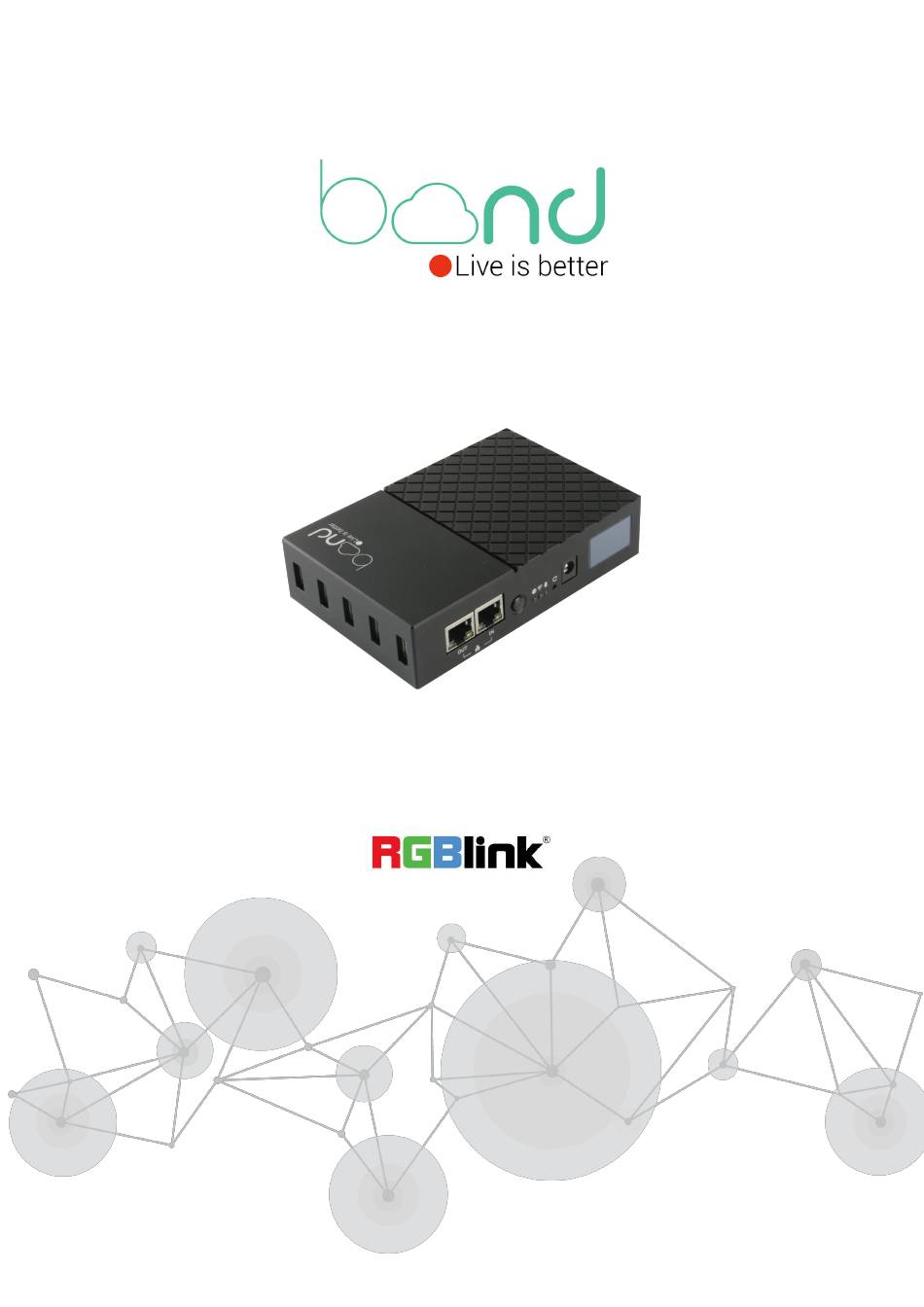

  • Page 1 6 Quick Start...

  • Page 2: Table Of Contents

    Specification................................... 1 Interface....................................2 Screen logo Instruction................................3 How to Config..................................4 WIFI Connection..................................6 How to Change Password..............................6 How to Apply..................................7 Support....................................1 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...

  • Page 3: Product Overview

    SN F550/750/960 | FM50/70/90 | QM91D; PAN Supported Battery VBD1/VBD2; JVC V607U/V617U Environment Temperature -20 ~ 60℃ Humidity 0 ~ 65% Physical Dimension 135mm×91mm×32mm © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...

  • Page 4: Interface

    Press to turn on / off Power Switch flashing red:bonding Indicators :flashing blue:WIFI data uploading/downloading :static green:plug in power DC 12V/2A Power Jack Showing network status LCD Screen © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...

  • Page 5: Screen Logo Instruction

    Please check whether the cable connection is normal. Upload date speed,2 seconds later than actual speed. Download date speed,2 seconds later than actual speed. Battery level (once optional battery installed) © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...

  • Page 6: How To Config

    Step 4: Plug Dongles with SIM card inside to USB port and then directly connect TAO 1pro to the bond router via LAN cable as shown below. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...

  • Page 7: Wifi Connection

    Step 6: Check network settings in the LCD screen shown as below to confirm the IP address of cloud server. Step 7: Click【Status】to check the bonding status. WIFI Connection © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...

  • Page 8: How To Change Password

    Step 1:Navigate to the【Network】--【Wireless】--【Edit】 Step 2:Navigate to the【Interface Configuration】--【Wireless Security】, revise the key and then click【Save】. Step 3: Click【Save&Apply】,power off the bond 6 and restart again,the settings will make effect. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...

  • Page 9: How To Apply

    Step 4: Check network settings in the LCD screen to confirm IP address is in the same subnet as the bond router - 192.168.100.xxx. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
  • Page 10 Support © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 0592 5771197 | support@rgblink.com | www.rgblink.com...
