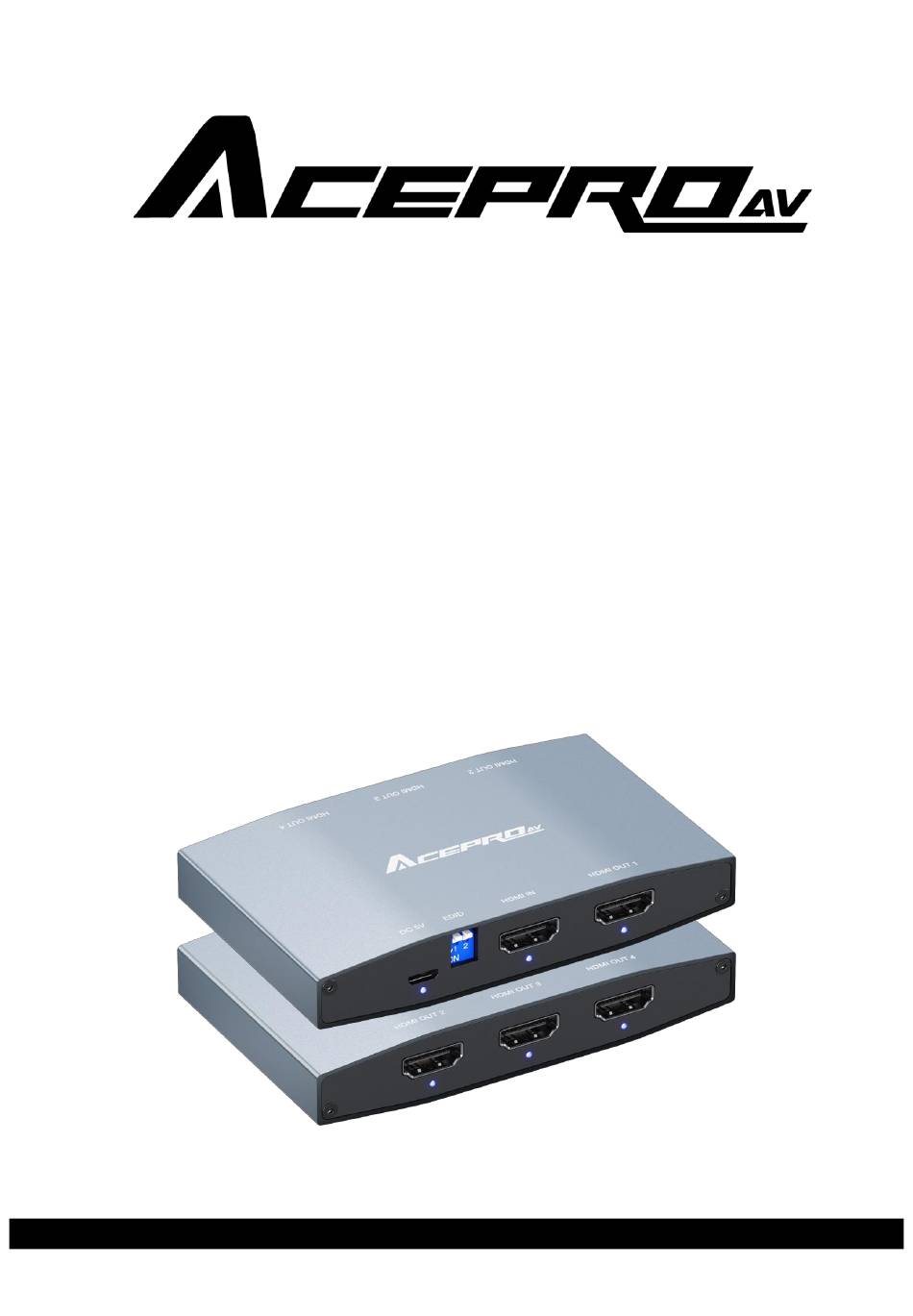

- Page 1 AcePro-CE33-1 4-Port HDMI 2.0 Mini Splitter with EDID Management Quick Installation Guide www.avlab.com.tw support@avlab.com.tw Made in Taiwan AP4-0101A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................ 2 FEATURES ........................2 PACKAGE CONTENTS ...................... 2 SPECIFICATIONS ......................3 HARDWARE INSTALLATION ..................... 3 PANEL DESCRIPTIONS ....................4 CONNECTION DIAGRAM ....................4 NOTICE ..........................5 WARRANTY ........................6... -
Page 3: Introduction
(1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P (2) Frame rate conversion (3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0 2. AcePro-CE33-1 can bypass 4K HDR data content, but can NOT process it and make HDR content 100% it into 1080p PACKAGE CONTENTS ... -
Page 4: Specifications
SPECIFICATIONS Model Name AcePro-CE33-1 Technical Role of usage 1x4 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS 1. Micro-USB Port: Connect to 5V DC power supply unit 2. Power LED: Lights on when device is ready 3. EDID MODE: DIP Switch Position Description Off [] Off [] Ultra HD(4K2K@60) 8/10/12bit 3D HDR video & 7.1ch audio On [ ... -
Page 6: Notice
NOTICE 1. If somehow you cannot get video output, please try to adjust EDID dip switch to “[pin1, pin2]=[↓-↑-]” for trouble shooting. If “[pin1, pin2]=[↓-↑-]” still cannot work, please switch to “[pin1, pin2]=[↓-↓]” to learn the EDID from output 1 to customize the EDID information. -
Page 7: Warranty
Management free from defects in the material and workmanship for 1 year from the date of purchase from the AceProAV or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The AceProAV, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge. - Page 8 Feb, 2020 Ver. A © Copyright by AceProAV, LLC. All rights reserved.
