OWNERS MANUAL
MRR Adjustable Remote
Reservoir Shock Absorbers
Please leave this manual with the customer

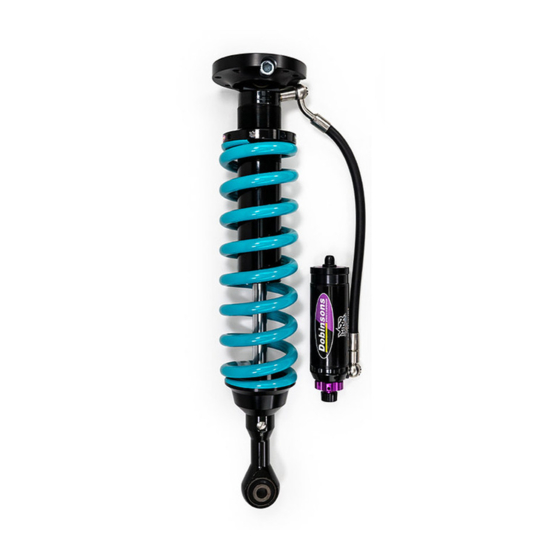

Thankyou for purchasing Dobinsons MRR 3-Way Adjustable Remote Reservoir Shock Absorbers.
Your shock absorbers are equipped with 3 adjustable dials to adjust the amount of low speed
compression damping (small dial on the reservoir end), high speed compression damping (large
dial on the reservoir end) and rebound damping (small grub screw/dial on the rod end).
Page 1 of 8
Advertisement
Summary of Contents for Dobinsons MRR
- Page 1 Reservoir Shock Absorbers Please leave this manual with the customer Thankyou for purchasing Dobinsons MRR 3-Way Adjustable Remote Reservoir Shock Absorbers. Your shock absorbers are equipped with 3 adjustable dials to adjust the amount of low speed compression damping (small dial on the reservoir end), high speed compression damping (large dial on the reservoir end) and rebound damping (small grub screw/dial on the rod end).
- Page 2 Adjustment Adjustment Adjustment Adjustment Important: When adjusting the dials do not over toque the dials. Each dial should be able to be moved by hand or with the small adjustment tool provided. Do not over-torque the dials at the end of the dial travel as this may cause permanent damage to the components.
- Page 3 High Speed Compression High Speed Compression ( ( ( ( HSC High Speed Compression High Speed Compression HSC) ) ) ) The high speed adjustment is increased by turning the larger adjustment dial on the reservoir clockwise and is decreased by turning it anti-clockwise and has approximately 10 clicks. NOTE: Turning the dial clockwise will screw the adjustment assembly outward as it is a left-hand thread, this is normal.
- Page 4 Rebound Rebound Rebound Rebound The rebound adjustment is increased by turning the small grub screw/dial adjuster on the rod end clockwise and is decreased by turning it anti-clockwise. Struts have around 25 clicks and shocks around 12. You can use the tool provided to make adjustments on shocks (there is also a hexagonal hole cut out –...
-
Page 5: Troubleshooting
Trouble shooting Trouble shooting Trouble shooting Trouble shooting The table below serves only as a guide for users to achieve the optimal compromise suited to their desired outcome. Results & Symptoms are subjective and different users may desire different outcomes. Symptoms may require a combination of remedies to improve the issue. Adjustments made independently between front and rear may be required to rectify symptoms. - Page 6 Damper Settings Damper Settings Damper Settings Damper Settings Turn the adjusters to the softest position – completely out in the anti-clockwise direction and count the clicks in and record your setting below. These shock absorbers are a high- performance shock absorber designed and engineered to run warm and therefore you may experience a slightly firmer ride when cold.
- Page 7 Dobinsons Spring & Suspension™ shall not be liable for any expenses incurred by Client in order to remedy any defect in its product. Dobinsons Spring & Suspension™ shall not be liable for any freight, labour, consequential, special, indirect or contingent damage or expense arising Directly or Indirectly from any defect in its products or from use of any products.
- Page 8 State. If a term is held to be unenforceable, the remaining terms will apply. Dobinsons Spring & Suspension™ will not be liable to the Client in the event that delivery of goods is delayed irrespective of the cause.
