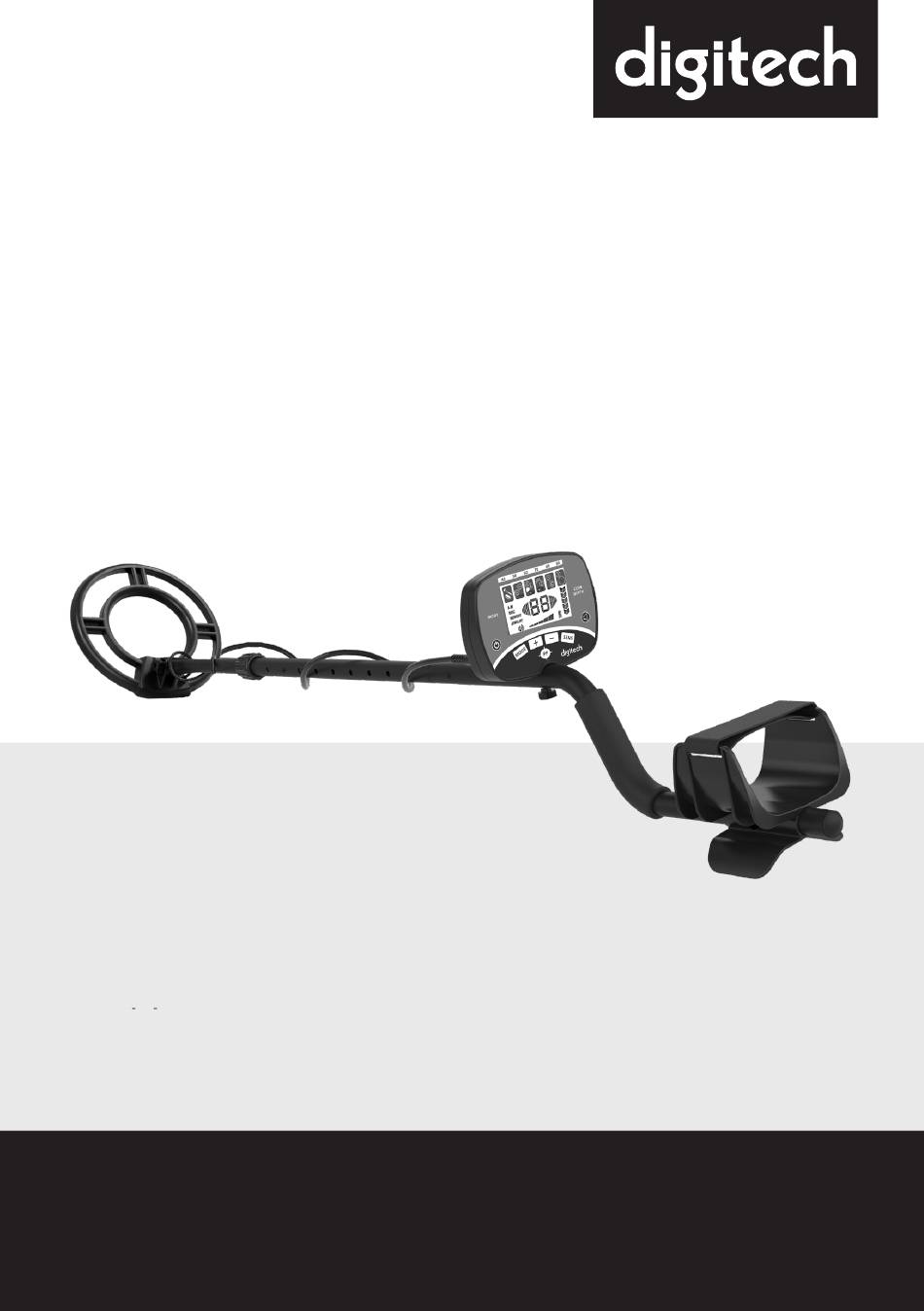

  • Page 1 Metal Detector with Waterproof Coil Model: QP2308 Instruction Manual...

  • Page 2: Assembling The Detector

    Thanks for choosing our metal detector. With this metal detector, you can hunt for coins, relics, jewelry, gold, and silver just about anywhere. The detector comes with high sensitivity and strong ability of discrimination. It is versatile and easy to use. The detector’s features include: LCD Display: Shows the probable type of metal, the depth of the target, range of DISC, the level of SENS, and battery condition.
  • Page 3 1. Unscrew the fixing knob on the lower stem and remove the knob connector. Place the washers into the groove of the lower stem. Then insert the stem and align the holes on the search coil bracket and the stem. Push the connector through the holes and tighten the knob.
  • Page 4 2. Press the silver button in the lower stem, and slide the stem into the middle stem. 3. Press the silver button in the middle stem, and slide the stem into the S stem. Tighten the lock nut on the S stem. 4.

  • Page 5: Installing The Batteries

    INSTALLING THE BATTERIES 1. Turn off the power before installing the batteries. 2. Slide the battery cover off in the direction of the arrow. 3. Place two 9V alkaline batteries into the battery compartment matching the polarity symbols (+ and -) marked inside. Note: The detector will maintain full performance until the batteries need to be replaced.

  • Page 6: Control Panel

    CONTROL PANEL 1. LCD DISPLAY 2. CONTROL BUTTONS POWER : Press the button to power on the detector. Press it again to power off the detector. VOLUME/BACKLIGHT : Short press for adjusting volume level. Press...

  • Page 7: Search Modes

    it for about 2 seconds to turn on the backlight. Long press again to turn off the backlight. Note: As the backlight consumes more power, it’s better to turn off it in light places. MODE : There are four modes to be selected from MODE indicator on LCD.
  • Page 8 JEWELRY Mode. It simply indicates that the discrimination pattern is optimized for locating most jewelry items. The JEWELRY mode will still find coins, relics and other non-jewelry items. It ignores most nails and small iron pieces automatically. OPERATION Step 1. Turning on the detector Press POWER button to turn on the detector.
  • Page 9 The DISC mode can eliminate the unwanted metal target(s) and works with “+”. a. Press MODE to select DISC. DISC is displayed on LCD. This means DISC mode is selected. b. Press “+” to eliminate the unwanted target(s) in sequence from left to right.
  • Page 10 memorized target icon and other target icons will be removed. In this case the detector will only detect 1cent coin and will have no response to other metal targets. (4) JEWELRY Mode Press MODE to select JEWELRY. JEWELRY is displayed on LCD. This means JEWELRY mode is selected.

  • Page 11: Target Indications

    Step 6. Slowly sweep a sample of the material you want the detector to find (such as a gold ring or a coin) 2-3 inches or more above the face of the search coil. When the detector detects any metal, it sounds a tone and the target icon will flash. Also LCD displays the digital value of target as well as the depth of it.
  • Page 12 Step 3. Follow the step 3 described in section of Indoor Testing and Use to set the level of sensitivity. Note: In order to detect the target deeply buried, you can adjust the SENS to a high level. But not to set the level of SENS to Max. level, or the detector will receive interference and false signal from broadcast antenna and other electrical lines.

  • Page 13: Factors That Affect The Detecting

    Notes: The detector responds with a signal when it detects most valuable metal objects. If a signal does not repeat after you sweep the search coil over the target a few times, the target is probably junk metal. False signals can be caused by trashy ground, electrical interference, or large irregular piece of junk metal.
  • Page 14 be restricted by some factors: The angle of the target buried in the soil. The depth of the target. The level of oxidization of the target. The size of the target. Electro-magnetic and electrical interference surrounding the target. In area of highly mineralized ground, or fertile ground, or wet sand, the detector will sound even if there is no metal.

  • Page 15: Troubleshooting Guide

    Troubleshooting Guide Problem Reason Suggestion 1. The detector may 1. Change searching place The detector receive interference 2. Wait for some time to displays or and false signal from check again sounds broadcast antenna and without other electronic lines detecting any 2.
  • Page 16 Distributed by: Electus Distribution Pty Ltd 46 Eastern Creek Dr, Eastern Creek NSW 2766 Australia Ph 1300 738 555 Int’l +61 2 8832 3200 Fax 1300 738 500 www.electusdistribution.com.au...
