PAX Water Mixer (PWM100)
Installation/Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PWM100 and is the answer not in the manual?

Questions and answers

Summary of Contents for PAX PWM100

  • Page 1 PAX Water Mixer (PWM100) Installation/Operation Manual...
  • Page 3 It is important that this manual be read in full prior to installation or maintenance of the PAX Water Mixer. No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or translation into a foreign language) without prior agreement and written consent from PAX Water Technologies as governed by the United States and international copyright laws.
  • Page 4: Table Of Contents

    4. Installation Tools and Test Equipment ..................5. Facilities Requirements ..............................6. Installation Procedure ................................Figure 1: PWM100 ............................7. PAX Water Mixer Start-Up and Shut-Down Procedure ..................8. PAX Water Mixer Electrical Checks ..........................9. Recommended Maintenance Checks .........................
  • Page 5: Before You Begin

    UNINTENDED EQUIPMENT OPERATION • No responsibility is assumed by PAX Water Technologies for any consequences arising out of the use of this product. • Do not operate or install any equipment that appears damaged. Contact your PAX representative to resolve any damage issues.
  • Page 6: Overview

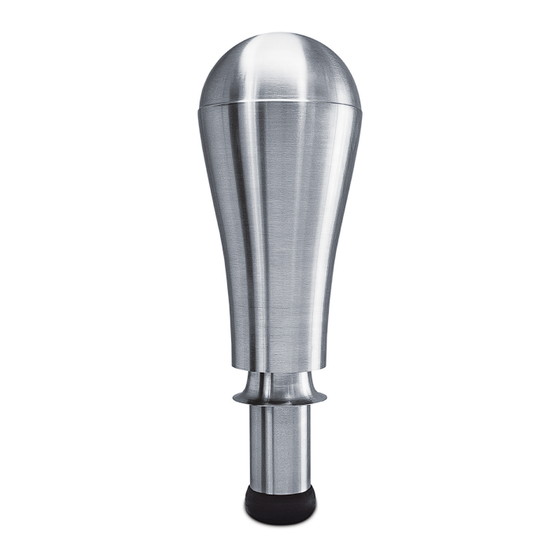

    2. Overview PAX WATER MIXER DESCRIPTION The PAX Water Mixer (PWM100) is an active vortex mixer for small water storage tanks. Patented PAX technology provides the most powerful small tank mixing to thoroughly circulate the entire tank volume. The mixer installs easily and self-rights at the bottom of a tank, even on a sloped floor.
  • Page 7: Pax Water Mixer Specifications

    NSF 61 & UL-listed submersible pump cable 14 AWG XLPE Maximum Motor Wire Length 100’ (30.4 m) NOTE: Contact your PAX Representation if you have questions on maximum motor wire length. 4. Installation Tools and Test Equipment 1. Wire Stripper/Crimper 2. Diagonal Cutter, 6” (150 mm) 3.
  • Page 8: Facilities Requirements

    OSHA requirments. Junction Box 3R located in accordance with local codes. The PAX Water Mixer cable is a 3 wire cable set, 0.5” (12.7 mm) in diameter. Use electrical conduit (3/4” or 20 mm) from the Electrical Conduit tank penetration to the junction box, and from the junction box to the safety disconnect switch.
  • Page 9: Installation Procedure

    PAX Water Mixer (PWM100) Installation/Operation Manual 6. Installation Procedure WARNING: The PAX Water Mixer should always run underwater, NEVER RUN DRY. NOTE: All electrical and conduit connections should be secure and routed in accordance with electrical code. FIGURE 1 Part No. 1101-7119-01...
  • Page 10: Pax Water Mixer Start-Up And Shut-Down Procedure

    If there is excess power cord, coil it up and secure it to the ladder above the water. NOTE: The PAX Water Mixer is designed to come to rest on the floor of the tank and point upwards. On a sloped floor, the mixer will come to rest at a low point on the tank floor.
  • Page 11: Pax Water Mixer Electrical Checks

    Following the installation of all hardware, and after all electrical connections have been made, perform an electrical check and start the PAX Water Mixer, to make sure that PAX Water Mixer is operating properly. The electrical checks should be completed by a licensed electrical contractor.
  • Page 12: Recommended Maintenance Checks

    1. Perform the PAX Electrical Checks (Section 8) annually to ensure that the PAX Water Mixer is operating within specification. 2. Pull the PAX Water Mixer by its power cord up just below the surface of water (do not pull out of the water) to verify operation (water movement).
  • Page 14 PAX Water Technologies, Inc. 860 Harbour Way South, Suite C Richmond, CA 94804 For sales and service, contact: Phone: 866.729.6493 Email: service@paxwater.com www.paxwater.com...
