Draft Pro 3

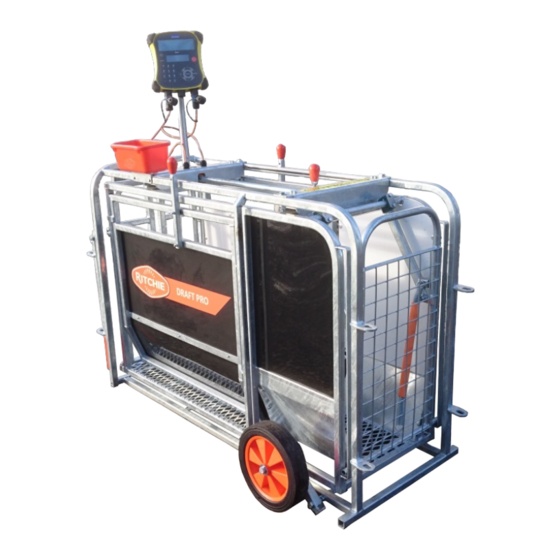

Pig & Lamb Weigher
Model – 3664G
Instruction Manual
& Operating Guide

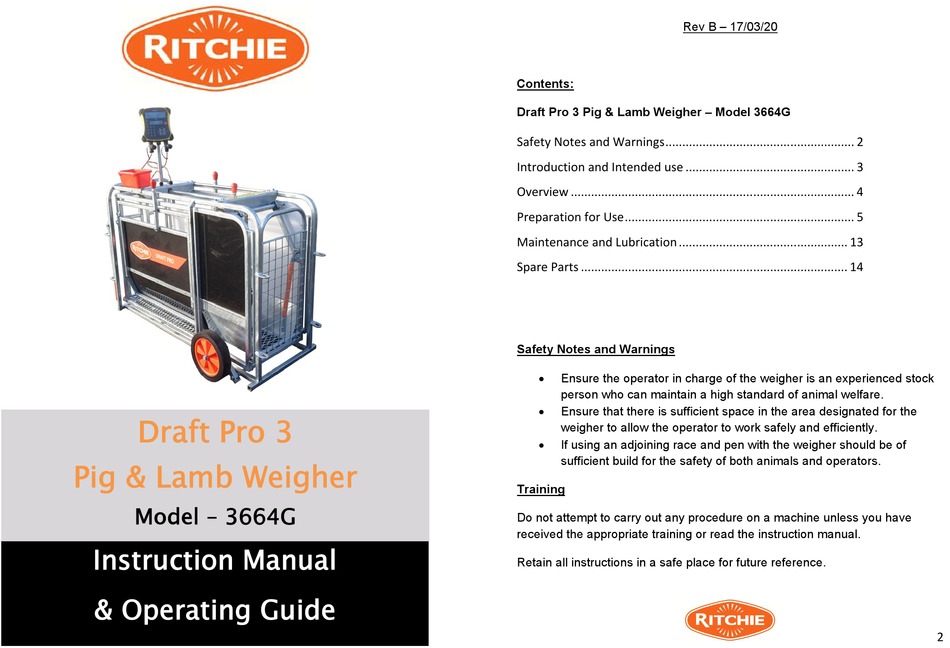

Contents:
Draft Pro 3 Pig & Lamb Weigher – Model 3664G
Safety Notes and Warnings . ....................................................... 2
Introduction and Intended use .................................................. 3
Overview .................................................................................... 4
Preparation for Use . ................................................................... 5
Maintenance and Lubrication .................................................. 13
Spare Parts ............................................................................... 14
Safety Notes and Warnings
Ensure the operator in charge of the weigher is an experienced stock
person who can maintain a high standard of animal welfare.
Ensure that there is sufficient space in the area designated for the
weigher to allow the operator to work safely and efficiently.
If using an adjoining race and pen with the weigher should be of
sufficient build for the safety of both animals and operators.
Training
Do not attempt to carry out any procedure on a machine unless you have
received the appropriate training or read the instruction manual.
Retain all instructions in a safe place for future reference.
1
Rev B – 17/03/20
2
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Ritchie Draft Pro 3
- Page 1 Rev B – 17/03/20 Contents: Draft Pro 3 Pig & Lamb Weigher – Model 3664G Safety Notes and Warnings ............ 2 Introduction and Intended use .......... 3 Overview .................. 4 Preparation for Use .............. 5 Maintenance and Lubrication .......... 13 Spare Parts ................ 14 Safety Notes and Warnings Ensure the operator in charge of the weigher is an experienced stock person who can maintain a high standard of animal welfare.
- Page 2 Introduction and Intended use Overview Indicator Ritchie weighing model 3664G is a digital pig and lamb weigher, and is (supplied loose) intended to be used by the agricultural industry purely for the weighing of pigs, lambs and adult sheep. The cage is designed to give maximum safety and to Indicator Post ...
- Page 3 (fig 3). For instructions on calibration see Span Calibration Guide Download at link below Indicator Or scan QR code. https://www.ritchie-d.co.uk/ Indicator post https://ritchie-d.co.uk/wp- fig 3 content/uploads/2020/11/span_calibration_guide_3664_5G.pdf 5 ...
- Page 4 Operating Instructions The Ritchie Pig & Lamb Weigher can be easily operated from either side by one operator. When the weigher is at the desired location. Go to one side of the weigher, push to tilt the weigher onto one side, the wheel will lower. Move it further round toward the exit and lower the weigher.
- Page 5 If the animal is to be drafted left or right, then the handle on that side should be pulled towards the entrance (fig 15) to release the locking pin (fig 16 & 17) and swung outwards to open the gate (fig 18).
- Page 6 To move weigher to a different location Disconnect the Tru-test indicator, and remove from the post. Failure to do this could damage the indicator. If the weigher is to be transported and strapped down. For example on a trailer Ensure all gates are closed and that all locking mechanisms are engaged.
- Page 7 1 Wheel Axle 669G-A902 Rubber Strip RUBNEO3664G 4 If any other parts are required please contact your local David Ritchie supplier or David Ritchie (Implements) Ltd directly. 2 Plastic Box Handle (Knob only) Wheel The weigher should be wiped down with a clean cloth, moistened with water containing a small amount of washing up liquid or proprietary detergent.
- Page 8 Notes David Ritchie Implements) Ltd, Carseview Road, Forfar, Scotland, DD8 3BT Tel: 01307 462271 Fax: 01307 464081 e-mail: agrisales@ritchie-uk.com WWW.ritchie-uk.com 15 16 ...
