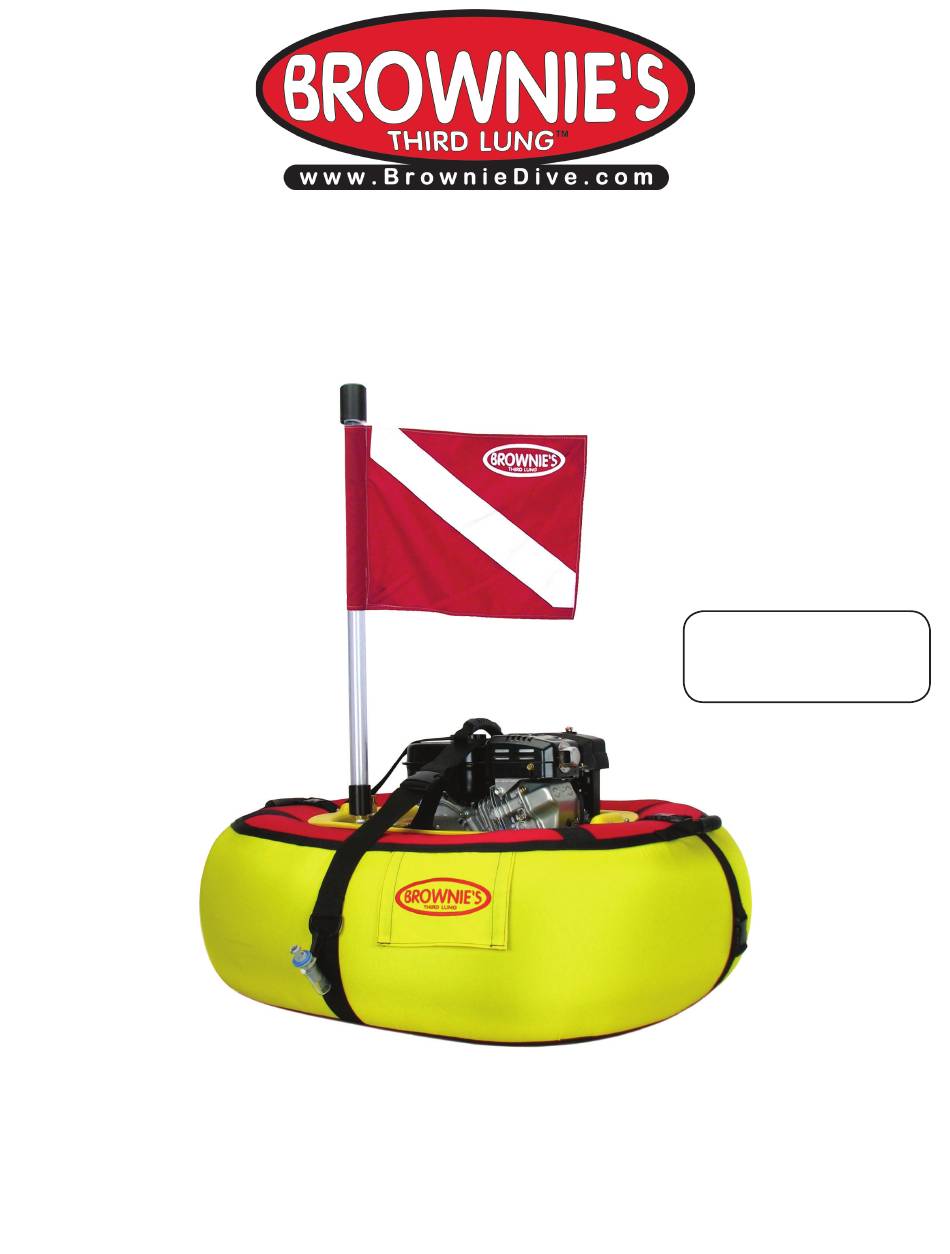

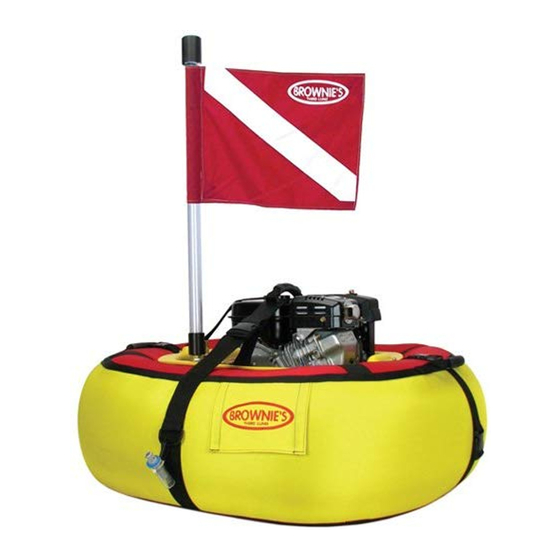

Owner's Manual
Floating Series
ADVENTURE IS ALWAYS ON THE LINE!
Use only unleaded fuel
containing no more
than 10% ethanol.
This manual is also available online
3001 NW 25th Avenue, Suite 1 Pompano Beach, FL 33069 USA
Ph 954.462.5570
Fx 954.462.6115
w w w . B r o w n i e D i v e . c o m

Advertisement

loading
Need help?

Need help?

Do you have a question about the THIRD LUNG Floating Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Brownie’s THIRD LUNG Floating Series

  • Page 1 Owner’s Manual Floating Series ADVENTURE IS ALWAYS ON THE LINE! Use only unleaded fuel containing no more than 10% ethanol. This manual is also available online 3001 NW 25th Avenue, Suite 1 Pompano Beach, FL 33069 USA Ph 954.462.5570 Fx 954.462.6115 w w w .
  • Page 2 Copyright © 2010 by Brownie’s Third Lung All rights reserved. No part of this manual may be reproduced in any form by any means without permission in writing from the publisher. Edition 08/2010...
  • Page 3 Table of Contents Specifications When You Receive Compressor Medical Clearance/Potential Risks Online Training Setting Up Step 1 Step 2: Checking/Adding Oil Step 3: Starting the Unit Step 4: Tube Inflation & Deflation Step 5: Mounting Step 6: Heat Hose Step 7: Hoses Step 8: How to Adjust the Drop Weight Cummerbelt Step 9: Cummerbelts and Egressor Packages Step 10: Starting the Unit (for launching) Step 10 A: Boat Launching Step 10 B: Beach Launching...
  • Page 4 CONgRATULATIONS ON YOUR PURCHASE OF A BROWNIE’S THIRD LUNg!! You now have in your possession the finest, most reliable, surface supplied breathing air system available. The operation is designed with your safety and convenience in mind, and by carefully reading this brief Manual you can be assured of many hours of trouble-free enjoyment. WHEN YOU RECEIVE YOUR NEW COMPRESSOR SYSTEM Inspect the contents to be sure everything is included.
  • Page 5 WARNINg: IMPROPER USE OF ANY UNDERWATER DIVINg EQUIPMENT CAN RESULT IN SERIOUS INJURY OR DEATH. DO NOT DIVE WITHOUT PROPER TRAININg. ONLINE TRAINING In the interest of sharing the most accurate and up-to-date information on accepted diving practices, Brownie’s Third Lung has teamed up with Scuba-Training.net to provide free online dive training with the purchase of each Surface Supplied Hookah System.
  • Page 6 Your Third Lung is designed for shallow water, unobstructed diving and should never be used in enclosed areas, such as caves, shipwrecks or ledge overhangs. The Third Lung is stable in calm sea conditions. Care should be exercised when conditions are rough to avoid swamping or inverting the unit. Breaking waves, similar to those found in the surf zone, may invert or swamp the Third Lung.
  • Page 7 STEP 3 STARTINg THE UNIT Serious burns may resulting from touching hot surfaces of the Engine. Please read the Engine Owner’s Manual. 1. Make sure the oil reservoir and gas tanks are full. Refer to your Engine Owner’s Manual. 2. Put the fuel switch in the “ON” position. 3.
  • Page 8 STEP 5 MOUNTINg. Feed heat hose through oval hole in bottom of pan and also through the middle of the tube. Place entire pan into the tube. The mounting straps on the compressor pan are lined up with corresponding straps on the tube cover. Snap the buckles together and adjust straps.
  • Page 9 Figure 8 Figure 9 STEP 9 HOW TO USE THE DROP WEIgHT CUMMERBELT WITH AN EgRESSOR PACKAgE: Follow above steps 1-5. Then unzip the sleeve that came with the Cummerbelt, and put aside. You will no longer need this sleeve unless there are times that you choose to dive without the Egressor scuba system.
  • Page 10 BEACH LAUNCHINg 1. When launching from the beach, first determine whether the surf will allow safe entry. 2. Breaking surf may flip the unit. Having a gripI on the unit in and out of surf zone is essential. 3. DO NOT LET REGULATORS DRAG IN THE SAND. The float is equipped with straps to secure all hoses for easy carrying. Start the unit on the beach or in calm, waist deep water. The pressure release valve on the compressor should evacuate a sporadic puff of air or a light continuous flow. Breathing on the regulators should stop the flow indicating that the air is being properly regulated. Push the unit into the current or wind and allow it to drift the length of the hose. 5. Deploy the diver hoses attaching them to the belts.
  • Page 11 STORAgE If you are going to be storing the unit for more than 2 months you will need to drain the gasoline completely in three different areas. Remember that you will need to have some sort of container to catch the fuel as it is draining. To do this turn off the gas feed switch and allow the engine to run until it shuts off.
  • Page 12 EMERGENCY MAINTENANCE PROCEDURE In the unlikely event that you accidentally submerge your unit, the situation can be saved if you ACT QUICKLY and DON’T PANIC. Get everything onboard or ashore. Rinse everything with fresh water including the engine. Open compressor heads and rinse. At this point you may transport the unit to a qualified technician or if you are comfortable with the follow- ing steps you may do them yourself. 2. Do not attempt to run the engine. There is a chance that the motor will “water lock” when it is flooded with seawater. If you force the engine to turn, you risk more damage. Do not do this. Get the following items together: New spark plug/Gap, 3 pints of natural 10W30, set of wrenches/ratchets, screw- drivers – both Phillips and slotted head, can of starter fluid.
  • Page 14 REBUILD KIT INSTRUCTIONS Tools needed to perform this service: Medium (6-8”) Adjustable Wrench ½” and 5/16” nut driver or socket wrench 5/32 Allen wrench 11/16”, ½” and 5/16” wrench #2 Phillips screwdriver Note: This procedure will deal with the disassembly of the compressor head and installation of the components contained in the compressor head rebuild kit.
  • Page 16 REBUILD KIT INSTRUCTIONS Tools needed to perform this service: Medium (6-8”) Adjustable Wrench ½” and 5/16” nut driver or socket wrench 5/32 Allen wrench 11/16”, ½” and 5/16” wrench #2 Phillips screwdriver Note: This procedure will deal with the disassembly of the compressor head and installation of the components contained in the compressor head rebuild kit.
  • Page 18 WARRANTY Brownie’s Third Lung products are warranted to be free of defects in materials and workmanship for a period of one year from the date of retail purchase. A copy of retail purchase receipt, showing model and serial numbers is required to verify warranty eligibility.
  • Page 19 Congratulations! You are among the first to receive the newly redesigned Brownie’s hookah regulators. We’ve changed the placement of the hose to follow a more natural path. (See pictures below.) While scuba hoses are typically routed from the top of the tank around the diver’s shoulder, hookah regulator hoses are attached to the divers’...
  • Page 20 TECHNICAL BULLETIN 050622 Changes to Valve Plate Assemblies for AC1 and AC2 Direct Drive compressor assemblies. AC1 assemblies on F280, E150, C270, B230X-BOAT and previous single head, direct drive models. AC2 assemblies on F390, E250, C390, CTD390, B340X-BOAT and previous dual head, direct drive models. The following changes have been made to Valve Plate Assemblies for Brownie’s Third Lung direct-drive compressor assemblies produced since June, 2005, beginning with serial number 12039.
  • Page 21 NOTES:...
  • Page 22 3001 NW 25 Avenue, Suite 1 Pompano Beach, FL 33069 PHONE: 954.462.5570 FAX: 954.462.6115 www.BrownieDive.com info@browniedive.com...
  • Page 23 Warranty Registration ADVENTURE IS ALWAYS ON THE LINE Your warranty cannot be registered without this form. We will not be able to inform you of important upgrades without the completion of this form. Please complete the requested information and fax or mail it back to us with a copy of the original cash register receipt.
  • Page 24 F o l d a l o n g t h i s l i n e . Place __________________________ Postage Here __________________________ __________________________ Brownie’s Third Lung 3001 NW 25th Avenue, Ste. 1 Pompano Beach, FL 33069 F o l d a l o n g t h i s l i n e .
