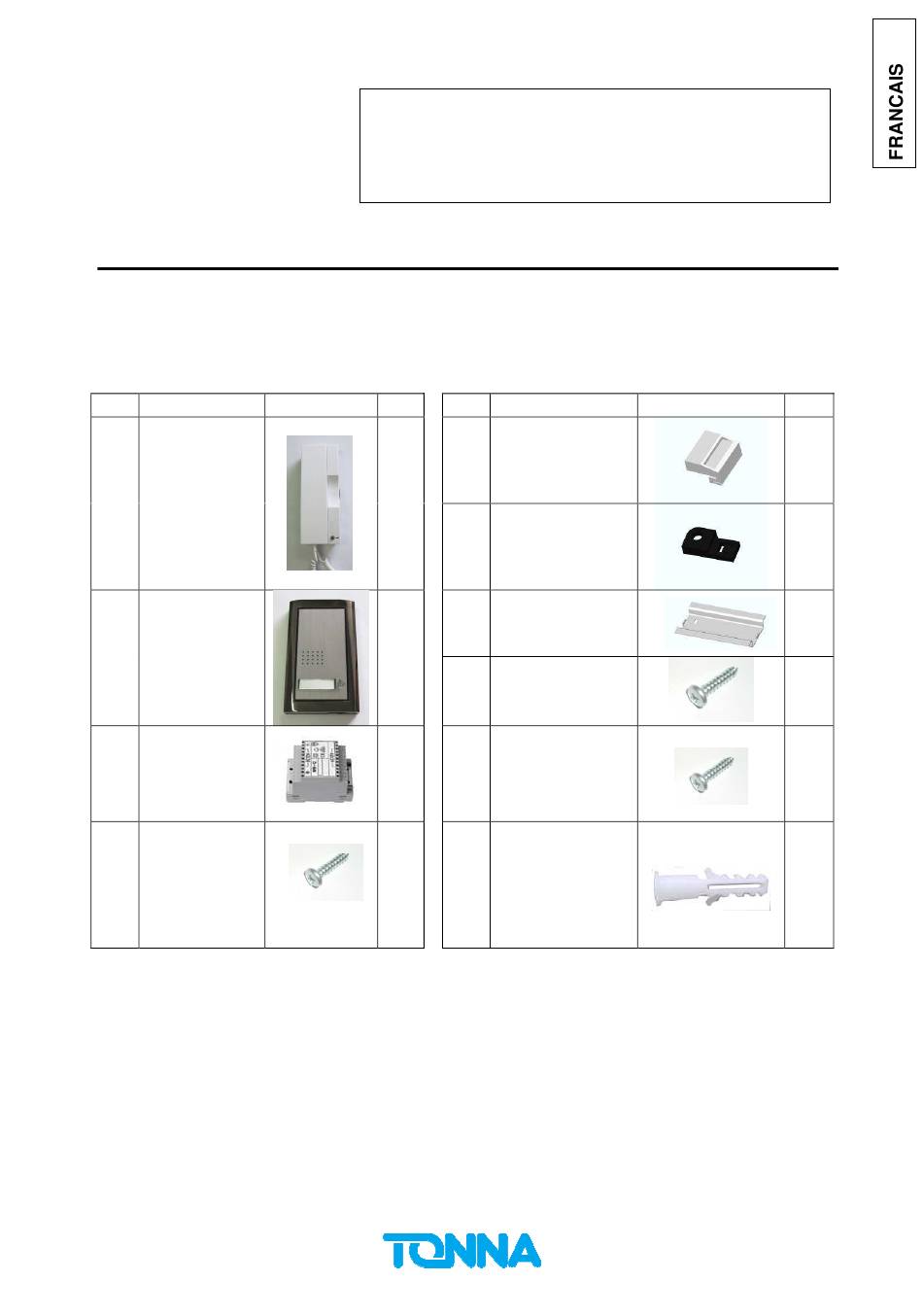

FUTURO Mode d’emploi et d’installation INTERPHONE AUDIO 2 fils Réf. 683100 Avant l’installation du kit, il est ipératif de lire le mode d’emploi et d’installation. Composition du kit : Ref Description Illustration Qté Description Illustration Qté Protection pour Combiné alimentation audio Réf.
Caractéristiques techniques : Combiné audio Réf. 683110 Spécifications Dimensions 80 ×220 ×45 mm (largeur x hauteur x épaisseur) Poids 0.4Kg Tension d’alimentation DC18V(alimentation externe au combiné) Consommation En veille : 1W En fonctionnement : MAX 3W Type de câblage 2 fils Transmission voix Full duplex Sonnerie d’appel...
Combiné audio 1.Ecouteur 2. Microphone 3. Ouverture de porte 4. Volume de sonnerie Platine de rue 1. Haut parleur 2. Porte-étiquette 3. Bouton d’appel 4. Microphone Version 1.0 Page 3...
Instructions de sécurité 1. Ne pas installer à proximité d’une source de radiation comme TV, Alimentation... 2. Ne pas démonter les modules. 3. Ne pas projeter de l’eau sur le combiné. Ne pas installer la platine de rue dans un lieu contenant des moisissures importantes.
Page 5
Instructions de montage Câblage : 1 combiné / 1 platine de rue avec commande d’une serrure électrique Combiné audio Réf. 683110 Alimentation Réf. 684885 Platine de rue Réf. 683120 Serrure électrique 12Vcc 500mA Distance et section de câble maxi. À utiliser entre la platine de rue et le moniteur : Jusqu’à...
Instructions de montage Câblage : 1 combiné / 1 platine de rue avec commande d’un contact libre de potentiel Combiné audio Réf. 683110 Alimentation Réf. 684885 Platine de rue Réf. 683120 Dry Contact Contact libre de potentiel Distance et section de câble maxi. À utiliser entre la platine de rue et le moniteur : Jusqu’à...
Page 7
A) Raccordement 1. Connecter 2 fils de la platine de rue au moniteur (L- sur L- et L+ sur L+) 2. Prenez soin d’insérer le câble avec une force modérée et avec un outil adéquat. B) Hauteur d’installation 1. Afin de favoriser l’accessibilité aux personnes handicapées, nous conseillons que le bouton d’appel de la platine soit situé...
Page 8
D) Installation de la platine de rue Mettre un nom sur la platine. 1) Retirer la fenêtre du porte-étiquette en pressant à gauche de celui-ci. (Fig. A & B) 2) L’étiquette est maintenant accessible. (Fig. C) 3) Indiquer le nom sur l’étiquette (Fig. C) 4) Replacer la fenêtre dans sont logement en la ramenant vers l’avant (Fig.
Fonctionnement Lors d’un appel : Quand le bouton d’appel de la platine est pressé, le moniteur sonne. Si vous désirez parler, prenez le combiné et parlez. 2. Ouverture de porte Pour ouvrir la porte, il suffit d’appuyer sur le bouton d’ouverture de porte lors de la communication.
Protection de l’environnement • Ne pas jeter dans une poubelle domestique. Utiliser la filière du recyclage. Version 1.0 Page 10...
Page 11
FUTURO Safety & Operating Instructions AUDIO DOOR PHONE Réf. 683100 These instructions are for your safety. Please read through them thoroughly before use and retain for future reference. Parts Supplied Fittings Supplied Description Illustration Ref Description Illustration Power cover Indoor Monitor 683110 Locker Bracket...
Technical Characteristics Specifications Indoor Unit(683110) Dimensions 80[W] ×220[H] ×45[D] mm Weight 0.4Kg Input Power DC18V(external Power Supply) Power Consumption Idle mode:1W Operating: MAX 3W Connecting System 2 wires Voice transmition Full duplex two way communication Chime sound 2stroke(When call button Call sound pushed) Indoor Unit to Entry Panel...
Indoor unit 1.Speaker 2. Microphone 3. Door Open button 4. Volume control Outdoor unit 1. Speaker 2. Name Plate 3. Call Button 4. Microphone Version 1.0 Page 13...
Safety Instructions 2. Do not install near other electronic equipment such as computers, TV, video recorder as this may cause radiated interference to the unit. 2. Do not disassemble the unit. 3. Do not spray water on the indoor unit. Do not keep the outdoor unit where it will be exposed to extreme moisture.
Page 15
Assembly instructions WIRING DIAGRAM WITH DOOR LOCK Handset Ref. 683110 Power supply Ref. 684885 Outdoor station Ref. 683120 Electric lock 12Vcc 500mA Version 1.0 Page 15...
Page 16
WIRING DIAGRAM WITH GATE DRY CONTACT Handset Ref. 683110 Power supply Ref. 684885 Outdoor station Ref. 683120 Dry Contact Dry contact for open gate Version 1.0 Page 16...
Page 17
C) Cable connection 3. Connect the indoor unit to the outdoor entry panel with the cable according to the wiring diagram below. 4. Carefully insert the wires to the terminal by pressing down the terminal flap with any small tool taking care that the 2 bare wires do not touch. B) Installation height 2.
Page 18
D) Installation of outdoor station Add the name to the nameplate 1) Remove the cover of the name plate by pressing the left hand side of the block. (Fig. A & B) 2) The name plate is now accessible (Fig. C) 3) Mark your name on the plate (Fig.
Page 19
Operating Instructions Activation of units When the call button on the outdoor entry panel unit is pressed, the indoor unit chime rings .If you want to talk,please lift the handset and talk. 3. Activation of “door open” button This feature can be utilized in two kinds of output terminals. The first is using the power supply 12volt 500mA output and the other is by dry contact output.
Care and Maintenance Do not store in hot or cold areas. Extreme hot or cold temperatures can shorten the life of electronic devices and can distort/melt certain plastics or may cause malfunction. Dropping can result in failure to operate. Circuit boards can crack and may not survive the impact.
