Summary of Contents for Industrial Products Prime Design FBM-1051

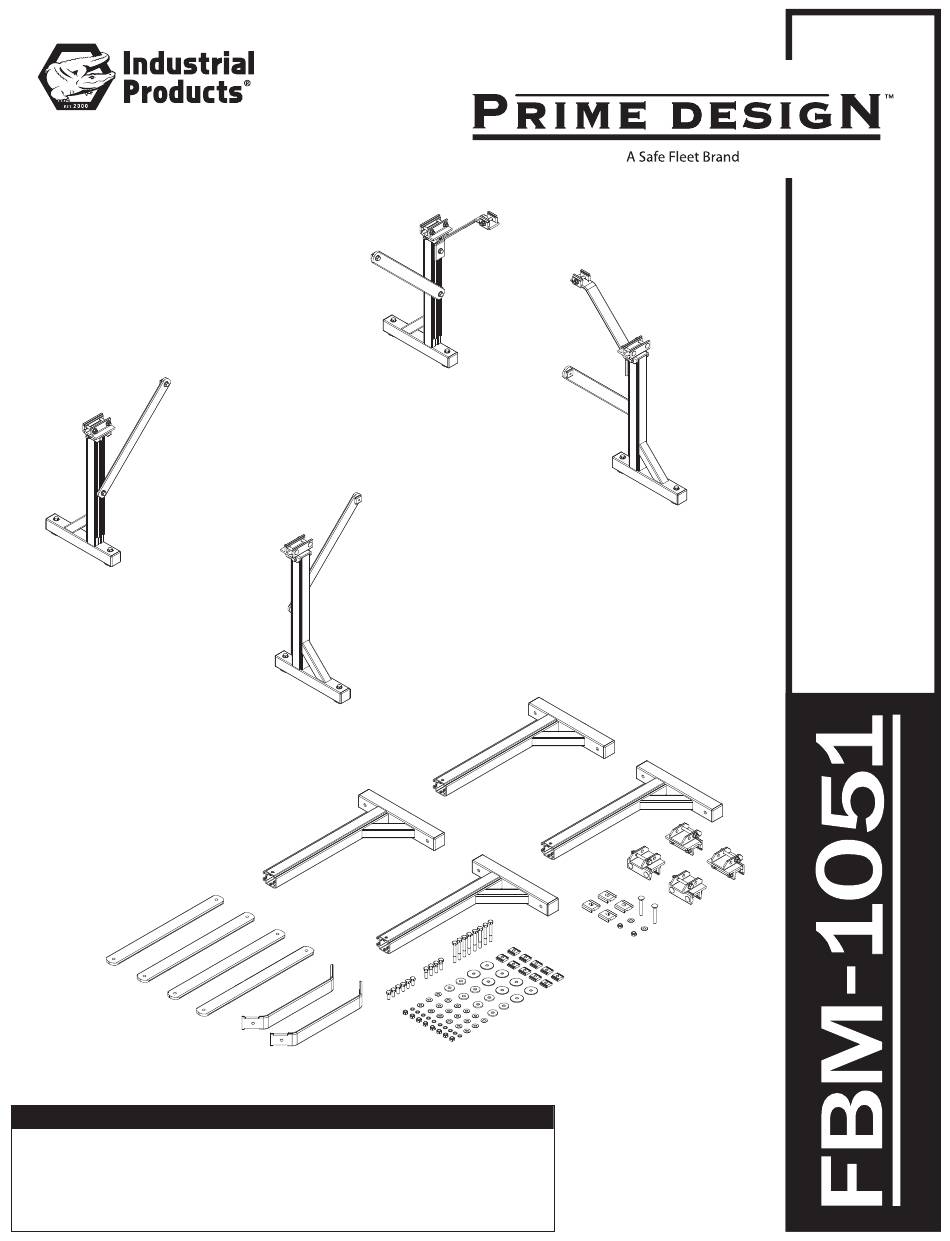

- Page 1 OTC Base Mounting System Pages 2-3 Packaging Contents Pages 4 FBM Mounting Pages 5-6 Mounting to OTC Channels Pages 7-8 Installing Mount Braces...
-
Page 2: Contents Overview
CONTENTS OVERVIEW Base Mounting Leg ..........(Qty 4) Mounting Leg Connector Assembly ..... (Qty 4) Crossbar Mounting Brace ........(Qty 2) Channel Mounting Brace ........(Qty 4) www.industrialproducts.com | sales@industrialproducts.com | 888-243-3339 PRIME DESIGN, A SAFE FLEET BRAND Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 Email: info@primedesign.net Website: www.primedesign.net TM &... - Page 3 HKT-0188 Crossbar Mounting Connector Hardware Kit Mounting Connector (4X) M8 x 60MM Carriage Bolt (2X) M8 Lock Nut (2X) " Flat Washer (2X) HKT-8061 FBM Hardware Kit M8 x 65MM (8X) M8 x 20MM (6X) M8 x 30MM (4X) Rubber Washer Fender Washer (8X) (8X)
- Page 4 9’ BODY CONFIGURATIONS INSTALLING MOUNTING LEGS 8’ BODY CONFIGURATIONS NOTE: Recommended installation distances are as shown. NOTE: Recommended installation distances are as shown. *Ensure clearance for fastening hardware under the front and rear mounting surfaces of your truck box. *Ensure clearance for fastening hardware under Front the front and rear mounting surfaces of your truck box.
- Page 5 INSTALLING MOUNTING LEGS Re-install Mounting Leg Connector Hardware as shown. Install Mounting Leg Connectors onto the Base Mounting Legs as shown. Remove and retain Hardware Align outer Connector hole with the bolt hole on the Mounting Leg for Hardware installation. www.industrialproducts.com | sales@industrialproducts.com | 888-243-3339 PRIME DESIGN, A SAFE FLEET BRAND Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 Email: info@primedesign.net Website: www.primedesign.net TM &...
- Page 6 MOUNTING TO OTC CHANNELS NOTE: Channels and Crossbars in this Overview are shown by Service Body size, and Crossbar preferences. MOUNTING TO CHANNELS Mounts must be installed directly under the the rear and mid crossbars Loosen all indicated Nuts to install the Crossbars.
- Page 7 REAR MOUNTING FOOT MID MOUNTING FOOT NUT BRACKETS NUT BRACKETS Install one M8 Nut Bracket in each rear Install two M8 Nut Brackets in each mid Mounting Foot channel as shown. Mounting Foot channel as shown. MID CROSSBAR BRACE INSTALLATION Install the mid Crossbar Braces as shown.
- Page 8 REAR/MID CROSSBAR–CHANNEL Install the mid Crossbar Brace Hardware into the top Nut Bracket as shown. Torque all Hardware to 90 in-lbs. BRACE INSTALLATION M8 x 20MM Lock Washer Flat Washer M8 x 20MM Lock Washer Keep Nut Bracket Flat Washer loose for installation into inner Channel sides Install Braces into the inside of the Channels as shown.
