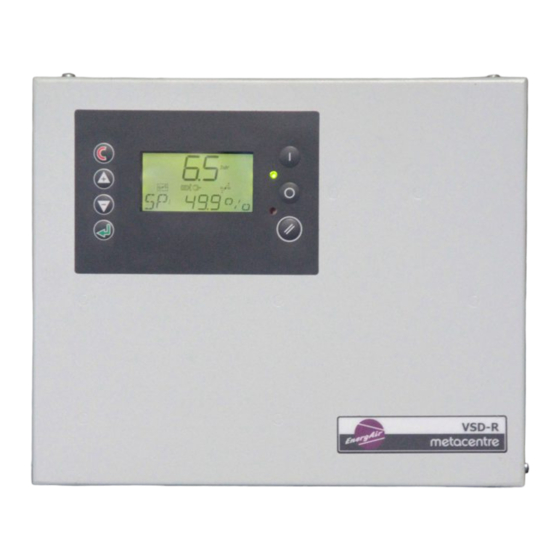

MANY09117A.GB – VSD-R 4-20mA Box User Manual
bar
TM
VSD-R
4-20mA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the metacentre VSD-R and is the answer not in the manual?

Questions and answers

Summary of Contents for EnergAir metacentre VSD-R

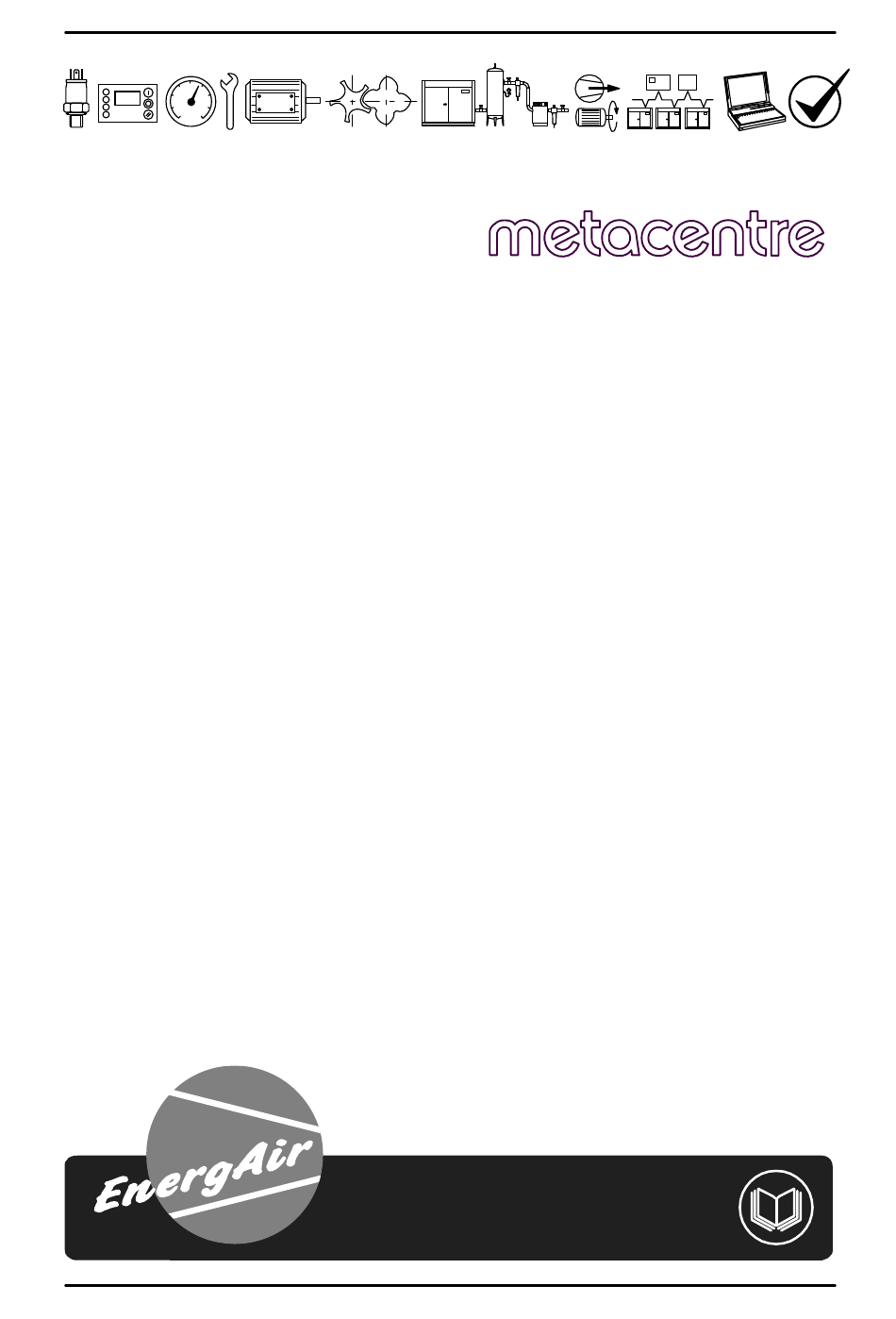

  • Page 1 MANY09117A.GB – VSD-R 4-20mA Box User Manual VSD-R 4-20mA...

  • Page 2: Health And Safety

    Metacentre VSD-R 4-20mA Box Index 1.0 Introduction VSD/VFD Basic Requirements Health and Safety Compressor Basic Requirements Refer to Metacentre Safety Manual General Operation Menu Navigation Menu Map Menu Item Settings 3.0 Operation User Interface Display Status Symbols Indicators Operation User Display Menu Items...
  • Page 3 User Manual 1. INTRODUCTION 1.2 Compressor Basic Requirements: Ensure all basic requirements are meet prior The VSD-R 4-20mA Box is a specialised air to installation. Air compressors that fail to meet compressor supervisory and control unit all the basic requirements are not suitable for designed to function in cooperation with a variable speed conversion using this product.
  • Page 4 Metacentre VSD-R 4-20mA Box 1.3 General Operation Any star/delta timing implemented in the compressor controller can remain; the main The VSD-R Box, in conjunction with a motor will use this time to accelerate to compatible VSD/VFD panel, will control the operational speed.

  • Page 5: Menu Navigation

    User Manual Access Code: 2. MENU NAVIGATION Access to page list displays higher than page Display Item Structure: ‘P00’ is restricted by access code. To access menu mode pages press UP and DOWN All value, parameter or option selection together, an access code entry display is displays are grouped into menu lists.
  • Page 6 Metacentre VSD-R 4-20mA Box Press ESCAPE at any time in menu mode to step backwards one stage in the navigation process. Pressing ESCAPE when the page number is flashing will exit menu mode and return the display to normal operational mode;...
  • Page 7 User Manual 2.1 Menu Map 2.2 Menu Item Settings 5.6.1 Operating Pressure Set Points MENU P00 - User C> Information Pu – Unload pressure set point Percent Speed PL – Load pressure set point Motor Temperature (PL = VSD target pressure) Second Temperature USER ACCESS CODE 5.6.2...

  • Page 8: Operation

    Metacentre VSD-R 4-20mA Box 3.2 Status Symbols 3. OPERATION System Management Unit (remote pressure control) Flashing - system management unit ‘off’ or RS485 communications disrupted (local pressure control) Compressor Running (i-PCB) Waiting for compressor to Run Compressor Loaded (i-PCB) Waiting for compressor to Load Service Maintenance function active 3.1 User Interface...
  • Page 9 User Manual 3.4 Operation After a period of time the User menu item display will default back to the ‘SP’ percent The VSD-R Box and VSD Panel operate in speed item. To lock the display on a selected conjunction with the compressor; all units must menu item press ENTER;...
  • Page 10 Metacentre VSD-R 4-20mA Box 3.7 VSD-R Box Status (C>): For Example: The VSD-R Box User menu ‘Status’ display Network Address = 1 (Compressor 1) item (C>) continuously shows the network State Block No. = 4 (Compressor Ready) address and the VSD-R Box status block number.
  • Page 11 User Manual 3.8 VSD-R Box Fault Codes Shutdown: 0010E Emergency Stop (option) 0040E Frequency Inverter Drive, VSD, Fault Examine the drive unit display for fault type/description – refer to the drive unit manual. 0080E Contactor feedback fault (CF) 0115E 4-20mA Delivery P. Sensor Fault 0125E Motor temperature sensor fault 0135E 2 Temperature sensor fault...
  • Page 12 Metacentre VSD-R 4-20mA Box 4.0 Parts List VSD-R ‘mA’ Box Item Part No. Description Y07ENER24.00 Kit, VSD-R 4-20mA Y07ENER26.00 Unit, VSD-R 4-20mA Y07ENER14.00 Manual, User CD OVLY0502.00 Label, EnergAir Y07CMC5.00 Controller, S1 Y05CM31.00 Unit, XPM-TAC24 KPY05AC.01 PCB, Terminal VSD Y07CM49.00 Gland, Set - Pg13.5...

  • Page 13: Installation Diagrams

    User Manual 6.0 Installation Diagrams 115/230Vac 3ph + E 50/60Hz, 2A 400Vac (+-10%) 50/60Hz Multi485 VSD-R 4-20mA /min FAD (Bar.g) - 1 i-PCB > 10m 2.5mm 4-30 37-90 110-315 VFD must be rated suitable for actual compressor main motor full load current; do VFD Rating: not rate in accordance with nominal Measure actual main motor full load current (FLC),...
  • Page 14 Metacentre VSD-R 4-20mA Box Frequency Inverter Drive Connections: 2 wire, twis ted pair, earth s hielded 0.35mm - 1.0mm 6 wire, earth s hielded 0.75mm - 1.5mm CE: 240V UL: 115V Terminal PCB 4A max Drive Fault 10m (33ft) max...
  • Page 15 User Manual Compressor Connections: 2 wire, twis ted pair, earth s hielded 0.35mm - 1.0mm 6 wire, earth s hielded 0.75mm - 1.5mm CE: 240V UL: 115V Terminal PCB 4A max Drive Fault VSD Drive Stop/Run T2 KTY (option) Temperature Motor KTY Temperature 4-20mA...

  • Page 16: Wiring Diagram

    Metacentre VSD-R 4-20mA Box 7.0 Wiring Diagram C023 Drive Fault VSD Drive Stop/Run T2 KTY (option) C035 +VDC Temperature C036 C037 Motor KTY A-GND Temperature C038 C039 4-20mA A-GND C040 Pressure Sensor C034 A-GND 4-20mA C033 Speed A-GND Control C032...
  • Page 17 User Manual XPM-TAC24 BLUE BLACK BROWN ORANGE WHITE GREEN VIOLET T3.15A T1.6A T1.6A T1.0A VOLTAGE SELECT 230V +-10% 230V 115V 115V +-10% T1.0A 5x20mm 24Vac/1 24Vac/2 N L E isolated earthed Module – Relay, 24Vac Page 16...
